SmallHD OLED 16

by SmallHD

Verfügbarkeit: 14-20 days delivery

SKU

16-1601

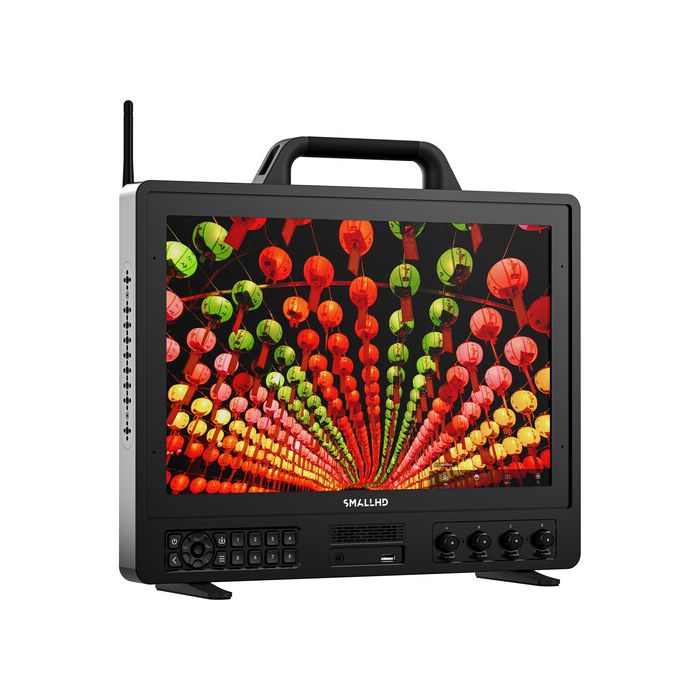

Engineered for high-end cinematography use, the OLED 16 UHD 4K 12G-SDI Monitor from SmallHD provides compact reference monitoring for color-critical production and client-facing reviews. Constructed with a 16" OLED display, this monitor provides a 3840 x 2160 native resolution, 1,500,000:1 contrast ratio, 10-bit color processing, and four 12G-SDI inputs and outputs.

7.243,75 € 5.795,00 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Neu

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Paket beinhaltet

SmallHD OLED 16 UHD 4K 12G-SDI Monitor
Power Supply
2 x Support Foot

Details

Lightweight, rugged, and perfectly sized for streamlined DIT and DP workflows, OLED 16 gives you infinite contrast, true blacks, and precise color reproduction with zero haloing. It comes equipped with professional-grade I/O, versatile mounting points, integrated WiFi, and four new multi-function dials to customize your PageOS workflow.

PageOS
The Ultimate Monitoring Toolkit
OLED 16 comes loaded with PageOS, an award-winning, one-of-a-kind, page-based, software toolkit with a streamlined interface, intuitive customization options for color, exposure, LUTs, and more.

A More Intuitive Color Pipe
Easily configure each of the five independent video inputs on 4K production monitors with a new output display configuration.

Downstream LUTs
Instantly send graded looks to downstream devices without extra boxes or additional gear, ensuring a consistent look across every display on set.

Fleet Control
Control all on-set SmallHD monitors from one app via Ethernet or WiFi. Match settings, manage signals and feeds, adjust LUTs, Color Pipes, and more.

Updated EL Zone
Developed by Ed Lachman, ASC, this intuitive stop-based exposure tool works like a virtual spot meter, replacing IRE exposure values with stops.

Livegrade Integration
Pomfort Livegrade is now an integrated plug-in, enabling colorists and DITs to transform their reference monitor into
a dual-purpose color grading tool.

Integrated Calibration
SmallHD monitors integrate directly with Calman™ to deliver precise color accuracy across production and post workflows.

Production-Ready Hardware
The OLED Series features a lightweight Unibody Smart Chassis with field-tested durability, professional-grade I/O options, customizable multi-function dials, and integrated mounting points for versatile accessory configurations.

Optimal Imaging

The OLED 16 monitor delivers true blacks, exceptional shadow detail, and optimal color precision for reliable exposure evaluation and seamless image matching when using multiple monitors in your workflow.

12G-SDI and HDMI Interface

Equipped with four 12G-SDI inputs and outputs, the OLED 16 links easily to pro video components like wireless receivers and additional monitors. HDMI input and output provide further monitoring connections.

Rugged Form

The OLED 16's unibody chassis has a rugged build that is ideal for daily use on a DIT cart, video village, or other production setup, whether in the field or studio. Physical features include a smart rail system and tactile front control buttons for quick setup and adjustments. Support feet and an integrated top handle provide easy cart or tabletop setup.

Mehr Informationen

Display
Panel Type	OLED
Display Size	16.00" / 40.6 cm
Native Resolution	3840 x 2160
Aspect Ratio	19:9
Touchscreen	No
Contrast Ratio	Near Infinite (Black Pixels Emit No Light)
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	Yes
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Image Rotate, Pixel Zoom, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O	4x BNC (12G-SDI) Input
	4x BNC (12G-SDI) Output
	1x HDMI Input
	1x HDMI Output
Embedded Audio	SDI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Power I/O	1x XLR 4-Pin Input
	2x LEMO 2-Pin Output
Other I/O	1x USB-B
	1x RJ45 (LAN)
	1x RJ45 (GPI)
Media/Memory Card Slot	No
Wireless
Wireless	No
Wi-Fi	Yes
Bluetooth	Yes
Mobile App Compatible	Yes: Android & iOS
Format Support
Video Format	SDI (10-Bit)
	UHD 4K
Power
Battery	No
