SmallHD Ultra 10 Bolt 6 RX 750 V-Mount Kit

by SmallHD

Verfügbarkeit: 7-10 days delivery

SKU

16-1002-VM

Integrate a large, ultra-bright monitor into your production with this ULTRA 10 Bolt 6 RX 750 Monitor from SmallHD.

7.245,00 € 5.796,00 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Neu

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Paket beinhaltet

SmallHD ULTRA 10 Bolt 6 RX 750 Monitor (V-Mount)
SmallHD D-Tap to 2-Pin Power Cable (36")
SmallHD Monitor Handles and Neck Strap
SmallHD Ultra Clear Screen Protector for Ultra 10
SmallHD Color Band Kit for Ultra 7 Bolt 6 RX (Multiple Colors)
SmallHD Microfiber Cleaning Cloth
V-Mount Battery Plate
SD Card (8GB)

Details

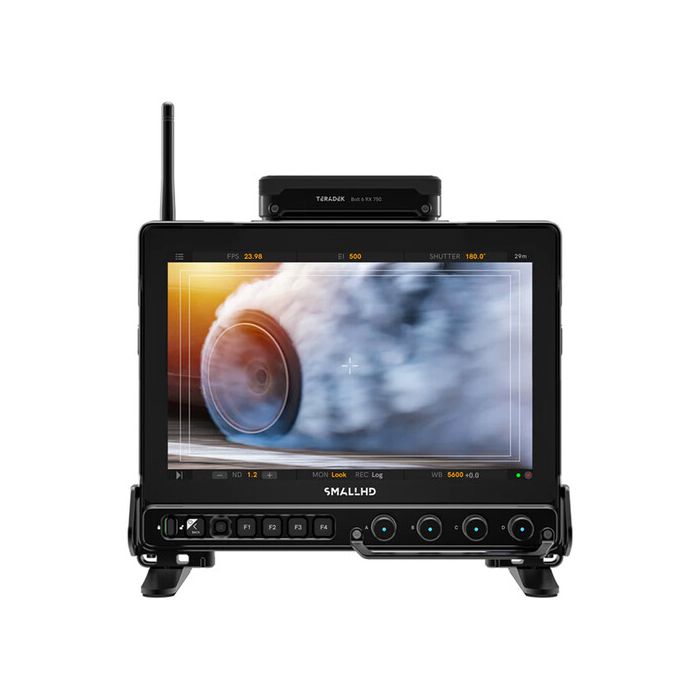

Integrate a large, ultra-bright monitor into your production with this ULTRA 10 Bolt 6 RX 750 Monitor from SmallHD. Boasting a 2000 cd/m² display for viewing in just about any indoor or outdoor environment, the 10" monitor features a 1920 x 1200 touchscreen QD-LCD, an integrated Bolt 6 receiver with a wireless range up to 750', HDMI 2.0, and 6G-SDI inputs/outputs supporting up to 4K30 resolutions. Easily control ARRI, Sony, and RED cinema cameras from the monitor thanks to the 5-pin USB and Ethernet control ports (requires separately available licenses and cables). The device powers via 2-pin LEMO ports using an optional battery attached to the integrated V-mount battery plate.

QD-LED Edge-Lit LCD Panel

The ULTRA 10 features an edge-lit QD-LED panel stack that diffuses and focuses the light through a quantum-dot film, ensuring high brightness, excellent image fidelity, color accuracy, and color uniformity. It's perfect for focus pullers, pursuit vehicles, director's cages, DITs, multicamera studios, and anyone who desires maximum flexibility from their monitor.

All-Weather Design

Built into a rugged, shock-resistant aluminum chassis designed to withstand production rigors, the ULTRA 10 is designated with an IP54 rating, protecting the display against harmful dust and water spray from all directions. All components and ports are fully sealed, it is impact resistant, and it can operate in extreme temperatures.

PageOS

PageOS is an advanced, page-based software toolset with an intuitive UI/UX that gives you full control over color, exposure, camera, LUTs, and more.

Built-In Wireless Support

The monitor features built-in wireless receiver technology compatible with the integrated Teradek Bolt 6 receiver.

Multifunction Controls

Simultaneously view and adjust crucial camera-control functions and PageOS tools with a camera-control interface anchored to every page. Four customizable encoder knobs let you change PageOS tools and settings on the fly with capacitive-touch, long-push, short-push, and rotary functionality. Assign workflow shortcuts to the custom-function buttons for software tools, switch inputs, adjust display brightness, and more.

Lens Control Overlays

With Teradek RT integration, view critical lens data on your monitor. Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale.

Multiview Functionality

View two camera feeds and use multiple tools pages all on screen at the same time, side by side.

Long-Range Signal Transmission

The ULTRA 10 Bolt 6 RX 750 integrates a Bolt 6 Series receiver, allowing you to wirelessly send the image from your camera up to 750' away.

Mehr Informationen

Display
Panel Type	IPS-Type LCD
Display Size	10.1" / 25.7 cm
Native Resolution	1920 x 1200
Aspect Ratio	16:10
Touchscreen	Yes
Maximum Brightness	2000 nits / cd/m2
Contrast Ratio	1000:01:00
Color Support	16.7 Million Colors (8-Bit)
HDR Support	Yes
LUT Support	Yes
Image Controls	False Color, Focus Assist, Focus Peaking, Histogram, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O	1x BNC (6G-SDI) Input/Output
	1x BNC (6G-SDI) Input
	1x HDMI 1.4 Output
	1x HDMI 1.4 Output
Embedded Audio	HDMI/SDI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x LEMO 2-Pin Input
	1x LEMO 2-Pin Output
Other I/O	1x RJ45 (GPI)
	1x RJ45 (10/100 Mb/s Ethernet)
	1x LEMO 5-Pin USB (Camera Control)
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]
Encryption	Yes
Wireless
Wireless Range	750' / 228.6 m
Wi-Fi	Unspecified Version
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	SDI
	UHD 4K: 30/29.97/25/24/23.98
	DCI 2K: 60/59.94/50/48/47.95
	1080p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	1080PsF: 30/29.97/25/24/23.98
	720p: 60/59.94/50/30/29.97/25/24/23.98
	576p: 50
	576i: 50
	480p: 60/59.94
	480i: 60/59.94
	HDMI
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 200/120/100/60/59.94/50/48/47.95/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 200/120/100/60/59.94/50/30/29.97/25/24/23.98
	576p: 50
	576i: 50
	480p: 60/59.94
	480i: 60/59.94
Video Signal Conversion	HDMI to SDI

	HDMI to SDI
Power
Input Power	10 to 34 VDC at 2.5
Battery	1x V-Mount on Fixed Plate
Mounting
Tripod/Accessory Mounting	Left
	1x Anti-Twist 1/4"-20 Female
	Right
	1x Anti-Twist 1/4"-20 Female
General
Environmental Resistance	Weather-Resistant (IP54)
