Sommer Cable SC-Orbit 240 MKII, HighEnd; 1 x 2 x 4,00 mm
by Sommer Cable- Absolutely neutral transmission quality due to fine, tightly tranded copper wires
- Highly flexible and easy to reel due to rubberlike PVC jacket
- Noble finish with a black, transparent outer jacket
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet

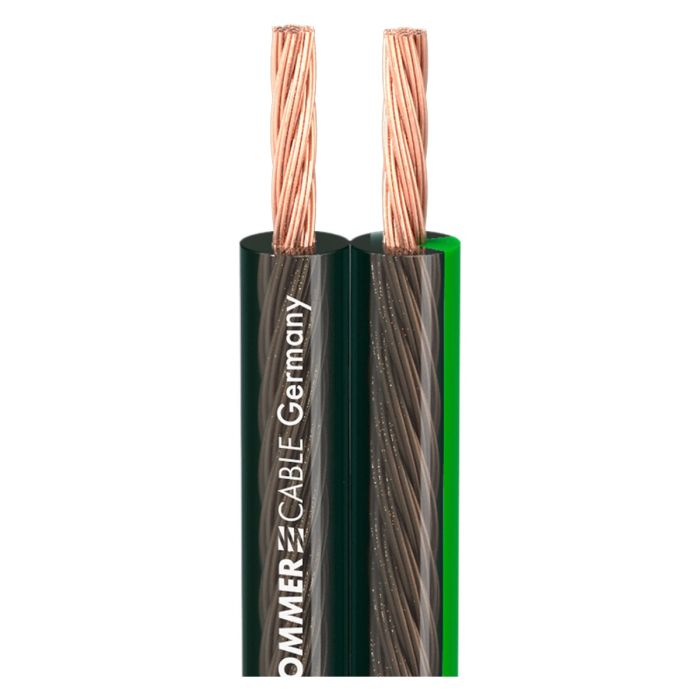

SC-Orbit 240 MKII, HighEnd
Speaker Cable
You can easily hear the grass grow...
with our SC-Orbit 240 MKII, HighEnd. If you care for true, natural sound and dynamics, then the SC-Orbit 240 MKII, HighEnd is your cable. At the end of the audio signal path is the loudspeaker, but just how the music gets there is nowhere near bananas! You already have the good speaker, now all you need is the cable – and the difference is audible!
Here too we offer top quality with an attractive look, because the cables are often laid visibly – or invisibly, therefore as flat as possible is the name of the game. Due to a very tight litz stranding, the copper strand has the necessary surface for a clean transmission of the treble range. The individual wires are reverse-braided. So this cable will always return to its original position, even after extreme twisting.
Advantages:
Absolutely neutral transmission quality due to fine, tightly tranded copper wires
Highly flexible and easy to reel due to rubberlike PVC jacket
Noble finish with a black, transparent outer jacket
Very low impedance values due to special litz stranding
Application:
Connection to HiFi-High End Speaker Systems
Interior wiring of HiFi Loudspeakers and PA Systems
For fixed installation
Car hifi connection
| Article number | 440-0151 |
| Name | SC-Orbit 240 MKII, HighEnd |
| EAN | 4,05E+12 |
| Properties | Analog |
| Properties | OFC oxygen free copper |
| Application area | Installation |
| Application area | Studio / Broadcast |
| Application | Speaker Cable |
| Colour | black |
| Colour detailed | black transparent |
| Construction | 2LIY4,00mm² |
| Jacket material | PVC |
| Jacket Ø [mm] | 0 |
| Number of Channels (audio) | 1 |
| Inner conductor (audio) | 2 |
| Inner conductor (audio) [mm²] | 4 |
| Inner conductor Ø (audio) [mm] | 2,26 |
| AWG (audio) | 11 |
| Copper strands (audio) | 1036 |
| Copper strand Ø (audio) [mm] | 0,07 |
| Weight per 1 m [g] | 121 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0,21 |
| Style variant | twin |
| Packing | 100 m spool |
| Temperature min. [°C] | -30 |
| Temperature max. [°C] | 70 |
| Width [mm] | 12 |
| Height [mm] | 5,9 |
| Capac. cond./cond. per 1 m (audio) [pF] | 55 |
| Capacity wire/wire at 1 ft. (audio) [pF] | 16,764 |
| Insulation resist. per 1 km [GΩ] | 0,01 |
| Insulation resist. per 1000 feet [GΩ] | 0,003 |
| Insulation resist. per 1 km (audio) [GΩ] | 0,01 |
| Insulation resist. per 1000 feet (audio) [GΩ] | 0,003 |
| Conductor resistance per 1 km [Ω] | 4,5 |
| Conductor resistance per 1000 ft. [Ω] | 1,3716 |
| BPVo-Euroclass | Fca |
