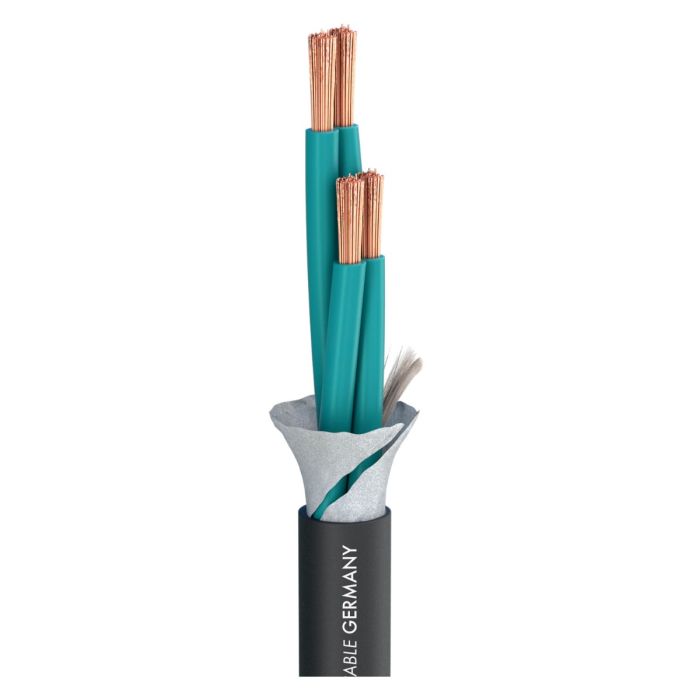

Sommer Cable Speaker Cable Elephant Robust SPM440, 4 x 4,00 mm2, PVC d=11,00 mm
by Sommer Cable- Loss-free transmission due to the special litz stranding technology
- Highly flexible and stage-proof, easy to reel
- Compatible with CA-COM 8-pin, NL8, LKS19, and EP5 connectors
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
Elephant Robust SPM440
Speaker Cable
Especially for the tough stage routine...
We have reworked the jacket stability of the 4.0 mm² (0.006 sq in.) ELEPHANT series. In addition it is flexible, robust, tread-resistant, easy to reel and always reusable, the jacket surface is now smoother and therefore easier to clean. Especially for the common speaker multipins (CA-COM 8-pole, NL8, LKS19, EP5) we have adapted the outer diameters so that they can be assembled with relatively little effort.
Advantages:
Loss-free transmission due to the special litz stranding technology
Highly flexible and stage-proof, easy to reel
Compatible with CA-COM 8-pin, NL8, LKS19, and EP5 connectors
Easy to use due to well-insulated, numbered wires
Application:
Professional PA systems
|
Article number
|
490-0051-440 |
| Name | Elephant Robust SPM440 |
| EAN | 4,05E+12 |
| Properties | OFC oxygen free copper |
| Properties | Analog |
| Application area | Installation |
| Application area | Studio / Broadcast |
| Application area | Mobile outdoor / indoor |
| Application area | ELA 100 V |
| Application area | Stage / live |
| Application | Speaker Cable |
| Colour | black |
| Colour detailed | black |
| Construction | (4LIY4,0mm²)Y |
| Jacket material | PVC |
| Jacket Ø [mm] | 11 |
| Number of Channels (audio) | 1 |
| Inner conductor (audio) | 4 |
| Inner conductor (audio) [mm²] | 4 |
| Inner conductor Ø (audio) [mm] | 2,26 |
| AWG (audio) | 11 |
| Copper strands (audio) | 224 |
| Copper strand Ø (audio) [mm] | 0,15 |
| Conductor insulation Ø [mm] | 3,75 |
| Weight per 1 m [g] | 246 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0,85 |
| Style variant | round |
| Packing | bulk stock |
| Temperature min. [°C] | -25 |
| Temperature max. [°C] | 70 |
| Width [mm] | 11 |
| Height [mm] | 11 |
| Insulation resist. per 1 km [GΩ] | 0,005 |
| Insulation resist. per 1000 feet [GΩ] | 0,0015 |
| Insulation resist. per 1 km (audio) [GΩ] | 0,005 |
| Insulation resist. per 1000 feet (audio) [GΩ] | 0,0015 |
| Conductor resistance per 1 km [Ω] | 4,5 |
| Conductor resistance per 1000 ft. [Ω] | 1,3716 |
| Test voltage [V] | 2000 |
| BPVo-Euroclass | Fca |
|
