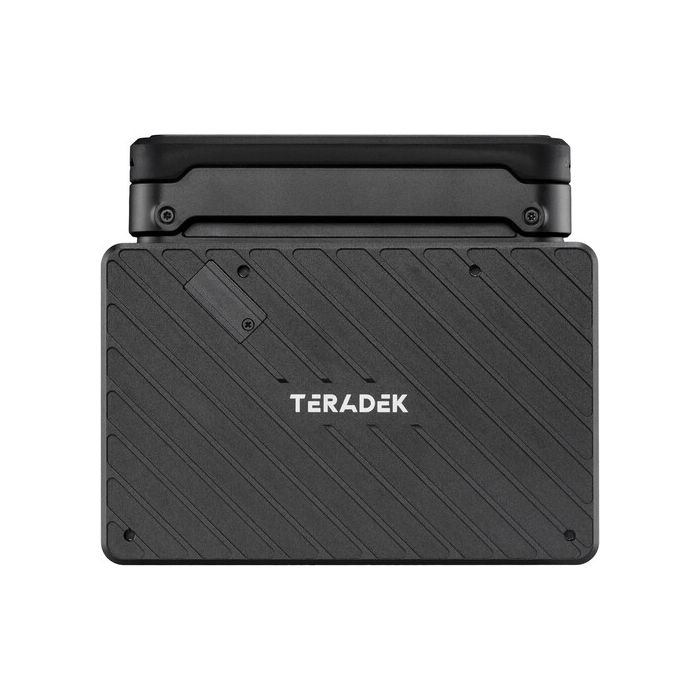

Teradek Bolt 6 LT 750 Int Ant RX
by TeradekBolt 6 LT RX is a wireless video receiver that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- 1 x Bolt 6 LT 750 RX Internal Antenna
- 1 x 2pin to P-Tap Cable, 18in
- 1 x 2pin to AC Adapter 18W, 6ft
- 1 x Ultra Thin HDMI Male to Male Cable, 18in
- 1 x SDI Cable, 10in
- 1 x USB-C 2.0 Male to Male, 1m
Bolt 6 LT RX is a wireless video receiver that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 LT RX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.
The Receiver is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).
The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.
| Key Specs | |
| Video I/O | 1x HDMI 1.4b Output |
| 1x BNC (3G-SDI) Output | |
| Embedded Audio | HDMI: 2-Channel |
| SDI: 2-Channel | |
| Latency | < 0.01 ms |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 480p: 60/59.94 | |
| 576i: 60 | |
| 480i: 59.94 | |
| SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 59.94 | |
| Battery | Interchangeable Mount (No Plate Included) |
| Power Consumption | 11 W |
| Inputs/Outputs | |
| Antenna I/O | 5x RP-SMA Female |
| Video I/O | 1x HDMI 1.4b Output |
| 1x BNC (3G-SDI) Output | |
| Embedded Audio | HDMI: 2-Channel |
| SDI: 2-Channel | |
| Audio I/O | No |
| Power I/O | 1x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1x Micro-USB Input |
| Encryption | Yes, 256-Bit AES |
| Wireless | |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies |
| US: 5.94 to 6.42 GHz | |
| US: 5.19 to 5.23 GHz | |
| US: 5.75 to 5.79 GHz | |
| DFS Frequencies | |
| US: 5.27 to 5.67 GHz | |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Mobile App Compatible | Yes: Android & iOS |
| App Name: Bolt App | |
| Cellular Support | No |
| Format Support | |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 480p: 60/59.94 | |
| 576i: 60 | |
| 480i: 59.94 | |
| SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 59.94 | |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Power | |
| Input Power | 6 to 28 VDC |
| Battery | Interchangeable Mount (No Plate Included) |
| Power Consumption | 11 W |
| Mounting | |
| Tripod/Accessory Mounting | Bottom |
| 1x 1/4"-20 Female | |
| General | |
| Status Display | Yes |
| Environmental Resistance | No |
| Operating Conditions | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | 4.8 x 3.7 x 0.9" / 122 x 94 x 22 mm |
| Weight | 10.30 oz / 292.00 g |
| Packaging Info | |
| Package Weight | 3.43 lb |
| Box Dimensions (LxWxH) | 16.6 x 8.4 x 3.7" |
