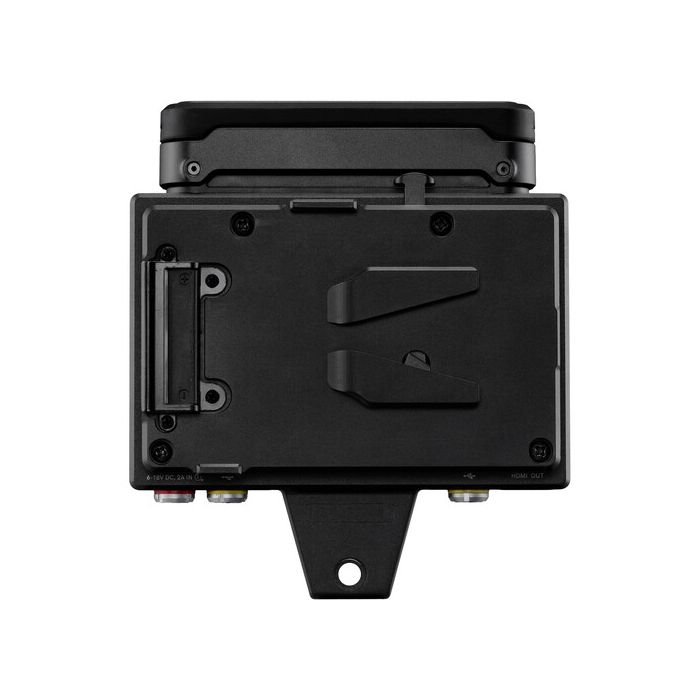

Teradek Bolt 6 Monitor Module 750 Int Ant RX V Mount
by TeradekBolt 6 RX Monitor Module is a wireless video receiver that supports up to 4K30 10-bit 422 HDR video. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- 1 x Bolt 6 Monitor Module 750 RX V-Mount
- 1 x HDMI Adapter Bolt 4K RX Monitor Module
Bolt 6 RX Monitor Module is a wireless video receiver that supports up to 4K30 10-bit 422 HDR video. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
The Bolt 6 Receiver Monitor Module easily attaches to the back of SmallHD’s Cine 7, 702 Touch, and Indie 7 Smart Monitors. With this direct integration, the Bolt 6 and Smart monitor can share power and video, allowing you to reduce the amount of cables on set. With the Bolt 6 Monitor Module, Wireless Camera-Control is also possible because it integrates directly into SmallHD Smart Monitors.
Bolt 6 Monitor Module RX offers two line-of-sight options: 750 ft. and 1500 ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.
The 750 model includes V (vertical) Antennas. 1500 model includes both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.
| Key Specs | |
| Video I/O | 2x HDMI 1.4b Output |
| Embedded Audio | HDMI: 2-Channel |
| Latency | < 0.01 ms |
| Video Format | HDMI/Wireless |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Battery | 1x V-Mount on Fixed Plate |
| Power Consumption | 7 W |
| Inputs/Outputs | |
| Antenna I/O | No |
| Video I/O | 2x HDMI 1.4b Output |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | No |
| Power I/O | 1x LEMO 2-Pin (18 VDC) Input |
| Other I/O | 2x LEMO 5-Pin 2.0 Output |
| Encryption | Yes, 256-Bit AES |
| Wireless | |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| # of Channels | 24 |
| Frequency Range | DFS Frequencies |
| US: 5.27 to 5.67 GHz | |
| Non-DFS Frequencies | |
| US: 5.19 to 5.23 GHz | |
| US: 5.75 to 5.79 GHz | |
| US: 5.94 to 6.42 GHz | |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Bluetooth | 5.0 |
| Mobile App Compatible | Yes: Android & iOS |
| App Name: Bolt App | |
| Cellular Support | No |
| Format Support | |
| Video Format | HDMI/Wireless |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Power | |
| Input Power | 6 to 18 VDC |
| Battery |
1x V-Mount on Fixed Plate |
| Power Consumption | 7 W |
| Mounting | |
| Tripod/Accessory Mounting | 1x 1/4"-20 Female |
| 1x 3/8"-16 Female | |
| General | |
| Environmental Resistance | No |
| Operating Conditions | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Plastic |
| Dimensions | 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm |
| Weight | 10.30 oz / 292.00 g |
| Packaging Info | |
| Package Weight | 3.04 lb |
| Box Dimensions (LxWxH) | 16.9 x 9.1 x 3.5" |
