Teradek Bolt-On Monitor Hinge Cube
by TeradekThe Bolt-On Monitor Hinge Cube was designed to securely mount monitors to the CTRL.5 controller via ¼”-20 mounting points.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- 1x Bolt-On Monitor Hinge Cube

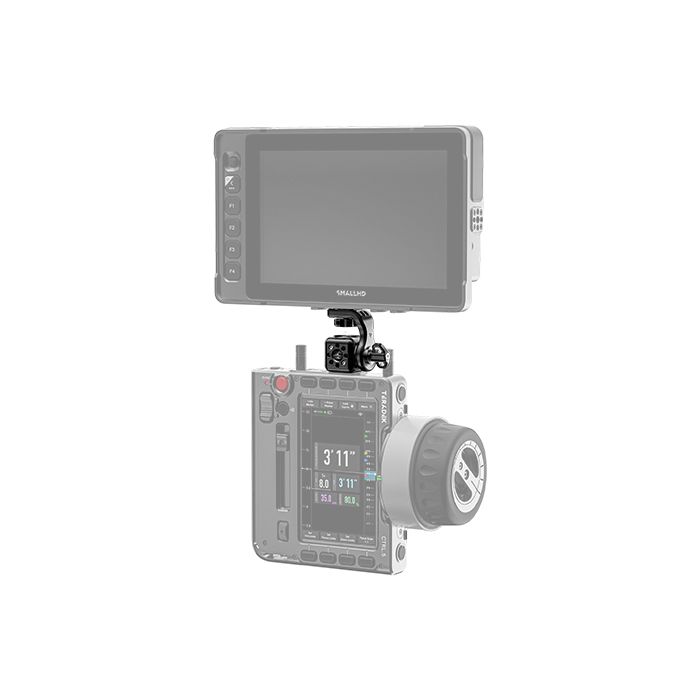

The Bolt-On Monitor Hinge Cube was designed to securely mount monitors to the CTRL.5 controller via ¼”-20 mounting points. This cube was specifically designed so that anything mounted to the controller clears the antennas on the controller itself. Using the dual Rosettes design, the user can easily adjust the positioning of the monitor without questioning the security of the connection to the CTRL.5. The cube features ⅜”-16 mounting points for additional accessories. Removable anti-twist pins are compatible with SmallHD monitor mounting points or other 3rd party monitors. The cube is securely attached to the CTRL.5 via a ¼”-20 screw with anti-twist pins.
Product Highlights
- Adjustable hinge positions via a rosette attachment
- Removable mounting pins for 3rd party monitors
- Able to mount to a CTRL.5 or other camera accessories like handles
- Mounting points around the cube for additional accessory mounting
- ¼”-20 mounting point for the cube to fit onto the CTRL.5
| Physical | |
| Dimensions | 1.9 x 1 x 1.9 in (48.2 x 25.3 x 47.9 mm) |
| Weight | 2.67 oz (75.75 g) |
