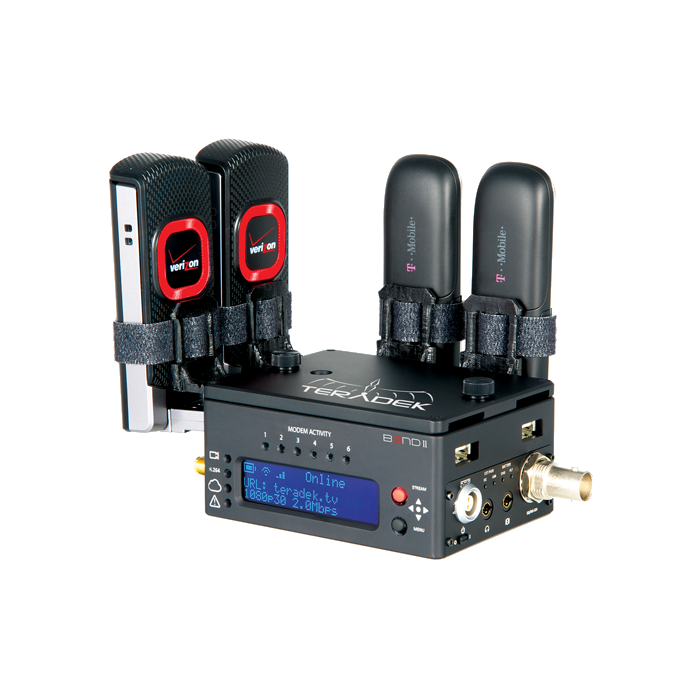

Teradek Bond II HD-SDI 6 Port Cellular Bonding Device w/ Encoder

Verfügbarkeit: 7-10 days delivery
SKU
TRD-10-0118

Allows video professionals to broadcast 1080p HD video over aggregated bandwidth from several network interfaces, including 3G/4G/LTE, WiFi, BGAN, Ethernet*, and Fiber.

Normalpreis 34.075,00 HRK Sonderangebot 32.371,25 HRK 25.897,00 HRK

Paket beinhaltet

  • 1 x SDI - BNC to BNC
  • 1 x Hot Shoe Adapter with Thumbscrew
  • 1 x USB Stick
  • 2 x Wireless Antennas
  • 1 x Bond II Modem Plate
  • 6 x Bond II Modem Clip
  • 1 x Protective SKB Case - military-standard waterproof hard case with custom foam (13.5in x 9.5in x 6.5in - 34.29cm x 24.13cm x 16.51cm)
  • 1 x 2-pin Connector to AC Adapter 6ft Cable with International Plugs
  • 1 x Black Velcro
  • 6 x USB Plugs

The Teradek Bond line of cellular bonding solutions allows video professionals to broadcast 1080p HD video over aggregated bandwidth from several network interfaces, including 3G/4G/LTE, WiFi, BGAN, Ethernet*, and Fiber. Bond devices utilize hardware-based high profile H.264 compression, resulting in very low power consumption and long run times. Each bonding solution offers a local monitoring capability on iOS devices, quick access to settings via an OLED display, and IFB for communication from the studio to the field. All Bond devices require a Sputnik server, which converts each bonded feed into a standard video format that can be sent to any streaming platform on the Web or to several

Video Inputs

HD-SDI, SD-SDI: BNC

Bonding

Up to 6 USB Devices
Ethernet* (requires USB to ethernet dongle)
WiFi


Supported Resolutions

1080p 23.98/24/25/29.97/30
1080i 50/59.94/60
1080PsF 23/24/25/29/30
720p 50/59.94/60
576i
480i


Video Compression

Compression Algorithm: H.264, Baseline, Main and High Profile

Supported Video Bitrate

250 Kbps to 10 Mbps

Video Format Conversion Support

Built in Video Scaler and Deinterlacer


Network Protocols

TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP


Supported Video Transport Protocols

RTP, RTSP, RTSP over HTTP
MPEG-TS

Remote Control

Teradek Core


Audio Compression

AAC-LC, MPEG Layer 2


Audio Input

Embedded Audio Input
Analog Line or Mic in, adjustable gain
IFB: One-Way Talk-Back Analog Audio In/Out


Audio output

Headphone output, adjustable volume
IFB: One-Way Talk-Back Analog Audio In/Out


Dimensions

2.7" W x 3.5" D x 1.5"H [68.58 x 88.9 x 38.1 mm]


Weight

8.4oz [238g]


Interfaces

Feature-rich WebUI for configuration and control


Configuration Interfaces

OLED Display with joystick Navigation buttons


Switches

On/Off and Reset Switch


Recording Storage

SD Card: Micro


Ethernet

10/100 BASE-T


Wireless

2.4/5GHz 802.11 a/b/g/n MiMO3

Encryption

802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES


Power Input

2 Pin Connector Power Input


Nominal Power Consumption

3.5W, 2W (no WiFi)
While Charging: up to 10W


Auxilary Power Input

6-28V DC
