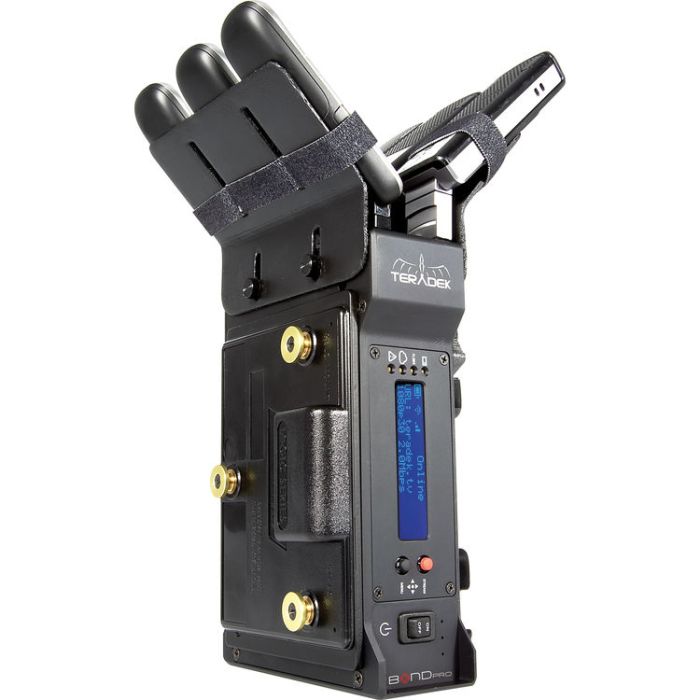

Teradek Bond Pro AB-Mount Integrated Camera-Back H.264 Cellular Bonding Solution
by TeradekThis Gold-mount Teradek Bond Pro Camera-Back Cellular Bonding Solution allows video professionals to broadcast 1080p HD video over aggregated bandwidth from several network interfaces, including 3G/4G/LTE, WiFi, BGAN, Fiber, and Ethernet (Ethernet bonding requires optional USB to Ethernet adapters).
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Teradek Bond Pro Integrated Camera-Back H.264 Cellular Bonding Solution HD-SDI (Gold-Mount)
This Gold-mount Teradek Bond Pro Camera-Back Cellular Bonding Solution allows video professionals to broadcast 1080p HD video over aggregated bandwidth from several network interfaces, including 3G/4G/LTE, WiFi, BGAN, Fiber, and Ethernet (Ethernet bonding requires optional USB to Ethernet adapters).
Bond devices utilize hardware-based high profile H.264 compression, resulting in very low power consumption and long run times. Each bonding solution offers a local monitoring capability on iOS devices, quick access to settings via an OLED display, and IFB for communication from the studio to the field. All Bond devices require a Sputnik server, which converts each bonded feed into a standard video format that can be sent to any streaming platform on the Web or to several H.264 decoders.
Compatible With | List of Approved Modems: AT&T: USBConnect Momentum 4G (Sierra Wireless Aircard 313U) T-Mobile: Jet 2.0 (Huawei e366) Telstra: BigPond Ultimate (Sierra Wireless Aircard 312U) and BigPond 4G (Sierra Wireless Aircard 313U) Verizon: Pantech UML290 Vodafone: K3805-Z, K5005 (Huawei e398) |
Video Inputs | HD-SDI, SD-SDI |
Looping Video Outputs | HD-SDI, SD-SDI |
Supported Resolutions | 1080i 50 / 59.94 / 60 1080p 23.98 / 24 / 25 / 30 1080PsF 23.98 / 24 / 25 720p 50 / 59.94 / 60 576i, 480i |
Video Codec | Compression Algorithm: Baseline, Main, and High Profile H.264 Bit Rate: 250 kbps to 10 Mbps Built-in video scaler and deinterlacer |
Bit Rate | 250 Kb/s to 10 Mb/s |
Video Streaming Support | MPEG-TS (Point-to-Point TCP or UDP, UDP Unicast, UDP Multicast) RTMP (Adobe Flash Streaming) MPEG-TS license sold separately |
Audio | Audio Compression: AAC-LC, MPEG Layer 2 Embedded Audio Input Analog Line or Mic in, adjustable gain Headphone output, adjustable volume |
Interfaces | Feature-rich WebUI for configuration and control OLED LCD display with joystick navigation buttons On / off and reset switch Full size SD Six powered USB 2.0 host ports |
Network | Ethernet: 10/100BASE-T WiFi: Dual Band 802.11 a/b/g/n MiMO Bonded USB modem support |
Power | Gold-mount battery supported Internal rechargeable lithium-ion battery for battery swap purposes |
Power Consumption | 5 + 2.5 W (max) per USB device Up to 6 + 2.5 W (max) per USB device while charging |
Power Input | 6 to 28 VDC |
Dimensions | 4.2 x 1.6 x 5.9" (10.7 x 41 x 15 cm) |
Weight | 20 oz (567 g) |
