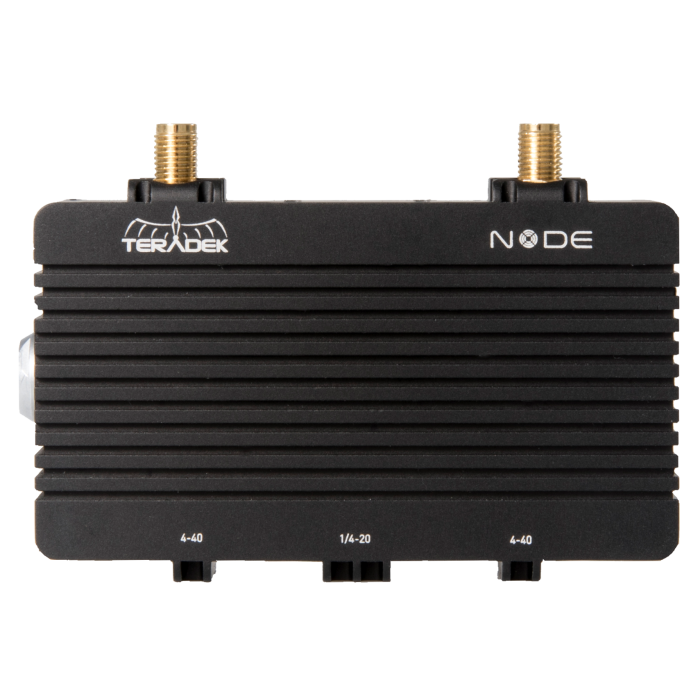

Teradek Node-EU Cellular 4G LTE Module Europe/APAC 4P-4P cable

by Teradek
Verfügbarkeit: 7-10 days delivery
SKU
TRD-10-0021-L

High performance 3G / 4G / LTE modem that provides exceptional connectivity and weather resistance compared to traditional USB modems. With comprehensive data band support, Node can use any SIM card in regions around the world for cellular connectivity.

793,25 € 634,60 €

Paket beinhaltet

  • 2 x Antennas - Wide Band, whip tilt, SMA Mount
  • 2 x Antennas - Wide Band,Penta Straight, SMA Mount
  • 1 x Sim Card Adapter
  • 1 x 4-pin to USB 18 inch Cable
  • 1 x Quick Start Guide

Node is a high performance 3G / 4G / LTE modem that provides exceptional connectivity and weather resistance compared to traditional USB modems. With comprehensive data band support, Node can use any SIM card in regions around the world for cellular connectivity.

Node can operate on most 3G / 4G/ LTE data band for any region around the world.

Node offers superior cellular connectivity over off-the-shelf modems from major network carriers. With 2 to 3 times the performance of carrier branded modems, Node allows you to go live from locations with the poorest cellular connectivity.

Traditional USB modems are flimsy and are easily broken during extended use in the field. Node solves the durability problem with an aluminum chassis, ¼”-20 and 4-40 mounting options, and a 4-pin locking connector to attach to your Teradek device.

Choose between USB and 4-pin connectors to connect the Node modem to your Teradek device. 4-pin connectors offer weather resistance and a stronger link to your rig, allowing you to put the system through regular abuse without risking disconnection.

Node modems can be used with Teradek Cube 600, 700, and 800 series, Bond II / Pro / Expansion Module, VidiU Pro, and the new Link bonded mobile hotspot.

Dimensions

  • 3.258" W x 0.728" D x 2.198"
  • [ 82.75 x 18.5 x 59.25 mm]

Weight

  • 4oz. (110g)

Construction

  • Milled Aluminum (Chassis), regulationcompliant
  • PCB

Mountability

  • 1/4"-20 threaded hole,
  • 2x 4-40 threaded holes,
  • Additional mounting options available

Temperature

  • Operating: -10ºC to 50ºC
  • Storage: -40ºC to 90ºC

Humidity

  • Operating: 5% to 95% (non-condensing)
  • Storage: Max. 90%

Interface

  • 2 Status LEDs

Interface

  • USB to 4-pin connector

Lte

  • US: LTE FDD Cat 4, Bands 2,4,5,13,17
  • EU/Asia: LTE FDD Cat 4, Bands 1,3,5,7,8,20
  • JP: LTE FDD Cat 4, Bands 1,3,5,8,19
  • SA/AUS: LTE FDD Cat 4, Bands 1,3,5,7,8,28

Umts

  • US: HSDPA Cat 24, HSUPA Cat 6, Bands
  • 850/1900
  • EU/Asia: HSDPA Cat 24, HSUPA Cat 6, Bands
  • 850/900/1900/2100
  • JP: HSDPA Cat 24, HSUPA Cat 6, Bands
  • 850/900/2100
  • SA/AUS: HSDPA Cat 24, HSUPA Cat 6, Bands
  • 850/900/1900/2100

Rf

  • 2x2 MIMO SMA
  • Band 17 (700 MHz), Band 13 (750 MHz) Band
  • 5 (850 MHz)
  • Band 4 (1700 MHz) Band 2 (1900 MHz)

Power Class

  • Class 3 23dBm LTE mode
  • Class 3 24 dBm for UMTS/HSDPA/HSUPA
  • mode

Data Rate

  • LTE cat. 4: up to 150 Mb/s DL, 50 Mb/s UL
  • HSDPA cat.14, up to 21 Mb/s DL
  • HSUPA cat.6, up to 5.6 Mb/s UL

Sim

  • Full size SIM

Power Input

  • 2-Pin Connector, 5-28V

Battery

  • None

Nominal Power Consumption

  • 5W Max
