Teradek Ranger Mk II 750 12G-SDI/HDMI - Wireless RX V-Mount

by Teradek
Verfügbarkeit: 7-10 days delivery
SKU
TRD-10-2582-V

Supports 4.9 to 6.4 GHz Frequency Bands
Receive from up to 750' Line of Sight

4.362,50 € 3.490,00 €

Paket beinhaltet

  • Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Receiver (V-Mount)
  • 5 x 2 dBi Antenna
  • V-Mount Battery Plate

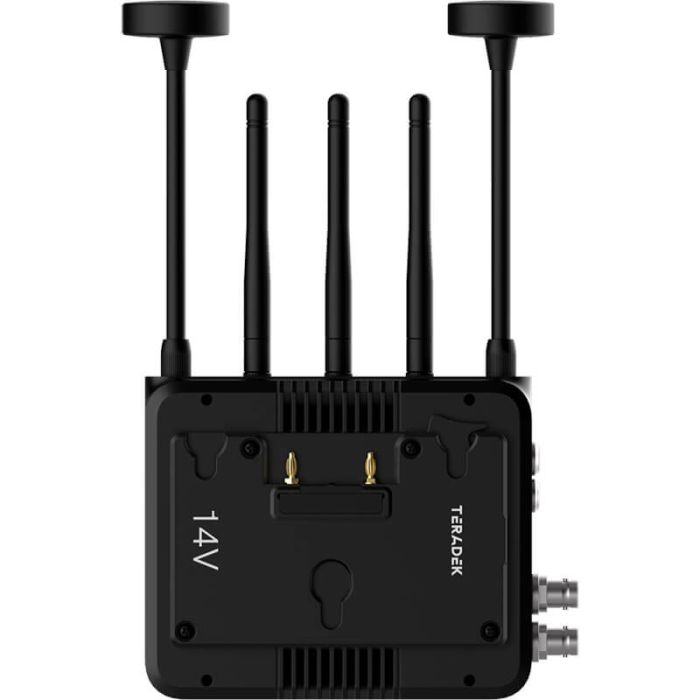

Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Receiver (V-Mount)

Transmit lossless 4K video up to 750' with the Ranger MK II 750 12G-SDI/HDMI Wireless Receiver from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this receiver can receive up to 4K60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum, and it can output up to 4K60 video over HDMI or 12G-SDI with 10-bit HDR support. The receiver unit supports a powerful signal that can travel up to 750' line of sight. It also features five external antennas.

When pairing with a Ranger transmitter, this unit can receive up to 4K60 video alongside up to five other receivers, and it features built-in AES-256 encryption protects your video from prying eyes. It can receive visually lossless video from any Ranger series receiver with zero delay. The receiver supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

The unit is powered using a 2-pin DC input or via the included V-mount battery plate, and there are 1/4"-20 and 3/8"-16 mounting threads to mount onto a variety of cameras, cages, or rigs.

Key Features

Premium Wireless Hardware


State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission. This model boasts a maximum range of 750', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.


Ranger Compatibility


Pair any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.


Zero Delay


When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 4K60, providing a visually lossless and engaging experience for your viewers.


Configure Ranger from PC or Phone

  • Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
  • Bluetooth 5 LE connection support
  • Pair transmitters and receivers with the touch of a button
  • Measure and analyze the frequency and amplitude of a signal
  • View live channel strength for licensed/unlicensed bands
  • Monitor your live RF spectrum bandwidth

Wide Transmission Frequency Range


With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.
Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Receiver (V-Mount) Specs

Key Specs
Video I/O
1 x HDMI 2.0 Output

1 x BNC (12G-SDI) Output
Embedded Audio
HDMI: 2-Channel
  SDI: 2-Channel
Latency < 0.01 ms
Video Format
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)

UHD 4K: 60/59.94/50/30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50
  576p: 50
  480p: 60/59.94
  576i: 60
  480i: 59.94

SDI (10-Bit 4:2:2 YCC)

UHD 4K: 60/59.94/50/30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50
  576p: 50
  576i: 50
  480p: 60/59.94
  480i: 59.94
Battery Type 1 x V-Mount
Power Consumption 18 W
Mounting
1 x 1/4"-20 Female

1 x 3/8"-16 Female
