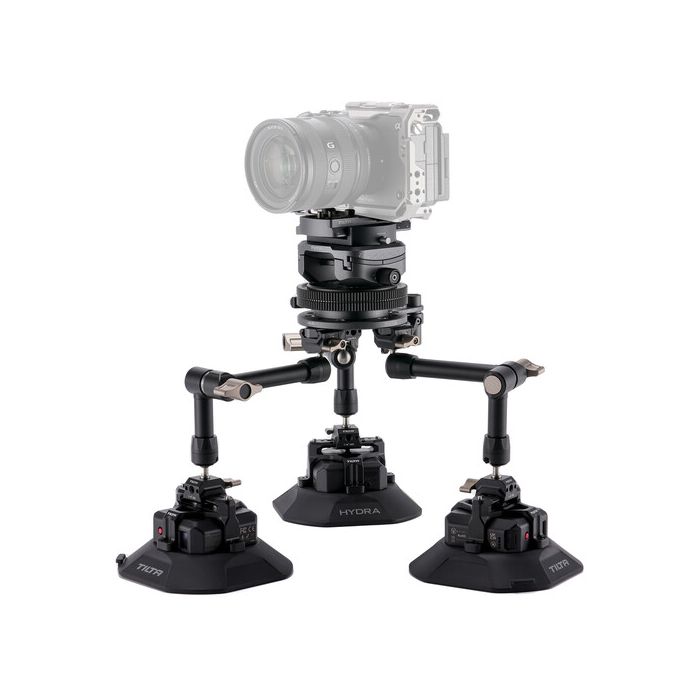

Tilta Hydra x Dan Ming Speed Pan System Pro Kit

by Tilta

Verfügbarkeit: Auf Lager

SKU

T-HDA-T19-B

Remotely control panning and provide tilt adjustments to your Hydra x rig with this Hydra x Dan Ming Speed Pan System from Tilta.

623,75 € 499,00 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Paket beinhaltet

Tilta Hydra x Dan Ming Speed Pan System (Pro Kit)
Rotating Mounting Plate
Baseplate for Action Cameras
3 x NATO Adapter
Aluminum 15mm Rod (2")
Extended Rod Adapter
Mini Tilt Head
Manfrotto Receiver
Manfrotto/Arca-Type Quick Release Plate
3 x NATO Mounting Bracket for Electronic Suction Cup (4.5")
3 x Electronic Suction Cup
3 x Pro Articulating Arm with Dual NATO Attachments
Cheese Plate Adapter
Allen Wrench (1/4")
Allen Wrench (3mm)
Magnetic Flat Head Screwdriver

Details

Remotely control panning and provide tilt adjustments to your Hydra x rig with this Hydra x Dan Ming Speed Pan System from Tilta. This compact mounting system Pro Kit is compatible with the Hydra x car-mounting system and features a Manfrotto/Arca-type quick release system, arms with an electronic suction cup system, a 360° panning system controllable using an optional 0.8 MOD motor, ±15° tilting, and bottom NATO rails.

Camera Compatibility

The Speed Pan system is compatible with all types of cameras and rig sizes, including action cameras, mirrorless cameras, box-style cameras, and the Rialto/Flex System.

Smooth Angle Adjustments

The adjustable tilt head can smoothly and easily adjust the camera angle ±15° with the built-in tilt head, and it can also pan 360°.

Universal 0.8 MOD Compatible

The center of the head features a robust 0.8 MOD gear that allows you to remotely control the panning of the head.

The standard gear teeth design is compatible with all pro-grade lens motors with a 0.8 MOD cine gear.

High-Speed Mounting Power

When mounted onto the separately available Hydra x system suction cups, the head is rated for speeds up to 75 mph, and it can support payloads up to 7 lb.

Clean Cable Passthrough

The head's hollow design allows cables to route directly through the head, preventing tangles and keeping setups neat and clean.

Mounting

The top cheese plate adapter features multiple 1/4"-20 and 3/8"-16 threads with 2" spacing, and it provides mounting for the included Manfrotto/Arca-type receiver and quick release plate for your camera rig. It also includes an action camera mount.

On the bottom, there are three NATO rails and an extended rod adapter for mounting onto the included NATO extensions, articulating arms, and electronic suction cups for secure mounting on a car.

Mehr Informationen

Rail Mounting	Base
	3x NATO Rail
Color	Black
Pan	360°
Tilt	15°
Mounting
Mounting	Camera Mount: Arca-Type PlateIncluded , Manfrotto RC2 PlateIncluded , Quick Release Base (Plate Not Included)Included , Multiple 1/4"-20 Female Thread with 3/8"-16 Female Thread, 3x Suction Cup
Rail Mounting	Base
	3x NATO Rail
General
Materials	Aluminum, Rubber, Stainless Steel
Dimensions	20 x 17 x 6.5" / 508 x 431.8 x 165.1 mm
Weight	9 lb / 4.1 kg
