Tilta Nucleus-M Motor Kit 1
by Tilta- Nucleus-M FIZ Brushless Motor, 0.8 MOD
- 22" 7-Pin to 7-Pin Nucleus-M Motor Cable
- Automatic and Manual Calibration
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Tilta Nucleus-M FIZ Lens Control Motor
- 19mm Rod Adapter
- 19mm to 15mm Bushing
- Limited 2-Year Mechanical Warranty
- Limited 1-Year Electrical Warranty
- Tilta Nucleus-M 7-Pin Motor to Motor Cable (7")
The Nucleus-M Motor Kit I from Tilta includes the compact Nucleus-M focus/iris/zoom brushless lens motor and a 22" 7-pin to 7-pin power cable. The motor also comes with a 19mm rod adapter that secures on the side and a 19-to-15mm bushing. The Nucleus-M motor features the cinema lens standard 0.8 MOD and offers high, medium, and low torque settings. Other features include automatic and manual calibration and a status window display.

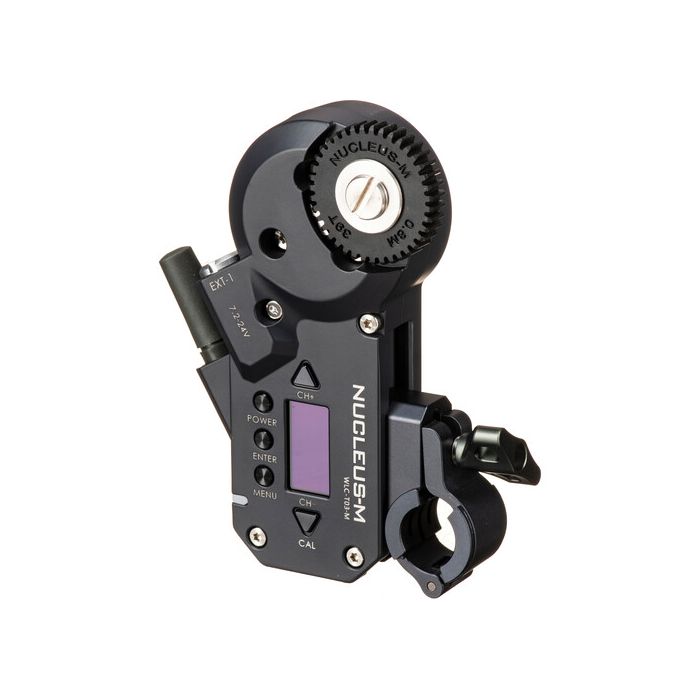

Tilta Nucleus-M FIZ Lens Control Motor
The compact Tilta Nucleus-M FIZ Lens Control Motor features an integrated motor drive, eliminating the space of a separate drive box and enabling a quicker setup. Power the motor using a separately available D-Tap cable and power source, or daisy-chain to another motor using a 7-pin cable.
The Nucleus-M wireless motor includes a cine standard 0.8 Mod drive gear and a 19mm rod adapter with a bushing for mounting onto a 15mm rod. The motor features automatic or manual calibration, a display window, and high, medium, and low torque settings.
Features
- Brushless motor with an integrated motor drive
- Cine-lens standard 0.8 Mod, 35-tooth, 32-pitch gear
- Motor clamps onto 19mm or 15mm rods (with included bushing)
- Power via separately available D-Tap cable or daisy-chain to additional motors
- Automatic and manual calibration
- For focus, iris, or zoom control
- High, medium, and low torque settings
- Status display window
Tilta Nucleus-M 7-Pin Motor to Motor Cable (7")
Use this 7" Nucleus-M 7-Pin Motor to Motor Cable from Tilta to connect one Nucleus-M lens control motor to another.
Tilta Nucleus-M FIZ Lens Control Motor Specs
|
Gear Mod |
0.8 |
|
Gear Pitch |
32 |
|
Number of Gear Teeth |
35 |
|
Face Width |
0.4" / 10 mm |
|
Operating Frequency |
2.4 GHz |
|
Maximum Range |
1640' / 500 m (unobstructed) |
|
Emission Power |
30-100 MW |
|
Current |
Quiescent: 0.10 A, 14.8 V |
|
Voltage |
7.2-24 V |
|
Rod Compatibility |
19, 15 mm |
|
Noise |
15 dB |
|
Operating Temperature Range |
-4 to 122°F / -20 to 50°C |
|
Material of Construction |
Aluminum alloy, stainless steel, ABS plastic |
|
Dimensions |
4.50 x 3.25 x 1.38" / 11.43 x 8.26 x 3.49 cm |
|
Weight |
6.7 oz / 190 g (motor only) |
Packaging Info
|
Package Weight |
0.495 lb |
|
Box Dimensions (LxWxH) |
6.45 x 4.65 x 1.4" |
Tilta Nucleus-M 7-Pin Motor To Motor Cable (7") Specs
|
Length |
7" / 18 cm |
Packaging Info
|
Package Weight |
0.06 lb |
|
Box Dimensions (LxWxH) |
3.15 x 3.05 x 0.85" |
