Tilta Sony a7RIII power supply system

by Tilta
Verfügbarkeit: 14-20 days delivery
SKU
T-BT-003-A7RIII
  • For powering the Alpha 7R III by Sony with a V-mount battery
  • Dual 15 mm rod adapter for rig mounting
255,25 € 204,20 €

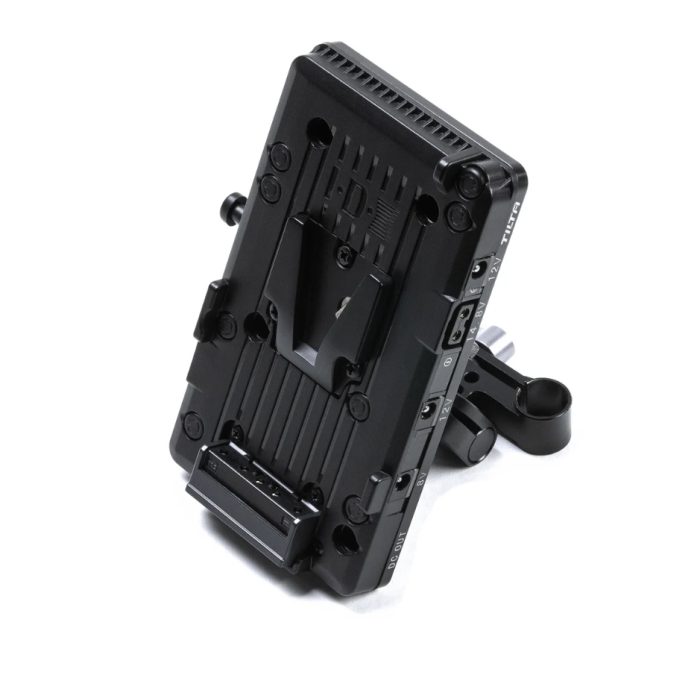

The BT-003-A7RIII is a V-mount battery plate with Sony NP-FZ battery dummy for powering the Alpha 7R III by Sony via an optionally available V-mount battery. The battery plate has three different current outputs (1x 14.8 V, 2x 12 V, 1x 8 V), which enable not only the operation of the camera, but also the operation of additional equipment. The power cable with 2.1 mm DC plugs on both sides is connected to the battery plate and the battery dummy and allows the camera to be powered with 8 V DC. The two 15 mm rod adapters on the battery plate allow the mounting on a rig.

  • For powering the Alpha 7R III by Sony with a V-mount battery
  • Dual 15 mm rod adapter for rig mounting

Data Links:

Input

  • 1x Power supply DC via V-mount battery

Output

  • 1x Power supply DC via 2-pin D-Tap (14.8 V)
  • 2x Power supply DC via 2.5 mm plug (12 V)
  • 1x Power supply DC via 2.1 mm plug (8 V)

General Product Information:

  • Weight: approx. 500 g (1.1 lbs)
  • Material: Aluminium-alloy, ABS plastic
  • Colour: Black

Scope of Delivery:

  • 1x V-mount battery plate with dual 15 mm rod adapter
  • 2x Power cable 2.5 mm plug to 2.5 mm plug (12 V DC)
  • 1x Power cable 2.1 mm plug to 2.1 mm plug (8 V DC)
  • 1x Sony NP-FZ battery dummy with 2.1 mm socket (8 V DC)
