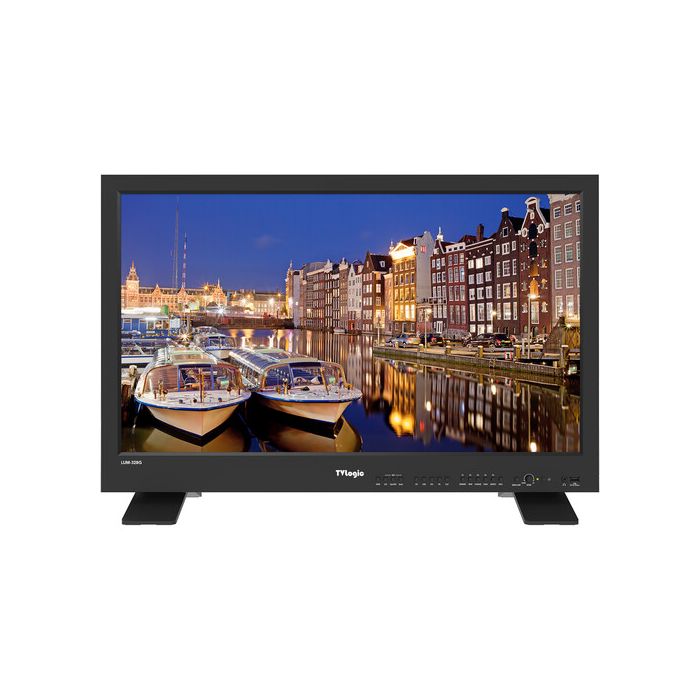

TVLogic LUM-328G 31'' 4K/UHD High Brightness HDR Emulation Monitor
by TVLogic
Verfügbarkeit:
7-10 days delivery
SKU
TVL-LUM-328G
31.5" UHD 4K LCD Monitor
4 x SDI Inputs, 1 x HDMI Input
18.618,75 €
14.895,00 €
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- TVLogic 31.5" UHD 4K SDI/HDMI LCD Monitor
- AC Power Cord
- Table Stand
Take 12G-SDI, 3G-SDI, and HDMI video sources up to UHD 4K and output them to this 31.5" UHD 4K SDI/HDMI LCD Monitor from TVLogic with up to four SDI sources for monitoring in the field. The SDI ports on the monitor, four outputs and four inputs, can support either 12G-SDI or 3G-SDI video. The 12G-SDI ports can perform as single-link connections while the 3G-SDI ports can perform in quad-link configurations.
The LUM-382G has a viewing angle of 178° and a maximum brightness of 1000 cd/m² for increased visibility. Onboard button controls allow you to adjust various image monitoring parameters from waveform to closed captioning. Control can also be achieved via the RS-422 connections or via remote control.
Features at a Glance
- Supports PQ and HLG as HDR EOTF gamma
- Select color standards among HD, UHD, DCI-P3, PQ, Dolby-PG, HLG, and preset values
- Luma(Y') zone check
- User aspect adjustable width and height display ratio
- Electrical-Electrical Transfer Function to roll off highlights and shadows to balance the image
- Precise color reproduction with wide color gamut
- Waveform and vectorscope
Other Video Assist Functions
- 16-channel audio level meter
- Focus assist
- Marker
- Timecode display
- UMD display
- Blue/mono only
- Closed caption
- H/V delay
- Tally
| Display Size | 31.5" / 80.0 cm |
| Native Resolution | 3840 x 2160 |
| Touchscreen | No |
| HDR Support |
Yes: Hybrid Log Gamma
|
| Video I/O |
2x BNC (12G-SDI) Input
|
|
2x BNC (12G-SDI) Output
|
|
|
2x BNC (3G-SDI) Input
|
|
|
2x BNC (3G-SDI) Output
|
|
|
1x HDMI 2.0 Input
|
|
| Show Less | |
| Media/Memory Card Slot | No |
| Video Format |
HDMI (10/12-Bit 4:4:4/4:2:2 RGB, YCC)
|
| DCI 4K: 60 | |
| 1080p: 60 | |
| 1080i: 60 | |
| 720p: 60 | |
| 480p: 60 | |
| 576p: 50 | |
|
SDI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
|
|
|
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
| Show Less | |
| Power Consumption |
162 W (Maximum)
|
| Display | |
| Panel Type | LCD |
| Display Size | 31.5" / 80.0 cm |
| Screen Area |
27.45 x 15.44" / 697.31 x 392.23 mm
|
| Native Resolution | 3840 x 2160 |
| Aspect Ratio | 16:09 |
| Viewing Angle | Horizontal: 178° |
| Vertical: 178° | |
| Touchscreen | No |
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio | 1000:01:00 |
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
Yes: Hybrid Log Gamma
|
| Pixels Per Inch (ppi) | 139 ppi |
| LUT Support | Yes |
| Image Controls |
Blue Only, Focus Assist, H/V Delay, Vectorscope, Waveform
|
| Inputs / Outputs | |
| Video I/O |
2x BNC (12G-SDI) Input
|
|
2x BNC (12G-SDI) Output
|
|
|
2x BNC (3G-SDI) Input
|
|
|
2x BNC (3G-SDI) Output
|
|
|
1x HDMI 2.0 Input
|
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
|
1x 1/8" / 3.5 mm Line Input
|
|
| Built-In Speaker | No |
| Other I/O |
1x USB-A (Firmware) Input
|
|
1x RJ45 (GPI) Input
|
|
|
1x RJ45 (LAN) Input
|
|
|
1x RJ45 (RS-422) Input
|
|
|
1x RJ45 (RS-422) Output
|
|
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format |
HDMI (10/12-Bit 4:4:4/4:2:2 RGB, YCC)
|
| DCI 4K: 60 | |
| 1080p: 60 | |
| 1080i: 60 | |
| 720p: 60 | |
| 480p: 60 | |
| 576p: 50 | |
|
SDI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
|
|
|
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
| Video Standard Compliance |
SMPTE 125M/260M/274M/296M/425M-A/425M-B/ST-2036-1/ST-2081/ST-2082
|
| ITU -R BT.656 | |
| Power | |
| Input Power | 12 VDC |
|
100 to 240 VAC, 50 / 60 Hz
|
|
| Power Consumption |
162 W (Maximum)
|
| Mounting | |
| VESA Mounting-Hole Pattern | 400 x 200 mm |
| General | |
| Operating Conditions |
32 to 113°F / 0 to 45°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
29.9 x 19.1 x 4.2" / 760.3 x 485.3 x 107.1 mm
|
|
29.9 x 20.7 x 9.6" / 760.3 x 525.9 x 245 mm (Including Stand)
|
