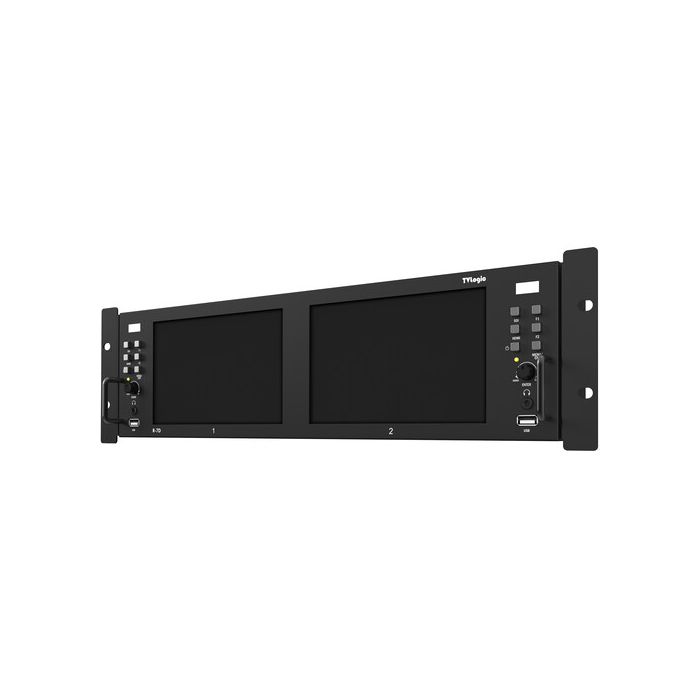

TVLogic R-7D Dual LCD UHD-4K Ready Rack Mount

by TVLogic

Verfügbarkeit: 7-10 days delivery

SKU

TVL-R-7D

Two 7" 1920 x 1200 IPS Displays
12G-SDI, 3G-SDI & HDMI Inputs/Outputs

5.493,75 € 4.395,00 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Paket beinhaltet

TVLogic Dual 7" LCD UHD 4K Ready Rackmount Monitors
Power Cable
Power Adapter
Rackmount Kit

Details

Featuring two 7" displays in a slim 3 RU design, the Dual 7" LCD UHD 4K Ready Rackmount Monitors from TVLogic are designed to provide efficient broadcast monitoring of up to two 1080p60 signals. The R-7D has 12G-SDI, 3G-SDI, and HDMI inputs and outputs per display as well as 3.5mm headphone output and a USB input for firmware and 3D LUT import for each panel. Each 7" display features a 1920 x 1200 resolution, a wide 160° viewing angle, and they can monitor up to UHD 4K60 video resolutions.

Built-in image analysis functions include HDR emulation, 1:1 scan modes, waveform, vectorscope, delay, zone check, a 16-channel audio meter, and timecode display. A 4-pin XLR power input is provided on the rear, and a 12 VDC power adapter is included. A rackmount kit is included to mount the dual monitors onto a standard rack.

Key Features

Two 7" 1920 x 1200 resolution displays in an ultra-slim 3 RU design
12G-SDI, 3G-SDI, and HDMI/O
Up to UHD 4K60 signal input
160° viewing angle
500 cd/m² brightness
1200:1 contrast ratio
Headphone outputs
USB inputs for 3D LUT import
4-pin XLR power input
12 VDC power adapter included
Rackmount kit included

Image Analysis Tools

1:1 Scan Modes for HD/SD
HDR emulation (PQ, HLG, SLog 3)
Waveform
Vectorscope
Audio level meter
H/V delay
Luma zone check
Timecode display
Customizable aspect ratios
Scan modes

Mehr Informationen

Display Size	7.0" / 17.8 cm
Native Resolution	1900 x 1200
Touchscreen	No
HDR Support	Yes: Hybrid Log Gamma
Video I/O	1x BNC (12G-SDI) Input
	1x BNC (3G-SDI) Input
	1x HDMI (Unspecified Signal) Input
	1x BNC (12G-SDI) Loop Output
	1x BNC (3G-SDI) Loop Output
	Show Less
Media/Memory Card Slot	No
Video Format	HDMI/SDI
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	720p: 60/59.94/50
	576i: 50
	480i: 59.94
	Show Less
Battery	No
Power Consumption	22 W
Display
Panel Type	LCD
Display Size	7.0" / 17.8 cm
Native Resolution	1900 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 160°
	Vertical: 160°
Touchscreen	No
Maximum Brightness	500 nits / cd/m2
Contrast Ratio	1200:01:00
Color Support	16.7 Million Colors (6-Bit+FRC)
HDR Support	Yes: Hybrid Log Gamma
Image Controls	Check Field, Customizable Aspect Ratios, Vectorscope, Waveform
Inputs/Outputs
Video I/O	1x BNC (12G-SDI) Input
	1x BNC (3G-SDI) Input
	1x HDMI (Unspecified Signal) Input
	1x BNC (12G-SDI) Loop Output
	1x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI/SDI
Audio I/O	2x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x XLR 4-Pin (1.85 A / 12 VDC) Input
Other I/O	2x USB-A 2.0 Input
Media/Memory Card Slot	No
Wireless
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	HDMI/SDI
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	720p: 60/59.94/50
	576i: 50
	480i: 59.94
Power
Input Power	12 VDC at 1.85 A
Battery	No
Power Consumption	22 W
Mounting
Rack Form Factor	3 U
General
Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-4 to 140°F / -20 to 60°C
Dimensions	16.9 x 5.2 x 2" / 430 x 132 x 50.5 mm (Excluding Bracket)
	18.9 x 5.2 x 2.9" / 480.8 x 132 x 73 mm (Including Bracket)
Weight	5.42 lb / 2.46 kg
Packaging Info
Package Weight	8.615 lb
Box Dimensions (LxWxH)	22.1 x 11.2 x 7.1"
