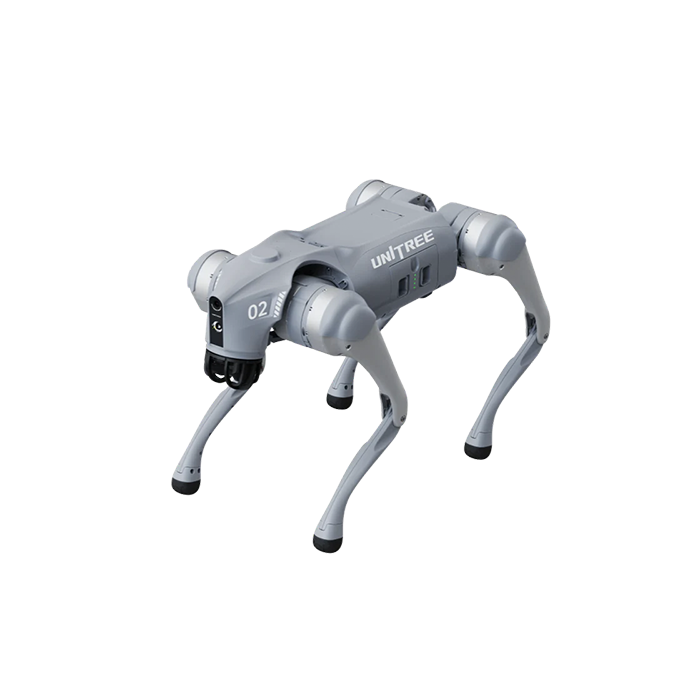

Unitree Go2 AIR Robotic Dog

by Unitree
Verfügbarkeit: 7-10 days delivery
SKU
UNIGO2A

The Unitree Go2 AIR Robotic Dog (EU) is an advanced intelligent bionic quadruped robot featuring a highly sophisticated 4D LIDAR L1 recognition system.

2.980,00 € 2.384,00 €

Paket beinhaltet

  • 1x Unitree Go2 AIR Robotic Dog
  • 1x Smart battery (standard)
  • 1x Charger EU (standard)
  • Unitree Go2 AIR Robotic Dog (EU)
  • Features 4D LIDAR L1 with 360° x 90° recognition
  • Performs complex movements with flexible AI mode
  • Supports 3D LiDAR mapping with app control
  • Utilizes ISS2.0 for 50% enhanced positioning accuracy
  • Provides ultra-long battery life of 1-2 hours

The Unitree Go2 AIR Robotic Dog (EU) is an advanced intelligent bionic quadruped robot featuring a highly sophisticated 4D LIDAR L1 recognition system. This system offers 360° x 90° hemispherical ultra-wide recognition with minimal blind spots and a detection range starting from 0.05 meters, enabling the robot to navigate all terrains effectively.

The robot's AI mode, developed through extensive simulation training, allows it to perform complex movements such as upside-down walking, adaptive roll-over, and obstacle climbing with remarkable flexibility and stability.

The 3D LiDAR mapping capability, combined with a dedicated app, allows users to create point cloud maps and set autonomous movement paths for the robot. The Intelligent Side-follow System (ISS2.0) enhances positioning accuracy by 50% and extends the remote control range to over 30 meters, facilitating better navigation through complex terrains.

The robot also supports OTA upgrades, allowing it to connect to a cloud-based service for continuous program improvements. The Unitree Go2 AIR Robotic Dog is equipped with high-tech devices, including a wireless module supporting Wi-Fi6, Bluetooth, and 4G, and offers ultra-long battery endurance of approximately 1 to 2 hours.

The new app provides HD image transmission and real-time remote monitoring, ensuring a stable connection and control. The Unitree Go2 AIR Robotic Dog represents the pinnacle of bionic robotics, pushing technological boundaries and leading the industry with its innovative features.

Dimensions
Standing 70 x 31 x 40 cm
Crouching 76 x 31 x 20 cm
Max Climb Drop Height About 15 cm
Payload ≈7 kg (MAX ~ 10 kg)
Material Aluminium alloy + High strength engineering plastic
Voltage 28 V ~ 33.6 V
Working maximum power About 3000 W
Speed 0 ~ 2.5 m/s
Max Climb Angle 30°
Aluminum knee joint motor 12 set
Range of Motion
Body -48 ~ 48°
Thigh: -200° ~ 90°
Shank -156° ~ -48°
Intra-joint circuit (knee) Yes
Joint Heat Pipe Cooler Yes
Super-wide-angle 3D LIDAR Yes
HD Wide-angle Camera Yes
Basic Action Yes
Upgraded Intelligent OTA Yes
RTT 2.0 Pictures Transaction Yes
Graphical programmed Yes
Front lamp Yes
WiFi6 with Dual-band Yes
Bluetooth 5.2/4.2/2.1 Yes
Intelligent detection and avoidance Yes
Smart battery standard (8000mAh)
Battery life About 1-2 h
Charger: fast charge (33.6V 3.5A)
Weight (with battery) About 15 kg
Note: Cannot do a backflip (only PRO / EDU versions can do this)
