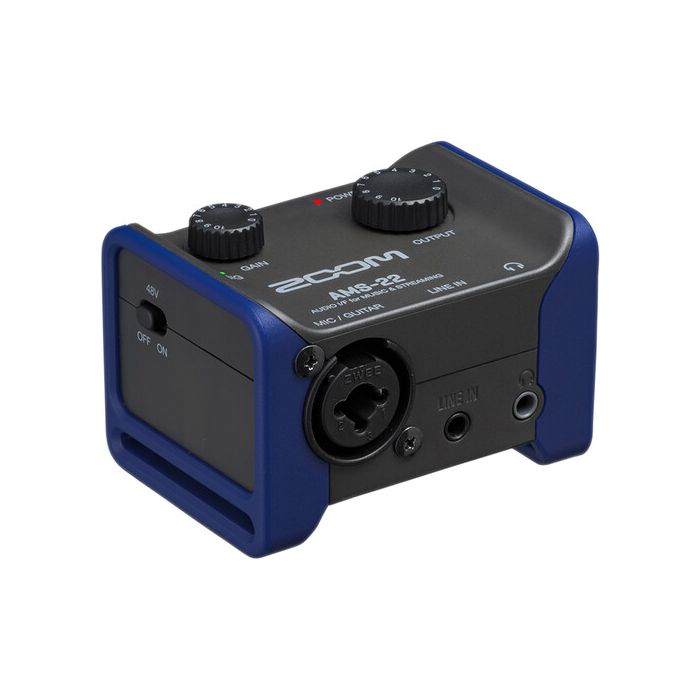

Zoom AMS-22
by ZoomFor Mobile Recording and Streaming
TRS/XLR Combo Input + 3.5mm Stereo Input
Two 1/4" TRS Outputs + 3.5mm Stereo Out
48V Phantom Power for Microphones
Up to 24-Bit / 96 kHz Recordings
Power from USB Bus or AC Adapter
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Zoom AMS-22 2x2 USB Audio Interface for Music and Streaming
- USB Type-C Cable
Plug your guitar or microphone into the TRS/XLR input, and power condenser mics by engaging the 48V phantom power switch. Plug stereo music sources into the 3.5mm input jack and monitor via the 3.5mm headphone jack, or connect monitor speakers to the stereo TRS output. The AMS-22 supports 24-bit resolution recordings at a sampling rate up to 96 kHz. The interface operates on bus power from your computer, but can also be powered by an AC power adapter (available separately) if you're using it with a smartphone or tablet. Direct monitoring and loopback functions make overdubbing and adding music to your streams simple and easy.
Two Inputs and Two Outputs
Perfect for mobile recording or streaming, the AMS-22 includes one XLR/TRS combo input, plus a stereo 3.5mm line in. It also includes one 3.5mm headphone output and two TRS outputs for external monitors.
Use for Recording and Streaming
Use the AMS Series on any device thanks to its support for Mac and PC along with iOS and Android devices, and integrate seamlessly with commonly used software, apps, and platforms. In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram, and Patreon. In Music mode, record with software like Adobe Audition, Pro Tools, Cubase, and Garage Band.
Quick Control
With onboard hardware switches, the AMS-22 is designed to simplify common streaming challenges without the need for additional software.
Onboard Monitoring
Use the Direct Monitor Switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software.
Loopback
The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.
Form Factor | Desktop |
Display | None |
Channels of I/O | Analog: |
2 Inputs / 2 Outputs | |
Maximum Sampling Rate | 96 kHz / 24-Bit |
Number of Microphone Preamps | 1 Preamp |
Built-In Microphone | None |
Input Level Adjustment | 1 x Knob |
Expansion Slots | None |
Pad | None |
Gain/Trim Range | +8 to +54 dB |
High-Pass Filter | None |
Analog Audio I/O | 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Hi-Z Input |
1 x 1/8" / 3.5 mm TRS Unbalanced Line/Stereo Input | |
1 x 1/8" / 3.5 mm TRS Headphone Output | |
2 x 1/4" TRS Balanced Line Output | |
Phantom Power | 48 V, Selectable On/Off |
Digital Audio I/O | None |
Host Connection / USB | 1 x USB Type-C |
Host Connection Protocol | USB 2.0 |
USB (Non-Host) | None |
Sync I/O | None |
