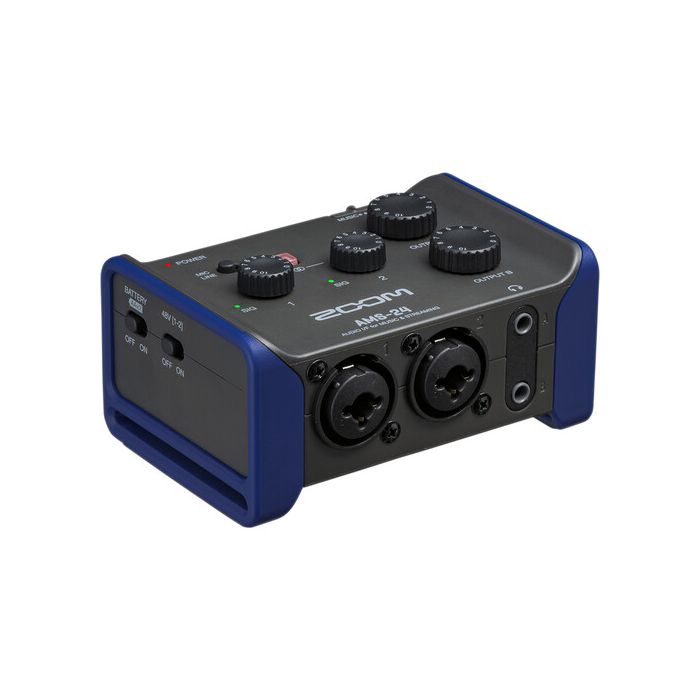

Zoom AMS-24
by ZoomTwo TRS/XLR Combo Inputs
Two 1/4" TRS Outputs
Two 3.5mm Headphone Jacks
48V Phantom Power for Microphones
Up to 24-Bit / 96 kHz Recordings
Direct Monitoring and Loopback Function
Power: USB, AA Batteries, or AC Adapter
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Zoom AMS-24 2x4 USB Audio Interface for Music and Streaming
- USB Type-C Cable
2 TRS/XLR Inputs, 2 TRS Outputs, and 2 Headphone Jacks
Perfect for mobile recording or streaming, the AMS-24 includes two XLR/TRS combo inputs. It also includes two 3.5mm headphone outputs and two TRS outputs for external monitors.
Switch Between Music and Streaming Modes
Use the AMS series with any device, and integrate seamlessly with commonly used software, apps, and platforms thanks to its support for Mac and PC computers along with iOS and Android devices. In Streaming mode, all inputs are combined into a single signal, so you can easily stream without needing additional complicated software. In Music mode, you can record into your DAW with expanded input and output routing options.
Quick Control
With onboard hardware switches, the AMS-24 is designed to simplify common streaming challenges without the need for additional software. Intuitive knobs allow you to control input gain and monitoring levels. Group the two inputs together using the Stereo switch.
Onboard Monitoring
Use the Direct Monitor switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software.
Loopback
The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.
Form Factor | Desktop |
Display | None |
Channels of I/O | Analog: |
2 Inputs / 2 Outputs | |
Maximum Sampling Rate | 96 kHz / 24-Bit |
Number of Microphone Preamps | 2 Preamps |
Built-In Microphone | None |
Input Level Adjustment | 2 x Knob |
Expansion Slots | None |
Pad | None |
Gain/Trim Range | +8 to +54 dB |
High-Pass Filter | None |
Analog Audio I/O | 1 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line/Hi-Z Input |
1 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input | |
2 x 1/4" TRS Balanced Line Output | |
Phantom Power | 48 V, Selectable On/Off |
Digital Audio I/O | None |
Host Connection / USB | 1 x USB Type-C |
Host Connection Protocol | USB 2.0 |
USB (Non-Host) | None |
Sync I/O | None |
Network I/O | None |
MIDI I/O | None |
Wireless Connectivity | None |
Frequency Response | 20 Hz to 20 kHz +0/-2 dB (at 44.1 kHz) |
20 Hz to 40 kHz +0/-3 dB (at 96 kHz) | |
Maximum Input Level | Combo XLR-1/4" Mic Inputs: |
+6 dBu | |
Combo XLR-1/4" Line Inputs: | |
+22 dBu | |
Hi-Z: | |
+8.5 dBu | |
Maximum Output Level | 1/4" Line Outputs: |
+10 dBu at 0 dBFS | |
Headphone Output Power | 1/8" / 3.5 mm: 30 mW per Channel into 32 Ohms |
Impedance | Mic Inputs: |
2.7 Kilohms | |
Line Inputs: | |
18 Kilohms | |
Hi-Z Inputs: | |
330 Kilohms | |
Line Outputs: | |
100 Ohms | |
Headphone Outputs: | |
10 Ohms | |
EIN | ≤ -120 dBu (150-Ohm Source) |
Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
Sample Rate Conversion | None |
Bit Depths | 24-Bit |
Memory Card Slot | None |
OS Compatibility | Windows |
macOS | |
Included Software | None |
Power Requirements | AC/DC Power Adapter (Not Included), USB Bus Power |
AC/DC Power Adapter | 5 VDC (Not Included) |
Current Consumption | 380 mA |
Battery Type | 2 x AA |
Approximate Battery Life | 4 Hours (Alkaline, 32-Ohm Load, Phantom Off) |
Dimensions | 3.7 x 2.9 x 1.8" / 94.5 x 74 x 46 mm |
Weight | 4.7 oz / 134.0 g |
Package Weight | 0.695 lb |
Box Dimensions (LxWxH) | 6.9 x 6.1 x 2.4" |
