Blackmagic Design OpenGear Converter - SDI Distribution

by Blackmagic Design
Verfügbarkeit: 7-10 days delivery
SKU
CONVOPENGSDIDA

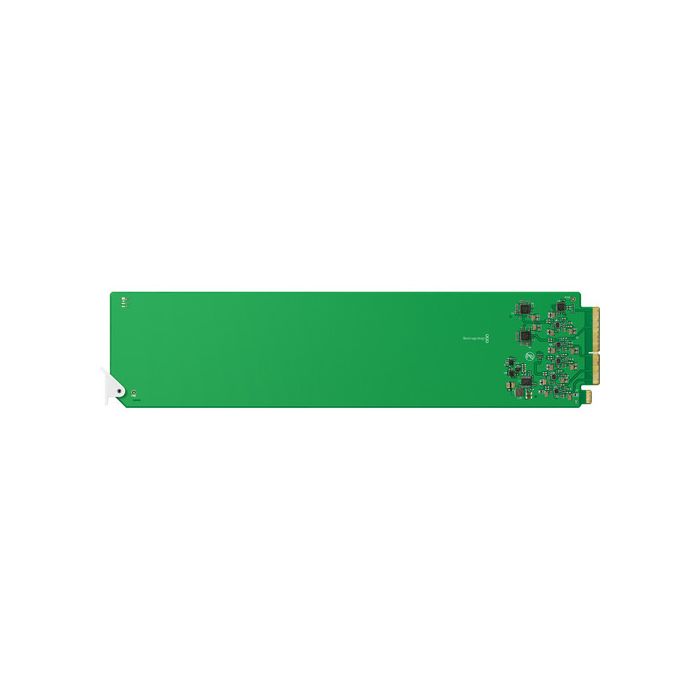

Blackmagic Design OpenGear SDI Distribution Converter is a converter in the form of a rack mount card that's compatible with the 20-slot 2RU OpenGear racks.

565,75 € 452,60 €

Paket beinhaltet

  • Blackmagic Design OpenGear SDI Distribution Converter

The Blackmagic Design OpenGear SDI Distribution Converter is a converter in the form of a rack mount card that's compatible with the 20-slot 2RU OpenGear racks. It sits on two slots and can share the rack with converters made by different manufacturers. It is hot-swappable and so can be pulled out of the rack at any moment without the prerequisite of the rack first being powered off.

The SDI distribution converter, referred to also as an SDI DA, with "DA" short for "distribution amplifier", takes one SDI input and automatically distributes up to 9 SDI outputs, with up to 3Gbps supported on both the in and outs. The converter inputs and outputs video and 16 channels of embedded audio.

The converter features re-clocking distribution, re-clocking the incoming signal so the output can run at the full 300' that SDI has capacity for. The cables required are 75 ohm SDI cables, which are not included.

Aside from traditional data formats, the SDI DA accepts the ASI format and can thus transfer compressed, and it also accepts ancillary data such as timecode, closed captioning, and other data that's outside of the visible raster.

  • OpenGear-compatible rack mount card SDI converter.
  • Supports one SDI input and automatically distributes up to 9 SD/HD/2K/3G-SDI outputs.
  • Inputs and outputs 16 channels of embedded audio.
  • Sits on 2 slots of 20-slot 2RU frames and is hot-swappable.
  • Can work in the same rack as converters made by different manufacturers.
  • Re-clocks distribution to output at full 300' SDI capacity.
  • Accepts ASI format and supports ancillary data.

Connections

Video Input SDI: Switchable between SD, HD and 3 Gb/s SDI
Video Output SDI: 9 outputs automatically match the SDI video input
Analog Video None
HDMI None
Optical Fiber Compatibility Video: None
Audio: None
Analog Audio None
AES/EBU None
SDI Redundant Input None
Reference Input None
Multi-Rate Support Auto detection of HD or standard definition inputs
Updates and Configuration None
Re-clocking Yes

Standards

Format Support NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p and 2K PsF
Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M
Video Bit Rate SDI video connections are switchable between standard definition and high definition
Video Sampling 4:2:2 and 4:4:4
Audio Sampling Television standard sample rate of 48 kHz and 24 bit
Color Precision 4:2:2 and 4:4:4
Color Space YUV and RGB
Auto Switching Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI
ASI Support Yes
Analog Format Support None
HDMI Format Support None
Copy Protection N/A
Software Control None
Settings Control None
Format Conversion None
