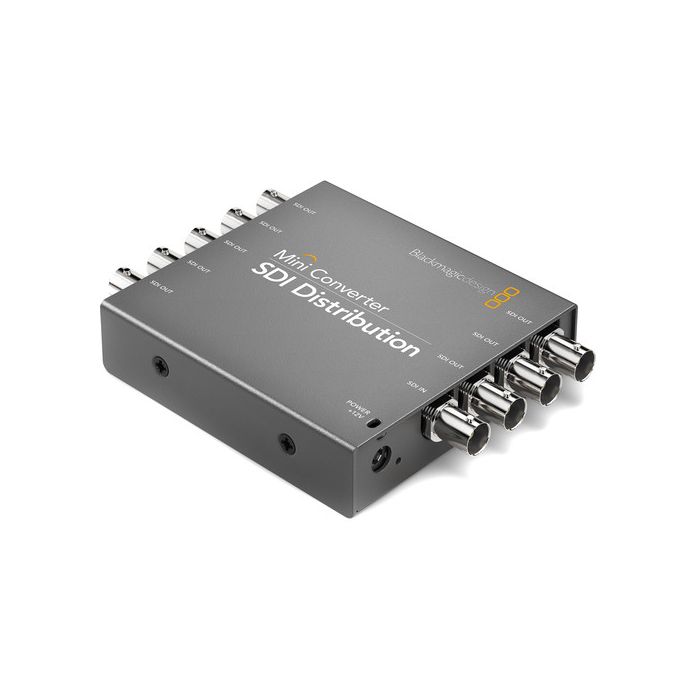

Blackmagic Design Mini Converter - SDI Distribution

by Blackmagic Design
Raspoloživost: Dostupno
SKU
CONVMSDIDA

Blackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals.

1.587,50 kn 1.270,00 kn

Sadržaj pakiranja

  • Blackmagic Design Mini Converter SDI Distribution
  • 12V Universal Power Supply with International Socket Adapters for All Countries

The Blackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input. This device represents an affordable way to distribute SDI signals throughout a facility or truck.

The Mini Converter SDI Distribution supports all SDI-related transmission features, including embedded audio, ancillary data, and the 3 Gb/s transmission rate that accommodates video formats up to 1080p and 2K progressive. It even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.

Inputs 1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI
Outputs 8x SDI: Automatically match the SDI video input
Re-clocking Yes
Supported Formats NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M
Video Sampling 4:2:2 and 4:4:4
Audio Sampling Television standard sample rate of 48 kHz and 24-bit
Color Precision 4:2:2 and 4:4:4
Color Space YUV and RGB
ASI Support Yes
Power Supply 12V universal power supply included
Power Consumption 110V: 40mA
220V: 20mA
Voltage Range 12-30V
