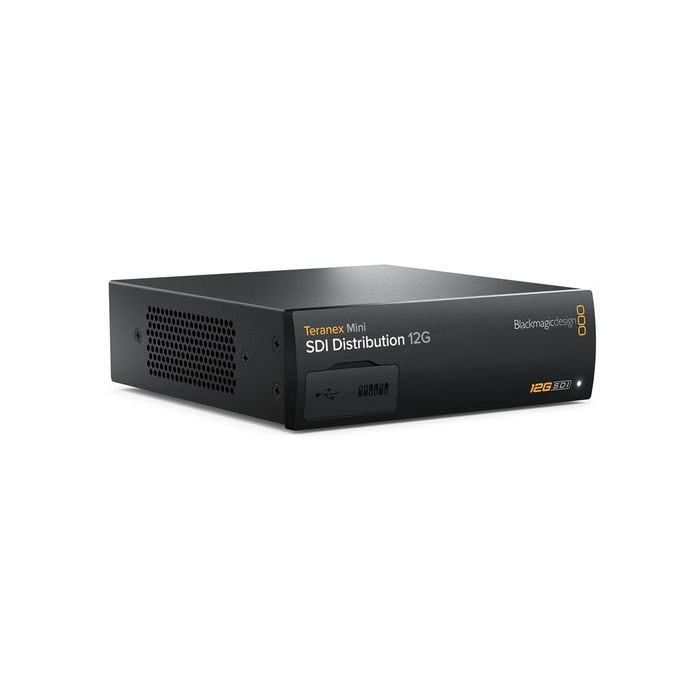

Blackmagic Design Teranex Mini - SDI Distribution 12G
by Blackmagic DesignDistribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Teranex Mini - SDI Distribution 12G
- Software SD Card
Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.
The all new Teranex Mini converters make building facilities and supporting all different types of video equipment easier than ever before. Teranex Mini is perfect for broadcast installations because they can be rack mounted and the optional front panel lets you see what's being converted on the screen! They can even be remote managed over ethernet. Their compact size makes them great for portable racks at live events or in broadcast trucks, plus they have professional XLR audio connections for connecting to mixers and other audio gear! You can even use them in editing and color grading suites to drive big screen displays and projectors!
Teranex Mini converters feature cutting edge, multi rate 12G-SDI technology that's 8 times faster than regular HD-SDI. 12G-SDI is multi rate so it will automatically detect and change between all SD, HD and Ultra HD video formats instantly, so you can connect Teranex Mini to all of your existing SD and HD equipment. 12G-SDI supports high frame rate Ultra HD up to 2160p60 on a single BNC cable so you can work in Ultra HD and keep your high frame rate production workflow for fast moving sports and action programming.
Connections
SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Output: 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input
Multi Rate Support: Automatic switching between SD/HD/2K and 4K
Updates and Configuration: USB or Ethernet
Re-Clocking: Yes
Standards
SD Format Support: 525/29.97 NTSC, 625/25 PAL
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94,
1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080p50, 1080p59.94, 1080p60.
2K Format Support
1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25.
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60,
4K Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
SDI Compliance
SMPTE 259M, 292M, 296M, 372M, 425M, ST-2081 & ST-2082
SDI Video Rates
SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
SDI Color Space: YUV & RGB
Software
Software Control: Mac OS X and Windows software upgrade via USB and Ethernet.
Internal Software Upgrade: Via included updater application.
Settings Control
Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power Requirements
Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption: 18 Watts
Operational Voltage Range: 90 - 240V AC
Environmental Specifications
Operating Temperature: 0°to 40°C (32° to 104°F)
Storage Temperature: -20°to 60°C (-4° to 140°F)
Relative Humidity: 0% to 90% non-condensing
