Decimator DMON-QUAD
by Decimator Design
Verfügbarkeit:
7-10 days delivery
SKU
DD-DMON-QUAD
DMON-QUAD from DECIMATOR is a compact 4-channel 3G-SDI multiviewer and multiplexer for use in studios, post houses, and other professional video applications.
408,25 €
326,60 €
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- DECIMATOR DMON-QUAD 4-Channel 3G-SDI Multiviewer
- Power Supply
- HDMI Cable
- USB Cable

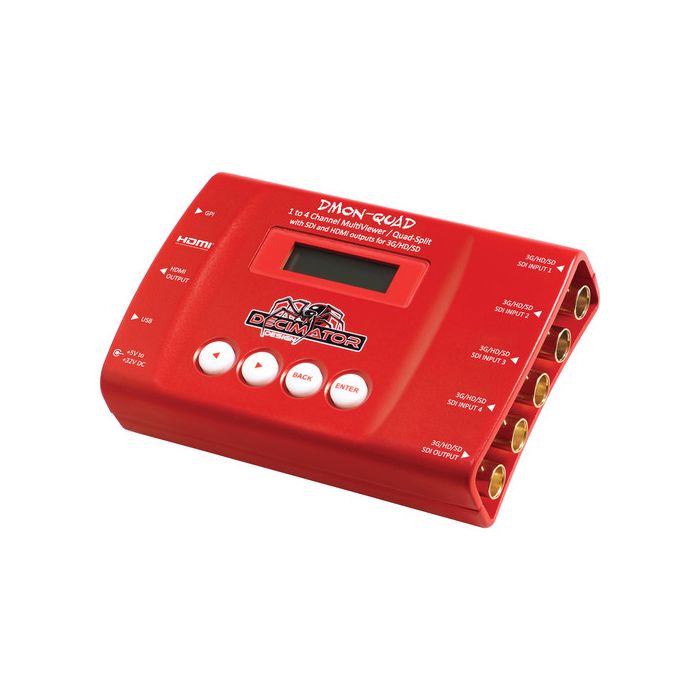

The DMON-QUAD from DECIMATOR is a compact 4-channel 3G-SDI multiviewer and multiplexer for use in studios, post houses, and other professional video applications. It supports a variety of resolutions and formats up to 1080p60 over SDI, and can arbitrarily mix formats and aspect ratios. The four SDI inputs can be output simultaneously over the HDMI or SDI outputs for a quad-view display. Tally information can be supplied via the RJ-45 connector.
- Supports 3G-SDI level A and B on inputs and output, allowing conversion between 3G level A and B
- Comes with pre-programmed layouts, user-customized layouts possible
- 16-character UMD overlay and 8-channel audio metering overlay per window with individual on/off, custom positioning, and size adjustment
- Horizontal and/or vertical image flipping per window
- Audio ID overlay
- Tallies can be applied to either tally boxes or the border (tally boxes allow for up to 4 tallies per window)
- Fast switching between inputs using full-screen scaling
- Selectable output format in both Full-Screen Multi-Viewer mode
- Low latency frame buffering for each input allowing non-synchronous inputs
- Linked SDI and HDMI outputs
- Each SDI inputs is resolution and frame rate independent
- Pass through mode allows an unprocessed signal to be output from both SDI and HDMI terminals simultaneously
- Robust aluminum enclosure
Inputs | 4 x BNC, SD/HD/3G-SDI 1 x USB Mini-B, control and updates 1 x RJ-45, UMD and Tallies via RS-422/485 |
Outputs | 1 x SD/HD/3G-SDI 1 x HDMI |
Resolution Support | SDI: 1080p 23.98/24/29.97/30/50/59.94/60 1080PsF 23.98/24/29.97/30 1080i 50/59.94/60 720p 23.98/24/29.97/30/50/59.94/60 NTSC PAL HDMI: 1080p 23.98/24/29.97/30/50/59.94/60 1080PsF 23.98/24/29.97/30 1080i 50/59.94/60 720p 23.98/24/29.97/30/50/59.94/60 NTSC PAL |
Power | Input: 5-32 VDC, locking coaxial (center positive) |
Dimensions | 3.1 x 4.8 x 1.2" / 8 x 12.3 x 3 cm |
