Decimator MD-HX

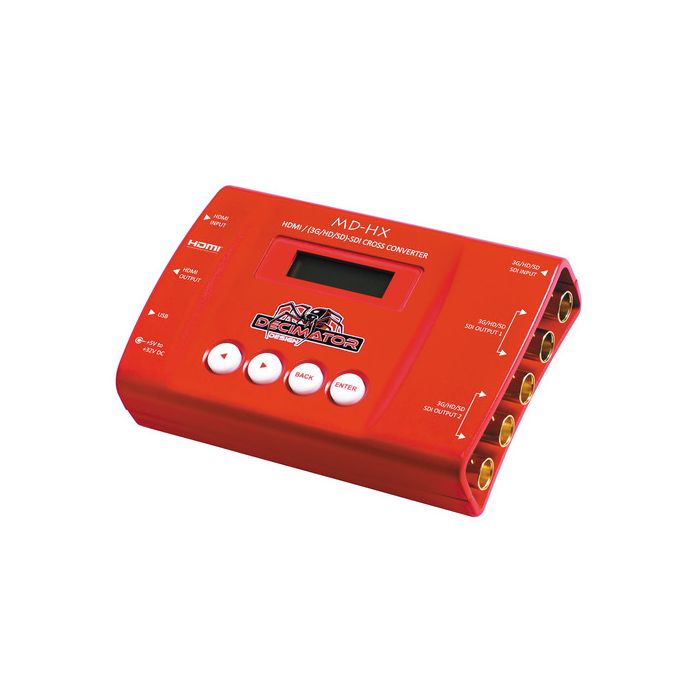

by Decimator DesignECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion is a small independent device that features the same proven cross converter found in DECIMATOR's larger MD-DUCC.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- DECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion
- Universal Power Supply
- HDMI Cable
- USB Cable
Combining capabilities usually reserved for a computer controlled converter the DECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion is a small independent device that features the same proven cross converter found in DECIMATOR's larger MD-DUCC. The MD-HX features both an HDMI and a 3G-SDI input, and can cross convert either signal to the other. It features a built-in scaler and frame rate converter as well, allowing you to convert the input signal to your required output standard.
The MD-HX features one HDMI output and two pairs of 3G-SDI outputs, controllable via fourteen selectable conversion modes, providing you with a variety of modes to fit your needs. This converter does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a power supply with locking power cable to prevent accidental power loss during use.
Inputs | HDMI: 1 x Type A SD/HD.3G-SDI: 1 x BNC |
Outputs | HDMI: 1 x Type A SD/HD.3G-SDI: 4 x BNC (2 x Active Loop Through or addition outputs, 2 x output) |
SDI Formats Supported | 3G: SMPTE 424M 2.97 and 2.967 Gb/s 1080p: 60/59.94/50Hz HD: SMPTE 292M/274M/296M 1.485 and 1.435 Gb/s 1080i: 60/59.94/50 Hz 1080p/psf: 30/29.97/25/24/23.98 Hz 720p: 60/59.94/50/30/29.97/25/24/23.98 Hz SD: SMPTE 259M 270 Mb/s 525i: 59.94 625i: 50 |
Control Buttons |
|
Power | 5 to 32 VDC Pin Positive |
Dimensions | 3.1 x 4.8 x 1.2" / 79.5 x 123 x 29.5 mm |
