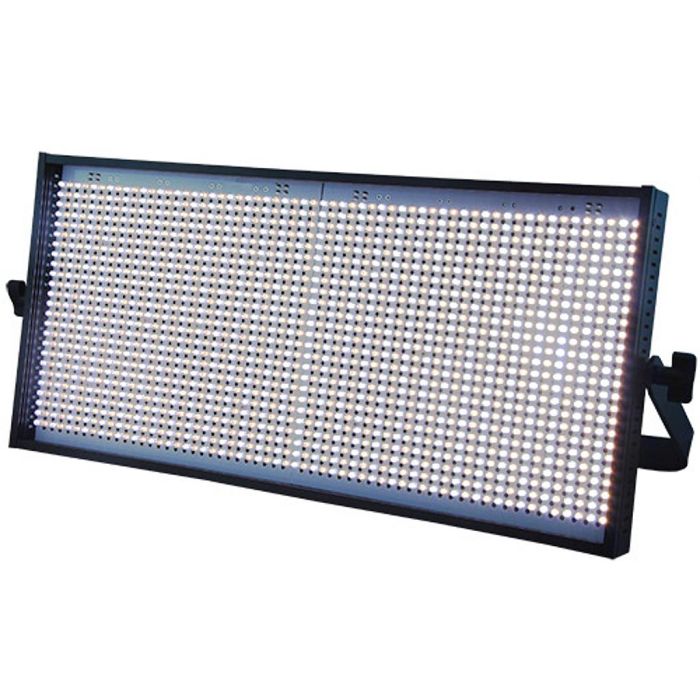

Dynacore ELF3D/T 1X1 Led Panel

by Dynacore
Verfügbarkeit: 14-20 days delivery
SKU
DY-ELF3D/T1X1

Bicolor model Dynacore ELF3-D/T LED Light

1.347,25 € 1.077,80 €

Paket beinhaltet

  • AC Adaptor
  • Yoke with Stand Mount
  • Soft Light Diffuser
  • Enhanced Light Diffuser

Dimmer
The brightness change is shown clearly on the screen by number from 0-100 when dimmer either by knob on the back or by DMX remote control. The knob is pressed down to select the brightness dimming and channel control orderly, which means press the knob 1 time, you can change the brightness by turning the knob and press it 1 more time to change the signal channel.

Power
It runs on AC power or DC12-17V. We do not supply a battery mount for the light because it is too powerful for a Li Ion brick battery.

LED luminaries
Bicolor Model is with 750pcs 5600K LED lamps and 750pcs 3200K LED lamps.

Filters
2 diffusers are supplied.
Soft light diffuser to minimize the dazzling light.
And another diffusion sheet to improve the lighting output effect.
Together with the high efficiency LED luminaries, soft, even and bright light output is achieved with low infrared and ultraviolet properties, no dazzling and glare.

Size : 708 x 388 x 60mm (27.9 x 15.3 x 2.36in)
Weight : 4 kg (8.8 lbs)
Power Draw : 120W
Power Supply : DC12 - 17V, AC Adapter 100 - 240V
Color Rendering Index : approximately 90
Color Temperature : can be changed within the range from 3200K to 5600K
LEDs :
750pcs - 3200K
750pcs - 5600K
Operating Temperature : -30~+55oC (-22~+131oF)

Light Output :
for 3200K -
4670 lux at 1.2m (3.9 ft)
1135 lux at 2.4m (7.9 ft)
700 lux at 3.2m (10.5 ft)

for 5600K -
5190 lux at 1.2m (3.9ft)
1860 lux at 2.4m (7.9 ft)
780 lux at 3.2m (10.5 ft)

for 3200K and 5600K-
9750 lux at 1.2m (3.9ft)
2430 lux at 2.4m (7.9 ft)
