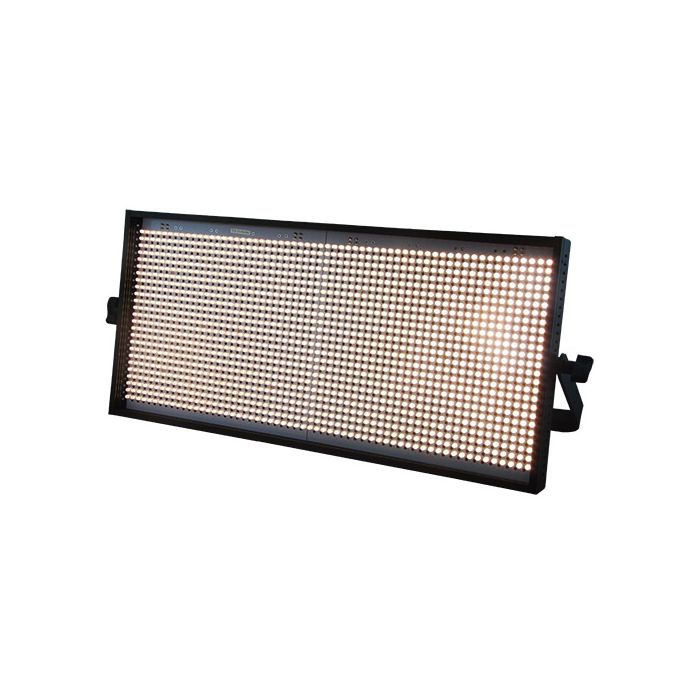

Dynacore ELF3T 1X1 Led Panel

by Dynacore
Verfügbarkeit: 14-20 days delivery
SKU
DY-ELF3T1X1

Tungsten light model ELF3-T

1.347,25 € 1.077,80 €

Paket beinhaltet

  • Dynacore ELF3T 1X1 Led Panel
Our ELF3 series LED lights are the new models we just launch, which feature ultra light weight and compact design.
3 models are available for choice now, Daylight Model ELF3-D, Tungsten light model ELF3-T, and Bicolor Model ELF3-D/T.
1500pcs high C.R.I LED lamps are adopted for each model, with projected life in excess of 50,000+ hours.
An ergonomic control knob on the back enables instant dimming from 100% to 0 with minimal color shift. Remote DMX 512 control is also available.
Runs on AC power or camera battery.
Dimmer
The brightness change is shown clearly on the screen by number from 0-100 when dimmer either by knob on the back or by DMX remote control. The knob is pressed down to select the brightness dimming and channel control orderly, which means press the knob 1 time, you can change the brightness by turning the knob and press it 1 more time to change the signal channel.

Back design for ELF3-D,ELF3-T,ELF3-D/T.
It can be powered by camera battery or AC adapter.

5 pin XLR DMX connector.
Male/Female connector can work as both output&input connector.


Dapter connector on the light body with dust proof cover.
It is designed to protect the electrode inside the connector to prevent electrode oxidation and short circuit.


Powering connector for adapter,with screw knob.
This connector can lock the plug&socket, prevent the falling off of adapter, provide safer power supplying

LED luminaries
Daylight Model is with 1500pcs 5600°K LED lamps, Tungsten light model is 1500pcs 3200°K LED lamps.
And Bicolor Model is with 750pcs 3200°K LED lamps and 750pcs 5600°K LED lamps, you may get any color temperature you need from 5600°K to 3200°K, or anytemperature inbetween.
2 diffusers are equipped, Soft light diffuser is equipped to minimize the dazzling light, and another diffusion sheet is equipped to improve the lighting output effect.

Model

Power Consumption

Power Supply

LED Lamp Quantity

Color Temperature

CRI

Dimension

Weght

Photometric

Dimming

ELF3-T

120W

DC 12-24V

1500PCS

3200°K

≧90

708x388x60 mm

4.00Kg

9800lux @1.2m
2360lux @1.8m
1440lux @3.2m

Manual/DMX512
