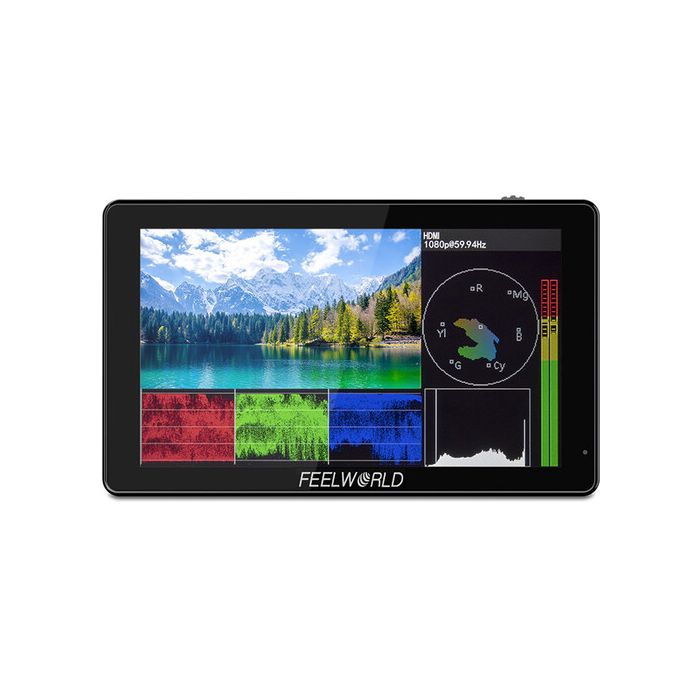

Feelworld LUT5 HDMI monitor

Upgrade your on-camera viewing experience while shooting in the field to a Full HD touchscreen monitor with the FeelWorld LUT5, a compact 5.5" IPS monitor outfitted with 3000 cd/m² auto-dimming brightness and a multitude of video assist functions. The LUT5 supports 4K HDMI in and out, and it uses Rec. 709 color standard with color calibration for accurate color reproduction and vivid image viewing. A single 1/4"-20 thread on the bottom of the monitor allows it to be attached to the included hot shoe mount and integrated into your run-and-gun setup.

The monitor boasts 1000:1 contrast and a built-in cooling system, as well as an F970 battery plate on the back panel. The operating system of the LUT5 includes tools for framing, focus, and exposure such as image flip, zoom, and anamorphic modes. Up to 50 custom 3D LUTs can be loaded into the interface using the SD card slot for intuitive color calibration. An 8 VDC output can distribute additional power to your DSLR or mirrorless camera to extend its runtime in the field.

Main Features

• Full HD 1920 x 1080 resolution
• 368 ppi pixel density prevents the eye from defining individual pixels
• 160° viewing angle ensures clear image as operator shifts position
• Easy touchscreen operation with shortcut keys
• Mini hot shoe mount included for easy installation
• Ambient light sensor for auto-dimming
• Built-in cooling system with multidimensional holes and low-power-consumption fan
• 8 VDC power out to your DSLR or mirrorless camera
• 3.5mm headphone output jack

Battery Compatibility

• Compatible with the following Sony NP-F batteries: F970, F960, F950, F930, F770, F750, F730, F570, F550, F530
• Working time with battery up to 2.5 hours

3D LUTs

• Load up to 50 custom files to the monitor using the SD card slot
• Makes color calibration of previous shooting more intuitive

Video Assist Functions

• Anamorphic mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
• Audio meter monitoring
• Center marker
• Check field (red, green, blue, mono)
• False color
• Histogram (brightness, RGB)
• Image flip
• Nine-grid
• Peaking focus assist (color switch capabilities)
• Pixel-to-pixel
• Ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
• Safety mode (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1)
• Waveform (RGB, YUV, Y)
• Zebra
• Zoom (100-300%)
