Feelworld Z73 SDI monitor

by FeelWorld

Verfügbarkeit: 14-20 days delivery

SKU

Z73

7" 1280 x 800 IPS LCD Monitor
HDMI/3G-SDI Inputs and Loop Outputs
RCA Audio Input; Composite Video I/O

517,75 € 414,20 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Paket beinhaltet

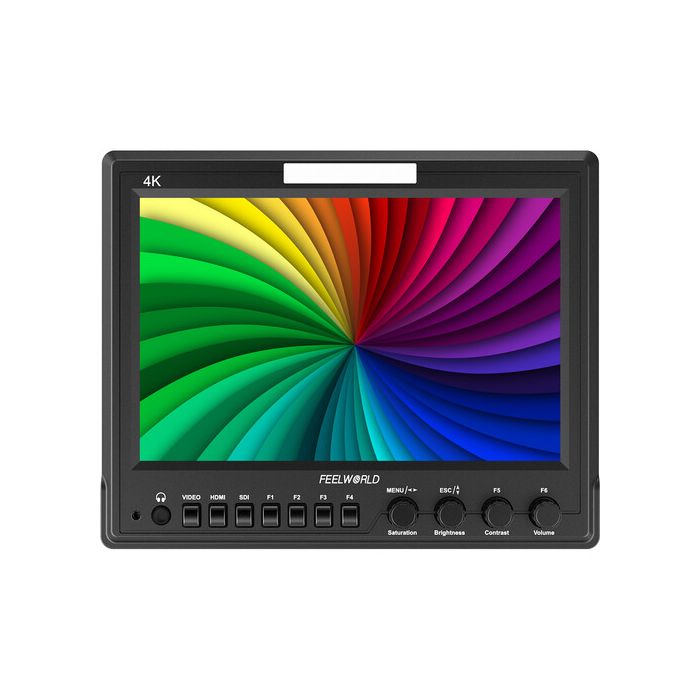

FeelWorld Z73 7" HDMI/3G-SDI On-Camera Field Monitor
L-Series Battery Plate
Tally Kit
Sun Hood
U-Shaped Bracket
Ball Head Shoe Mount
Mini-HDMI Cable

Details

Monitor up to DCI 4K video with the Z73 7" HDMI/3G-SDI On-Camera Field Monitor from FeelWorld. The IPS LCD panel features a 1280 x 800 resolution, 16:10 aspect ratio, 800:1 contrast ratio, and a 400 cd/m² measured brightness for easy viewing outdoors as well as indoors. The display provides 178° off-axis viewing, allowing you to see the image clearly without being directly in front of the monitor. The monitor's durable aluminum chassis is thin and light, and it features an L-series battery plate to power the monitor.

On the back of the monitor are HDMI, 3G-SDI, and composite input and loop-through output connections, as well as a 2RCA stereo input. A variety of image evaluation tools are built into the monitor, including a histogram, false color, and zebra for checking exposure, peaking and magnification for checking focus, and markers for ensuring correct framing. A 9-pin tally input is also on the back, and a tally kit with a terminal block adapter is included. All the controls are on convenient buttons and dials on the front of the monitor.

There are 1/4"-20 threaded mounting threads on the bottom and sides, and a U-shaped bracket is included to use the monitor on a desktop surface. Also included is a tilting ball head shoe mount for mounting the monitor on your camera. The monitor can be powered by either a 24V 4-pin XLR input or using a 12 VDC barrel input. Also included with the monitor is a sun hood for protection from glare and a mini-HDMI cable.

Key Features

High-resolution 1280 x 800
Monitor up to DCI 4K input
High-contrast of 800:1
Ultra-bright 400 cd/m²
178° wide-view-angle IPS Panel
Vectorscope
Waveform
Histogram
Peaking focus assist (red highlight over parts of the image in focus)
False color
Zebra exposure
Nine-grid
Scan mode (underscan, overscan)
Zoom (4x, 9x, 16x)
Anamorphic mode (1.3x, 2.0x, 2.0x mag)
Pixel-to-pixel
Center marker
Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
Marker color (red, green, blue, white, black)
Check field (red, green, blue, mono)
Image flip (H, V, H/V)
Image freeze
Zoom all
U/D and L/R zoom
Color temperature adjustment
Tally indicators (red, green, yellow)

Mehr Informationen

FeelWorld Z73 Specs

Display

Panel Type	IPS-Type LCD
Display Size	7.0" / 17.8 cm
Resolution	1280 x 800
Aspect Ratio	16:10
Viewing Angle	Horizontal: 178° (89/89) Vertical: 178° (89/89)
Touchscreen	No
Maximum Brightness	400 cd/m²
Contrast Ratio	800:1
Dot Pitch	0.117 x 0.117 mm
Pixels Per Inch (ppi)	215 ppi
Color Gamut	100% Rec. 709
Real-Time LUT Monitoring	No
Image Controls	Check Field, False Color, Focus Assist, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, R/G/B/Chroma Only, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

I/O

Video	1 x HDMI Type A (HDMI 1.4) Input 1 x HDMI Type A (HDMI 1.4) Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Output 1 x BNC (Composite) Input 1 x BNC (Composite) Output
Audio	1 x 2RCA Line Input 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	1
Power I/O	1 x XLR 4-Pin (24 VDC) Input 1 x Barrel (12 VDC) Input
Other I/O	1 x Tally (DE-9/DB-9)
Media/Memory Card Slot	None
Wi-Fi	None

Format Support

Video Format

HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p: 25
480p: 29.97
576i: 50
480i: 59.94
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
576i: 50
480i: 59.94

Power

DC Input Power	7 to 24 VDC
Battery Type	1 x L-Series (Interchangeable Mount)
Power Consumption	12 W

Mounting

Mounting-Hole Pattern	75 x 75 mm
Mounting	3 x 1/4"-20 Female

Environmental

Operating Temperature	-4 to 131°F / -20 to 55°C
Storage Temperature	-22 to 149°F / -30 to 65°C

General

Material of Construction	Aluminum
Dimensions	7.2 x 5.7 x 1.1" / 182 x 146 x 27 mm
Weight	26.10 oz / 740 g, Including Battery Plate 25.40 oz / 720 g

Packaging Info

Package Weight	3.5 lb
Box Dimensions (LxWxH)	9 x 8 x 4"
