Glidecam Gold Sled With V-Lock Base
by GlidecamSupports up to 38.0 lb (17.2 kg)
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Glidecam Gold Series Sled with V-Lock Base- Supports up to 38.0 lb (17.2 kg)

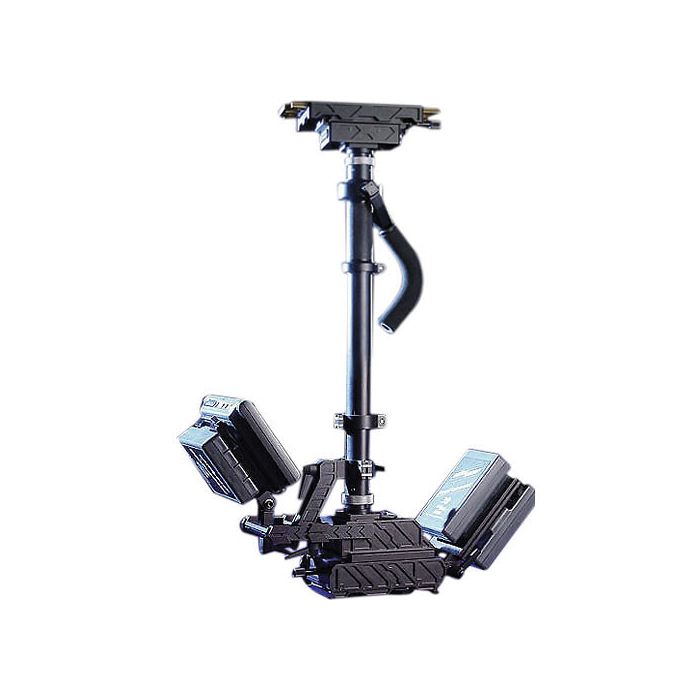

The new Glidecam Gold Sled supports film or video cameras weighing from 13 to 38 pounds. The Gold Sled incorporates sophisticated engineering and precision machining to make it lightweight and strong. It is designed with the same look and aesthetics as the Glidecam Gold Arm and Vest, and is available with one of the various daylight viewable, LCD monitors. The black parts of the Glidecam Gold Sled are anodized black with a few parts hard coated black.
Head
The precision, x-y adjustable Head assembly utilizes low friction Teflon which is incorporated into its hard coat finish. The Head assembly's back panel has a 3-pin Lemo 1B303 style with switchable 12/24 volt power, BNC video in, and a 2 pin Lemo 1B302 style with 12 volt out. The front panel has a 2-pin Lemo 1B302 style with 12 volt out, two 4-pin Lemo OB304 style with video/power out and one 4-pin Lemo OB304 video/power in connectors. The head also has a custom designed video distribution amp installed for clear video signals, and incorporates a dovetail camera plate for quick front to back balance.
Gimbal
The Gimbal incorporates 4 bearings inside the handle to yoke connection (the tilt axis). There are 2 bearings on each side of the yoke, providing 4 bearings for the roll axis. There are 2 central main bearings for the pan axis. This doubles the gimbal's thrust capacity and creates less than a .0002° deflection off true center. All Gimbal parts are machined within .0005° accuracy and are hard coat black. A very tight knurling has been machined onto the Gimbal Tube to improve handling. An easy to replace soft foam covers the handle grip.
Post
The Sled has a no-tools Telescoping Center Post. The top and bottom of the Post both have 90-degree rotation, and quick release connectors (bayonet style). This allows the Head and the Base of the Sled to be removed quickly. The custom shielded wire coil assembly inside the post has 8-pin Lemo style connectors on both ends for quick dis-assembly. The Center Post also incorporates an alignment pin as part of the no-tools clamp that controls the extension of the Telescoping Post. This pin keeps the upper and lower posts in alignment so the Head and Base of the Gold Sled are always parallel to each other.
V-Lock Style Base
The V-Lock Style Base for the Glidecam Gold Sled accepts all V-Lock brick batteries. These batteries deliver power to the base (for the monitor) and either 12 or 24 volts (switchable) to the head for use with video or film cameras.
Construction | Aluminum and stainless steel |
Load Capacity | 38.0 lb (17.2 kg) |
Dovetail Plate | Yes |
Post | Adjustable from 22" to 32" with Gimbal guide scale markings. |
Gimbal | Free floating, no tools precision three axis Gimbal (<.0002" deflection off true center) |
Dynamic Spin | 360 degree panning and tilting |
Head Assembly/Top Stage | Front: 2-pin Lemo 1B302 style with 12 volt out, two 4-pin Lemo OB304 style with video/power out and one 4-pin Lemo OB304 video/power in connectors Back: Lemo 1B303 style with switchable 12/24 volt power, BNC video in, and a 2 pin Lemo 1B302 style with 12 volt out. |
Monitor | Panasonic TC-7WMS1 |
