Lilliput FA1014/S Monitor

by Lilliput
Verfügbarkeit: 7-10 days delivery
SKU
LIL-FA1014/S

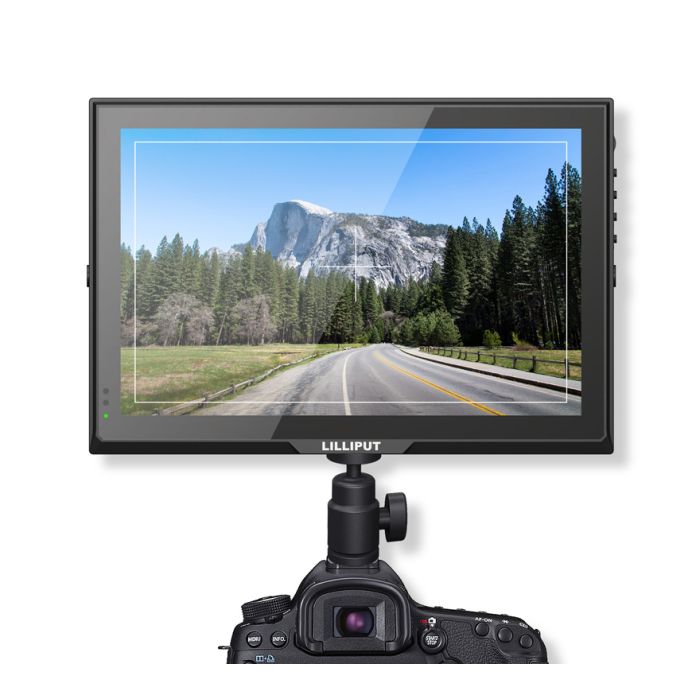

FA1014/S 10.1" IPS On-Camera 3G-SDI/HDMI Monitor from LILLIPUT is a field monitor that supports 1920 x 1080p, NTSC, and PAL video signals.

441,50 € 353,20 €
Features:
  • High contrast: 800:1,
  • High brightness: 350cd/m².
  • Lux auto brightness,
  • Integrated dustproof front panel,
  • I/O control interface,

Wide Viewing Angles (IPS Panel)

170° horizontal & 170° vertical wide viewing angles, it's available for people viewing from different angles with the same visual effect.

Bigger size, larger view.

10.1" IPS display panel with 1280×800 native resolution, twice viewing area than 7” display.

Lux Auto Brightness (optional)
A light sensor designed to detect ambient lighting conditions adjusts the panel's brightness automatically, which makes viewing more conveniently & saves more power.

Integrated dustproof front panel

FA1014/S front panel adopts intergrated front panel, which can prevent the screen from mild droplets & dust. It also available for outdoor environment.

Abundant interfaces: 3G-SDI, HDMI, VGA & AV input

FA1014/S includes 3G-SDI connection to meet a broadcast professional needs. Composite and component through BNC connectors and HDMI inputs covers all the bases for common broadcast applications. It even includes one HDMI output, so no extra expensive HDMI splitters are required.

 Display Screen   10.1" LED IPS
  Resolution   1280 × 800, suport up to 1920 x 1080
  Aspect Ratio   16:9
  Contrast Ratio   800:1
  Brightness   350cd/㎡
  Viewing Angle   170°/170° (H/V)
  Input Signal   3G-SDI, HDMI, VGA, AV & DVI (optional)
  Output Signal   3G-SDI, HDMI
  I/O port   1
  Speaker   1
  Input Voltage   DC 7-24V
  Battery   External (optional)
  Current   800mA
  Power Consumption   ≤12W
  Audio Output   ≤1W
  Operating Temperature   -0℃~50℃
  Storage Temperature   -20℃~60℃
  Dimension(LWD)   250×170×32.3 mm
  Weight   660g
