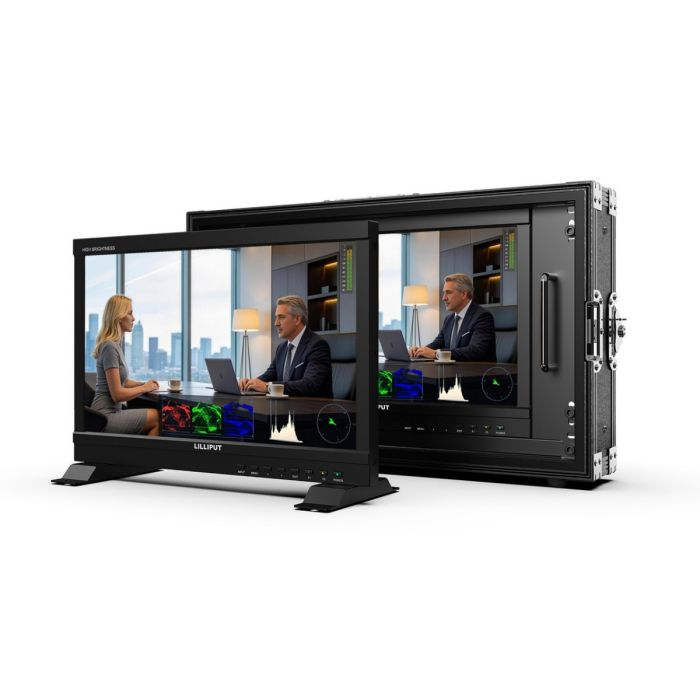

Lilliput PVM160S-H 15.6" Professional Video Monitor
by LilliputThe LILLIPUT PVM160S-H is a high-brightness 15.6" professional broadcast monitor designed to give cinematographers, videographers, and directors absolute precision on set. Boasting a sunlight-viewable 1200 nits Full HD panel, it ensures a clear picture under any lighting condition.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Lilliput PVM160S-H 15.6" Professional Video Monitor
- 15V 4A DC Adapter
- Base Bracket
- Manual
The LILLIPUT PVM160S-H is a high-brightness 15.6" professional broadcast monitor designed to give cinematographers, videographers, and directors absolute precision on set. Boasting a sunlight-viewable 1200 nits Full HD panel, it ensures a clear picture under any lighting condition.
With versatile 3G-SDI and HDMI 2.0 inputs and loop outputs, this cost-effective monitoring powerhouse bridges the gap between field mobility and studio accuracy. Packed with broadcast-essential features—including Waveform, Vectorscope, 3D-LUT support, HDR, and custom Gammas—the PVM160S-H provides everything you need for flawless exposure and precise color calibration.
1200NITS HIGH-BRIGHT BROADCAST MONITOR
Broadcast high-bright monitor for professional video camera & camcorder.
Application for video post-production & making movies.
OUTDOOR FILMMAKING
A portable production monitor designed for outdoor filmmaking/broadcast live, the 1200 nits of high brightness screen effectively combats sunlight and allows for accurate color reproduction.
HDR INTERFACES
SUPPORT ST2084 300/1000/10000 / HLG
Making lighter and darker details to be displayed more clearly. Under 1200 nits brightness, it can show the effect of 1+1>2.
OPTIONAL BATTERY PLATES
The back of broadcast monitor is equipped with VESA 100mm installation options, which is compatible with the installation of most of light stands and battery plates. The battery plate can be selected from V-lock battery plate and Anton Bauer battery plate.
- DC IN
DC 8–24V input - UPGRADE
For LUT or upgrade - 3G-SDI INPUT & LOOP OUTPUT
Support up to 1080p60 - HDMI 2.0 INPUT & LOOP OUTPUT
Support up to 2160p60 - EARPHONE JACK
3.5mm audio output
| Display | |
| Panel | 15.6" |
| Physical Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Brightness | 1200 cd/m² |
| Contrast | 1000:1 |
| Viewing Angle | 160° / 160° (H/V) |
| HDR | ST2084 300/1000/10000 / HLG |
| Supported Log formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog / User… |
| Look Up Table (LUT) support | 3D LUT (.cube format) |
| Calibration | Calibration to Rec.709 with optional calibration unit |
| Video input | |
| SDI | 1 × 3G |
| HDMI (Input) | 1 × HDMI 2.0 |
| Video loop output | |
| SDI | 1 × 3G |
| HDMI | 1 × HDMI 2.0 |
| Supported formats | |
| SDI | 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60 |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| Audio In/Out | |
| HDMI Color Depth | 2ch 48 kHz 24-bit |
| SDI Color Depth | 8ch 24-bit |
| Ear Jack | 3.5 mm |
| Built-in Speakers | 1 |
| Power | |
| Input Voltage | DC 9–24 V |
| Power Consumption | 39 W (15 V) |
| Compatible Batteries | V-Lock ili Anton Bauer Mounts (opcionalno) |
| Input Voltage (Battery) | 14.8 V nominal |
| Environment | |
| Operating Temperature | 0 °C – 50 °C |
| Storage Temperature | –20 °C – 60 °C |
| Other | |
| Dimensions (L × W × D) | 376 × 247.7 × 49.3 mm |
| Weight | 3.15 kg |
