Secced Superman Camcrane(9.6m)
by SeccedVery responsive head with smooth movement, matching the level of famous brand in crane and remote head industry.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Secced Superman Camcrane(9.6m)

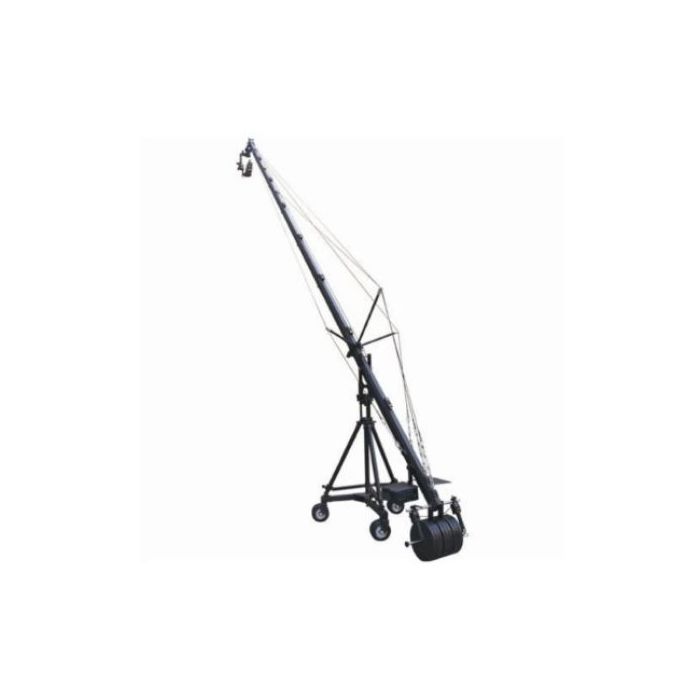

The 9.6m Superman Camera Crane features a highly responsive remote head with smooth and precise movement, designed to meet the demands of professional film, television, and live production.
A built-in slip ring enables unlimited pan rotation of the remote head, allowing smooth and continuous camera movement without cable restrictions.
The remote head has a maximum payload of 20 kg and is compatible with most ENG cameras equipped with Canon or Fujinon lenses.
Both pan and tilt movements can be remotely controlled, with adjustable speed and damping for smooth and precise operation. The system also provides zoom, focus, and iris control, as well as zoom speed adjustment and reverse direction control for zoom and focus.
The crane offers an arm reach of 8.1 m, with a maximum lens height of 6.9 m and a minimum lens height of 5.4 m. The distance from the column to the rear end is 1.5 m.
The remote head provides a tilt range of -55° to +45°, offering excellent flexibility for a wide variety of shooting angles.
Integrated pan and tilt locks ensure safe and secure operation of the crane arm. A heavy-duty tripod and dolly provide excellent stability, with a column height of 1.73 m and a dolly width of 0.82 m.
The specially designed base and support post of the 9.6m Superman Crane provide enhanced stability and safety during professional operation.
Thanks to its modular design, the crane is quick and easy to assemble. Two people can complete the full setup in approximately 30 minutes.
An integrated V-Mount battery interface allows the crane to operate even when an external power source is not available.
The complete system has a shipping weight of approximately 222 kg.
Scope of application
Applied circumstances
This crane system could be used for drama and movie production, and shooting of big show, like concert, reality show etc. It either can be used in the big studio or shooting outdoor such as OB of large show or sport events.
9.6m Superman crane has been widely used for 2008 Olympic game and it has done brilliant job of broadcasting the games in every stadium.
| Specification | Details |
| Arm Reach | 8.1 m |
| Distance from Column to End | 1.5 m |
| Maximum Lens Height | 6.9 m |
| Minimum Lens Height | 5.4 m |
| Height of Column (with Tripod & Dolly) | 1.73 m |
| Tilt Range | -55° / +45° |
| Dolly Width | 0.82 m |
| Shipping Weight | 222 kg |
