Sennheiser XSW 2-835-A
by SennheiserFor Live Sound Applications
e835 Evolution Microphone Capsule
True Diversity Receiver
Up to 12 Compatible Channels
External Antennas
Automatic Frequency Synchronization
Remote Channel for Easy Setup
Tunable Over a Range of UHF Frequencies
Includes Rackmount Kit
AA Batteries, Power Supply & Pouch
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet

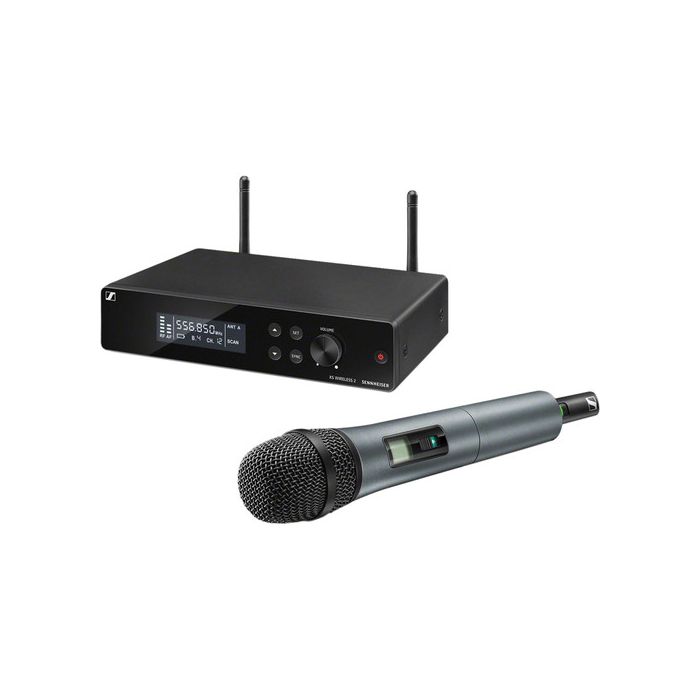

- Sennheiser XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule (A: 548 to 572 MHz)
- EM-XSW 2 Receiver
- SKM 835-XSW Handheld Transmitter
- Sennheiser MZQ1 Microphone Clamp for SKM100, 300 and 500
- NT 12-5 CW Power Supply
- Rackmount Kit
- Protective Pouch
- 2 x AA Batteries
The XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule (A: 548 to 572 MHz) features a true diversity receiver, and a handheld transmitter with an intuitive LCD display. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for singers and presenters.
The unit has automatic frequency management and synchronization so you don't have to scramble to find an available channel. The transmitter's e835 capsule uses a cardioid polar pattern, which is part of the evolution series and designed for withstanding tougher, live-stage conditions.
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization
- Remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
| Wireless Technology | Analog UHF |
| Included Transmitters | 1 x Handheld |
| Diversity | True Diversity |
| RF Frequency Band | A: 548 to 572 MHz |
| RF Bandwidth | 24 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 100' / 30.5 m (Line of Sight) |
| Max Transmitters per Band | 12 |
| Built-In Recorder | No |
| Timecode Support | No |
| Control App Support | No |
| Encryption | None |
| Modulation | Wideband FM |
| Receiver Type | Tabletop / Rackmount |
| Mounting Options | Rackmount |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x External, BNC (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Mic Output 1 x 1/4" TS Female Unbalanced Output |
| Gain Range | 40 dB (5 dB Steps) |
| Phantom Power Protection | None |
| Frequency Response | 50 Hz to 16 kHz |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| RF Principle | Double Superheterodyne |
| Squelch | Adjustable, 3 to 28 dBμV |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | VDC Included |
| DC Input Power | 12 VDC at 300mA |
| Display & Indicators | 1 x LCD (AF Level, Frequency, Group, Level) |
| Housing | Metal |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 7.9 x 1.7 x 5" / 200 x 42 x 127 mm |
| Weight | 24 oz / 680 g |
| Transmitter Type | Handheld |
| RF Output Power | 10 mW |
| Audio I/O | None |
| Pad | None |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Signal Processing | None |
| Frequency Response | 80 Hz to 16 kHz |
| Sync Method | 2.4 GHz QPSK |
| Antenna | 1 x Internal |
| Approximate RF Sensitivity | 1.5 mV/PA |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) |
| Display & Indicators | 1 x LCD (Battery Status, Channel, Power) |
| Housing | ABS |
| Microphone Type | Handheld |
| Color | Black |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Range | 80 Hz to 14 kHz |
| THD | < 0.9% |
| Sensitivity | 1.5 mV/Pa |
| Length | 10.2" / 260 mm |
| Diameter | 2.0" / 50 mm |
| Weight | 8.6 oz / 245 g |
| Package Weight | 5.2 lb |
| Box Dimensions (LxWxH) | 13.75 x 12.7 x 3.65" |
