Sennheiser XSW 2-CI1-GB
by SennheiserFor Bass, Guitar & Keyboard Instruments
Robust Instrument Cable and Transmitter
True Diversity Receiver
Up to 12 Compatible Channels
External Antennas
Automatic Frequency Synchronization
Remote Channel for Easy Setup
Tunable Over a Range of UHF Frequencies
Includes Rackmount Kit
AA Batteries, Power Supply & Carry Pouch
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Sennheiser XSW2-CI1 Wireless 2 Instrument System (GB: 606-630 MHz)
- EM-XSW 2 Receiver
- SK-XSW Bodypack Transmitter
- 1/4" to 1/8" Instrument Cable
- 2 x AA Batteries
- NT 12-5 CW Power Supply
- Rackmount Kit
- Protective Pouch

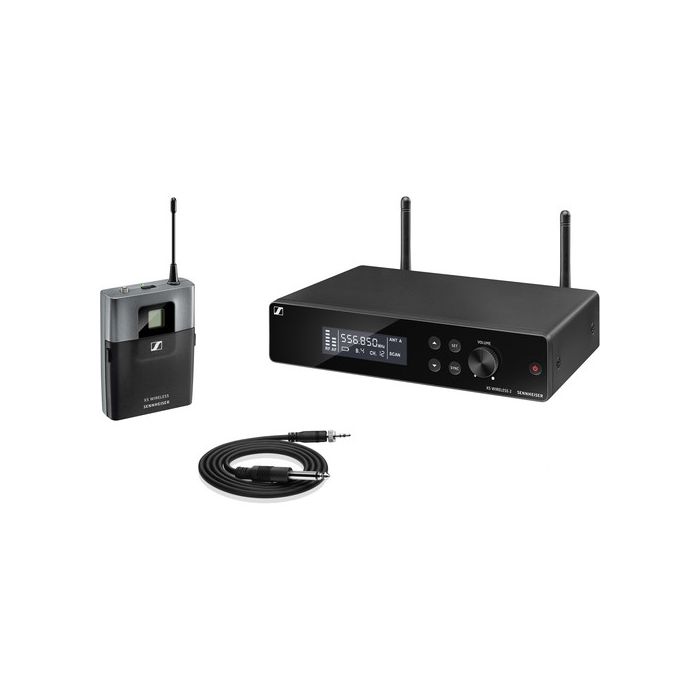

The XSW2-CI1 Wireless 2 Instrument System features a true diversity receiver, a compact bodypack transmitter, and a robust instrument cable with a 1/4" jack. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for electric bass, guitar, and keyboard instruments for live-sound applications.
The unit is built with automatic frequency management and synchronization so you don't have to scramble to find an available channel. The system offers an intuitive LCD display, two external antennas, a compact bodypack transmitter, and an instrument cable. Additionally, built with a metal receiver housing, the system also includes a rackmount kit, power supply, carry pouch, and two AA batteries.
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization
- Remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 96 |
| Included Transmitters | 1 x Bodypack |
| Diversity | True Diversity |
| RF Frequency Band | GB: 606-630 MHz |
| RF Bandwidth | Up to 24 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Transmitters per Band | 12 |
| Control App Support | No |
| Modulation | Wideband FM |
| SNR | ≥103 dBA |
| THD | ≤0.9 % |
| Receiver Type | Tabletop / Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x External, BNC (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Mic/Line Output 1 x 1/4" TS Unbalanced Output |
| Gain Range | 40 dB |
| Audio Output Level | XLR Output: +12 dBu 1/4" Output: +6 dBu |
| USB/Lightning Connectivity | None |
| RF Principle | Double Superheterodyne |
| Squelch | Adjustable, 3 to 28 dBμV |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 300 mA (Included) |
| Display & Indicators | 1 x LCD (Channel, Frequency, Group, Level, RF Level, Sync) |
| Housing | Metal |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 7.9 x 1.7 x 5" / 200 x 42 x 127 mm |
| Weight | 24 oz / 680 g |
| Transmitter Type | Bodypack |
| RF Output Power | 10 mW |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
| Included Cable Connector | 1/4" TS |
| Pad | None |
| Muting | Off/On Switch |
| Audio Input Level | 2.6 V RMS (Max, Line Level) 1.5 V RMS (Max, Mic Level) |
| Gain Range | 0 to -30 dB (10 dB Steps) |
| Signal Processing | None |
| Cable Tone Simulation | None |
| Frequency Response | 80 Hz to 16 kHz (Mic) 50 Hz to 16 kHz (Line) |
| Sync Method | 2.4 GHz QPSK |
| Antenna | 1 x Flexible Whip |
| Approximate RF Sensitivity | 52 dB / 3 µV |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) |
| Approx. Battery Life | 10 Hours |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x LCD (Battery Status, Power, Sync) |
| Housing | ABS |
| Dimensions | 2.8 x 3.8 x 1.1" / 71 x 96 x 28 mm |
| Weight | 3.4 oz / 96 g |
| Package Weight | 4.83 lb |
| Box Dimensions (LxWxH) | 13.75 x 13.6 x 3.45" |
