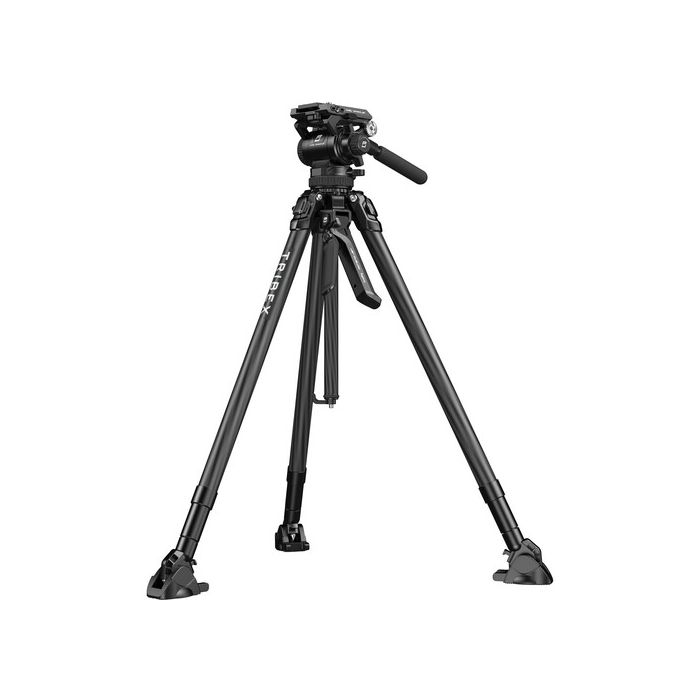

SmallRig x Potato Jet TRIBEX Hydraulic Carbon Fiber Tripod Kit 4259

1. The X-Clutch hydraulic technology for instant single-action extension of all legs;
2. Stepless tilt and pan damping, the 4-step dynamic counterbalance for precise control;
3. The compact design fits perfectly in standard luggage

SmallRig x Potato Jet TRIBEX Hydraulic Carbon Fiber Tripod Kit (Origin Series) 4259 is designed for professional outdoor videography, offering swift and convenient operation. Featuring X-Clutch hydraulic technology, squeezing a single clutch allows all legs to rapidly unfold, adjust the angle, and automatically lock in just one second, providing photographers with a seamless experience. The clutch can also be adjusted to 45° and 90° to accommodate various shooting scenarios. Constructed with carbon fiber, both the legs and center column ensure lightweight design while delivering exceptional stability and high load-bearing capacity. Operating altitude ranges from 27cm (10.6in) to 168cm (66.1in), and a compact storage length of 79cm (31.1in). The center column features a quick-lock design for easy height adjustments, with a detachable Allen wrench built into the other side of the hook for convenient camera equipment assembly/disassembly, and the option for low-angle shooting at a minimum height of 27cm (10.6in). The compact design of the tripod allows it to fit in any standard luggage (28").

The kit includes a compact and lightweight hydraulic fluid head featuring an adjustable 4- step counterbalance system. When the gravitational center height is set at 55mm (2.2 inches), the 4-step counterbalance system effectively stabilizes cameras or other equipment (up to 6kg / 13.2lbs) while providing precise control over camera tilt. The fluid head allows seamless, stepless adjustments for tilt and pan damping, catering to filmmakers' varying shooting preferences. The fluid head adopts a new Touch-and-Go quick release mount plate design which does not require alignment and is more efficient than traditional slide-in plates. The plate is compatible with 501 quick release plate and DJI RS series quick release plates, facilitating swift transitions between stabilizers and tripods during filming. The user-friendly detachable telescopic handle enables easy control of the head when attached to either the left or right side, ensuring compatibility with any grip. The fluid head also features three 1/4"-20 threaded holes for attaching accessories like magic arms, along with a built-in flat head screw for convenient camera installation and removal. The tripod also includes quick-release rubber feet with integrated spikes, allowing for seamless adaptation to various terrains.

Designer: Ferlin, He Peiwen

Note:

1. Before shooting, make sure the head and tripod locking status are in normal condition.
2. Avoid use in sandy or dusty environments to prevent the risk of damage.
3. After using the short center column, mounted on the center column, need to ensure
   that the locking status
4. Max payload of head: 6kg / 13.2lb (center column raised, leg angle at 23°, height at
   168cm / 66.1in).
5. The weight capacity of the tripod head is not the absolute limit; it varies depending on
   the type of equipment, lenses used, accessories attached, and changes in the center of
   gravity.
6. Max payload of tripod: 25kg / 55lbs (center column not raised, tripod head detached,
   leg angle at 23°, height at 141cm / 55.5in).
7. After soaking in water, it needs to be dried before use.

Compatibility

• 501PL Quick Release Plate
• DJI RS Series Quick Release Plate
