Sommer Cable DMX & Power SC-Monolith 1, power 3x1,50 mm2; DMX 2x0,25mm2, black
by Sommer Cable- Parallel control for lighting boards through one cable via power line and DMX signal
- Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
SC-Monolith 1
DMX & Power
When the lights begin to dance...
the people stare in wonder! But there is quite a bit of technology behind it. And cables do not play the least important part here. The power for the spotlights and the control signals for their movements must be transmitted via cables. Both cables are combined in a robust cable hose, providing the input lead for the lighting desk and other DMX 512-equipped control devices.
The SC-Monolith 1 POWER/DMX consists of a 3 x 1,50 mm² power cable and one DMX 512 line. Each DMX wire pair is shielded by a tinned helical copper mesh. The power cable was developed in compliance with VDE and has its own jacket for extra safety.
Of course the AES/EBU cable can also be used as a microphone cable or as a feed line for active loudspeaker systems.
Advantages:
Parallel control for lighting boards through one cable via power line and DMX signal
Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
Very good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding
Miscellaneous:

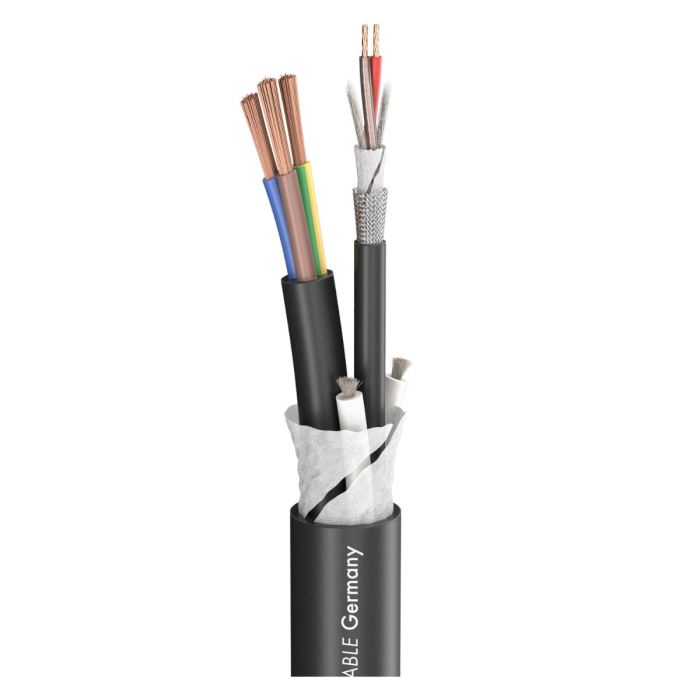

Note: two white filling elements are integrated in the cable (see cable illustration)
Application:
Control line for DMX lighting consoles (wave impedance of 0 Ω)
Analogue + digital audio multipair with power supply
|
Article number
|
500-0051-1 |
| Name | SC-Monolith 1 |
| EAN | 4,05E+12 |
| Properties | Digital 110 Ω AES / EBU |
| Properties | OFC oxygen free copper |
| Properties | Analog |
| Application area | Installation |
| Application area | Studio / Broadcast |
| Application area | Mobile outdoor / indoor |
| Application area | Stage / live |
| Application | DMX & Power |
| Colour | black |
| Colour detailed | black |
| Signal transmission | symmetrical |
| Construction | [(3LIY1,5mm²)Y+ 1x(2LI2Y0,25mm²)CY]VLY |
| Construction (power) | (3LIY1,5mm²)Y |
| Jacket material | PVC |
| Jacket Ø [mm] | 13 |
| Jacket Ø (power) [mm] | 6,2 |
| Jacket Ø (AES/EBU, DMX) [mm] | 4 |
| Number of Channels (power) | 1 |
| Number of Channels (AES/EBU, DMX) | 1 |
| Inner conductor (power) | 3 |
| Inner conductor (AES/EBU, DMX) | 2 |
| Inner conductor (power) [mm²] | 1,5 |
| Inner conductor (AES/EBU, DMX) [mm²] | 0,25 |
| Inner conductor Ø (power) [mm] | 1,38 |
| Inner conductor Ø (AES/EBU, DMX) [mm] | 0,56 |
| AWG (power) | 15 |
| AWG (AES/EBU, DMX) | 23 |
| Shielding (AES/EBU, DMX) | Braided mesh, tin-plated |
| Shielding factor [%] | 85 |
| Copper strands (power) | 48 |
| Copper strands (AES/EBU, DMX) | 14 |
| Copper strand Ø (power) [mm] | 0,2 |
| Copper strand Ø (AES/EBU, DMX) [mm] | 0,15 |
| Wire insulation material (power) | PVC |
| Conductor insulation Ø [mm] | 0 |
| Conductor insulation Ø (power) [mm] | 2,3 |
| Conductor insulation Ø (AES/EBU, DMX) [mm] | 1,25 |
| Weight per 1 m [g] | 200 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0,64 |
| Style variant | round |
| Packing | bulk stock |
| Temperature min. [°C] | -30 |
| Temperature max. [°C] | 70 |
| Width [mm] | 13 |
| Height [mm] | 13 |
| Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] | 61 |
| Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] | 15,8496 |
| Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] | 123 |
| Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] | 27,1272 |
| Impedance [Ω] | 0 |
| Surge impedance (AES/EBU, DMX) [Ω] | 110 |
| Insulation resist. per 1 km [GΩ] | 0 |
| Insulation resist. per 1000 feet [GΩ] | 0 |
| Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] | 0,02 |
| Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] | 0,0305 |
| Conductor resistance per 1 km (power) [Ω] | 80 |
| Conductor resistance per 1000 ft. (power) [Ω] | 24,384 |
| BPVo-Euroclass | Fca |
|
