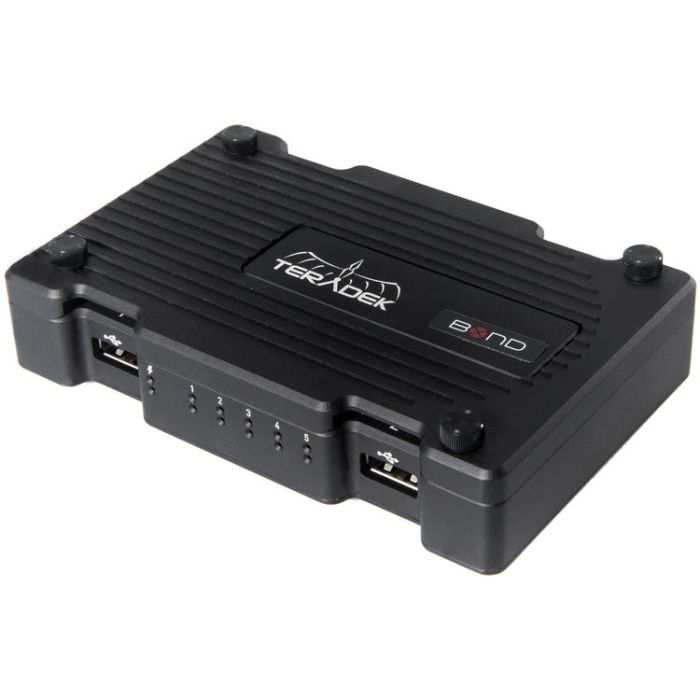

Teradek Bond 318 Cellular Bonding Device USB

Verfügbarkeit: 7-10 days delivery
SKU
TRD-10-0318

The Bond expansion module converts the Cube 600 (H.264), 700 (HEVC), and 800 (HEVC 4K) series into a professional cellular bonding device

Normalpreis 17.000,00 HRK Sonderangebot 16.150,00 HRK 12.920,00 HRK

Paket beinhaltet

  • 1 x 2-pin Connector to 30 W AC Adapter 6ft Cable with International Plugs
  • 5 x USB Modem Clips
  • 1 x USB Modem Plate
  • 4 x Thumb Screw Black 4-40 x 3/8 in length

Product Highlights

  • Allows a Cube Encoder to Bond 5 USB Modems
  • Secure Modem Mounting
  • Built-in Li-IOn Battery for swapping
  • Compatible with Teradek Node Modems and Core

Bonding

Up to 5 USB devices
Ethernet (built into Cube)
WiFi (built into Cube)
Up to 4 iOS devices
Compatible with Cube 605/655, 715/755,
805/855


Dimensions

1"W x 3"D x .4.7"H
[24 x 77 x 120mm]
Weight

7.90z (224g)


Construction

Milled Aluminum (Chassis),
regulation-compliant PCB


Configuration Interfaces

Controlled through Cube
4x Powered USB 2.0 host port


Usb Interface Functionality

4x Powered USB 2.0 host port


Battery

Internal Li-Ion Battery


Nominal Power Consumption

0.5W, up to 5W per USB device
Power supplied by Cube



Operating Temperature

Operating: -10ºC to 50ºC
Storage: -40ºC to 90ºC


Humidity:

Operating: 5% to 95% (non-condensing)
Storage: Max. 90%
