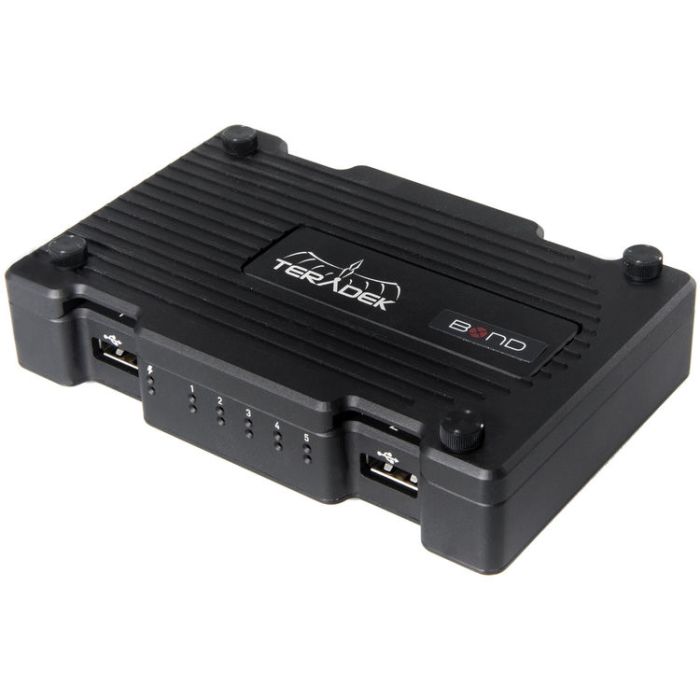

Teradek Bond 319 Cellular Bonding Device 4 Pin Locking
by TeradekThe Bond expansion module converts the Cube 600 (H.264), 700 (HEVC), and 800 (HEVC 4K) series into a professional cellular bonding device.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- 1 x 2-pin Connector to 30 W AC Adapter 6ft Cable with International Plugs
- 5 x USB Modem Clips
- 1 x USB Modem Plate
- 4 x Thumb Screw Black 4-40 x 3/8 in length
The Bond expansion module converts the Cube 600 (H.264), 700 (HEVC), and 800 (HEVC 4K) series into a professional cellular bonding device.*
- Combine bandwidth from up to 5 cellular modems, 4 iPhone LTE connections, and ethernet to build a streaming pipeline with enough redundancy to ensure your stream reaches its destination in high quality no matter where you’re going live from. The Bond expansion module adds 4 additional USB modem connections to your Cube encoder.
- The built-in battery powers your streaming solution for a short time during external battery swaps so your live feed doesn’t goes down.
- Node is a high performance 3G / 4G / LTE modem that provides exceptional connectivity and weather resistance compared to traditional USB modems. The modem can operate on every 3G / 4G/ LTE data band for any region around the world. Paired with a Bond system, Node offers state of the art connectivity without breaking the bank.
- Core is a complete IP video management ecosystem in the cloud. The platform allows you to route, configure, monitor, archive, and transcode all of your Teradek professional codecs in one place from anywhere in the world. A Core subscription is required for Bond users to demux incoming bonded streams.
- Choose between USB or 4-pin connectors for your Bond expansion module. The USB model allows you to use both traditional carrier-branded USB modems and Teradek Nodes, while the 4-pin connector option offers superior linkage to the chassis and weather resistance for Node modems only.
*The Bond expansion module is not compatible with Cube 100 and 200 series encoders.
Bonding
Up to 5 USB devices
Ethernet (built into Cube)
WiFi (built into Cube)
Up to 4 iOS devices
Compatible with Cube 605/655, 715/755,
805/855
Dimensions
1"W x 3"D x .4.7"H
[24 x 77 x 120mm]
Weight
7.90z (224g)
Construction
Milled Aluminum (Chassis),
regulation-compliant PCB
Configuration Interfaces
Controlled through Cube
4x Powered USB 2.0 host port
Usb Interface Functionality
4x Powered USB 2.0 host port
Battery
Internal Li-Ion Battery
Nominal Power Consumption
0.5W, up to 5W per USB device
Power supplied by Cube
Operating Temperature
Operating: -10ºC to 50ºC
Storage: -40ºC to 90ºC
Humidity:
Operating: 5% to 95% (non-condensing)
Storage: Max. 90%
