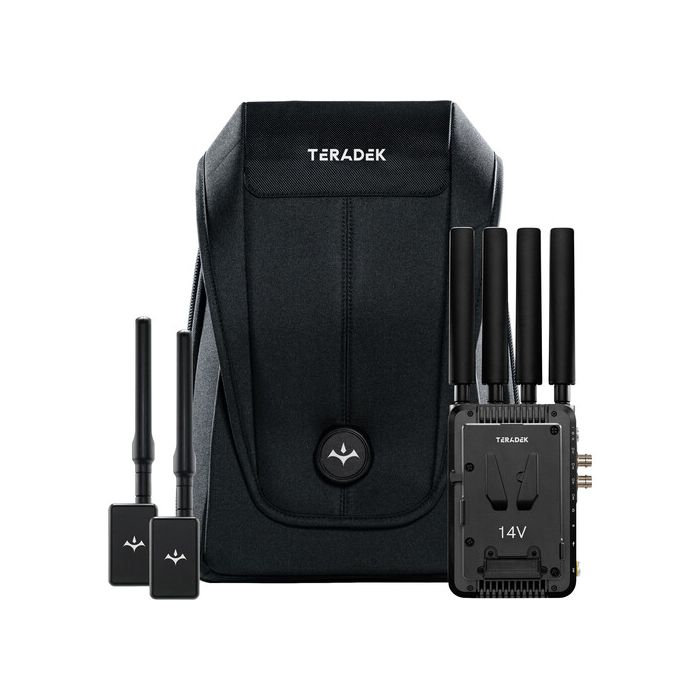

Teradek Prism 859 Prism 859 Prism Mobile Backpack - V Mount - 2x LTE

Broadcast to the cloud or a CDN right from your ENG or cine camera on location with the Prism Mobile Backpack with 2 x 4G LTE Node Modems from Teradek. This versatile backpack provides the Prism Mobile encoder with 12G-SDI and HDMI 2.0 inputs and multiple transmission output options that support high-resolution video up to 10-bit 4K HDR 4:2:2 with stereo or 5.1 surround sound. It supports high-quality, low-latency HEVC/H.265 and AVC/H.264 streams via cloud applications such as Teradek Core or RTMP/RTSP/SRT to servers and CDNs.

The output options include two 4G LTE modems with dual switchable SIM slots (service plans sold separately), and additional external Node modems via USB, cellular phones, Ethernet, or Wi-Fi networks. It supports bonding with any combination of streaming outputs up to a total of nine networks. You can also record your stream onto an SD card using the internal SD card slot. Management options include the OLED display or a web UI via LAN or Wi-Fi, and there is a Prism App for iOS that also provides configuration and control options.

The unit is powered via a 2-pin power input with the included power supply, or via the included Vmount battery plate to provide power via a separately available professional Vmount battery. It can be mounted onto a camera or cage using its 1/4"-20 mounting threads.

Key Features

• Durable backpack with Prism Mobile and internal cabling preinstalled
• 12G-SDI and HDMI inputs
• Includes two 4G LTE modems for network bonding; up to six simultaneous cellular connections supported
• Low-SWaP Design streams for hours
• Video quality up to 4K HDR | 4:2:2 | 10-bit
• Stream in HEVC/H.265 and AVC/H.264 protocols: SRT, RTMP(S), MPEG-TS, and RTSP
• SD card recording with store and forward
• Native camera-to-cloud integrations
• Camera-back features included Vmount battery plate
• Stereo/5.1 surround sound

Network Bonding Support

• The Prism Mobile supports bonding for a combination of up to nine network inputs:
• Four cellular phones
• Two internal Node modems
• One external modem
• Two ethernet networks

Teradek Core Cloud-Based Management Platform

• Network Bonding
• Stream Routing and Distribution
• Remote Management and Monitoring
• Transcoding and Overlays
• Archiving and Live Playout

Cloud Integration

• Teradek Core
• Frame.io
• Sony Ci
• PIX

Video Resolutions Supported

• DCI 4K: 23.98/24/25/29.97/30/50/59.94/60
• UHD 4K: 23.98/24/25/29.97/30/50/59.94/60
• 1080p: 23.98/24/25/29.97/30/50/59.94/60
• 1080i: 50/59.94/60
• 1080PsF: 23/24/25/29/30
• 720p: 50/59.94/60
• 576i
• 480i
