Teradek Ranger Micro 2500 3G-SDI/HDMI - Wireless TX No Mount

Teradek Ranger Micro 2500 3G-SDI/HDMI - Wireless TX No Mount

by Teradek

Verfügbarkeit: 7-10 days delivery

SKU

TRD-10-2541

Supports 4.9 to 6.4 GHz Frequency Bands
Transmit Video up to 2500' Line of Sight

7.487,50 € 5.990,00 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Paket beinhaltet

Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter
2 x N-Type Antenna

Details

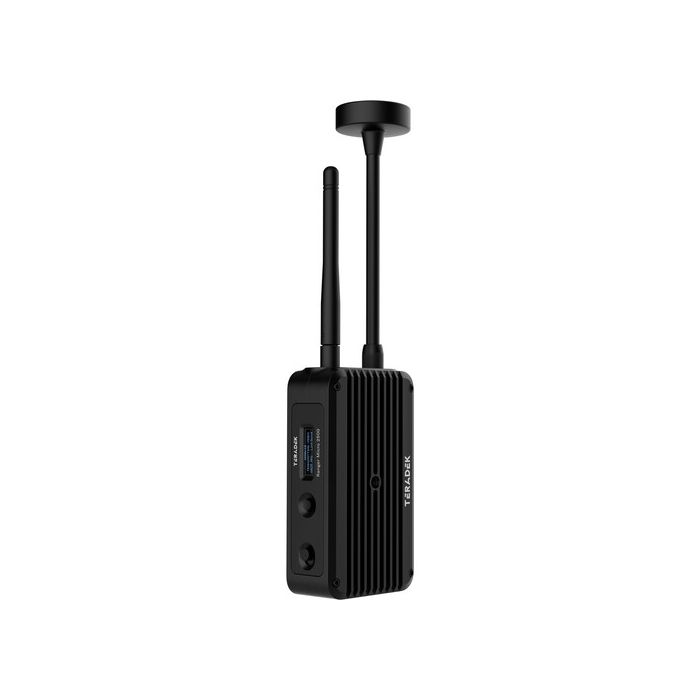

Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter

Transmit lossless HD video up to 2500' with the Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter can input up to 1080p60 video over HDMI or 3G-SDI with 10-bit HDR support and transmit up to 1080p60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum. The transmitter unit provides a powerful signal that can travel up to 2500' line of sight. It also features an SDI loop output for local monitoring, and one horizontal and one vertical N-type antenna.

The transmitter supports transmission of up to 1080p60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes. It can transmit visually lossless video to any Ranger series receiver with zero delay. The transmitter supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

The unit is powered using a 2-pin DC input, and there are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Key Features

Premium Wireless Hardware

State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission. This model boasts a maximum range of 2500', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.

Ranger Compatibility

Pair any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.

Zero Delay

When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 1080p60, providing a visually lossless and engaging experience for your viewers.

Configure Ranger from PC or Phone

Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
Bluetooth 5 LE connection support
Pair transmitters and receivers with the touch of a button
Measure and analyze the frequency and amplitude of a signal
View live channel strength for licensed/unlicensed bands
Monitor your live RF spectrum bandwidth

Wide Transmission Frequency Range

With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.

Mehr Informationen

Video I/O	1 x HDMI 2.0 Input
	1 x BNC (3G-SDI) Input
	1 x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI: 2-Channel
	SDI: 2-Channel
Power Consumption	9 W
Mounting	1 x 1/4"-20 Female
