Teradek Ranger Micro 5000 3G-SDI/HDMI - Wireless RX No Mount
by TeradekSupports 4.9 to 6.4 GHz Frequency Bands
Receive from up to 5000' Line of Sight
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless Receiver
- 5 x 2 dBi Antenna

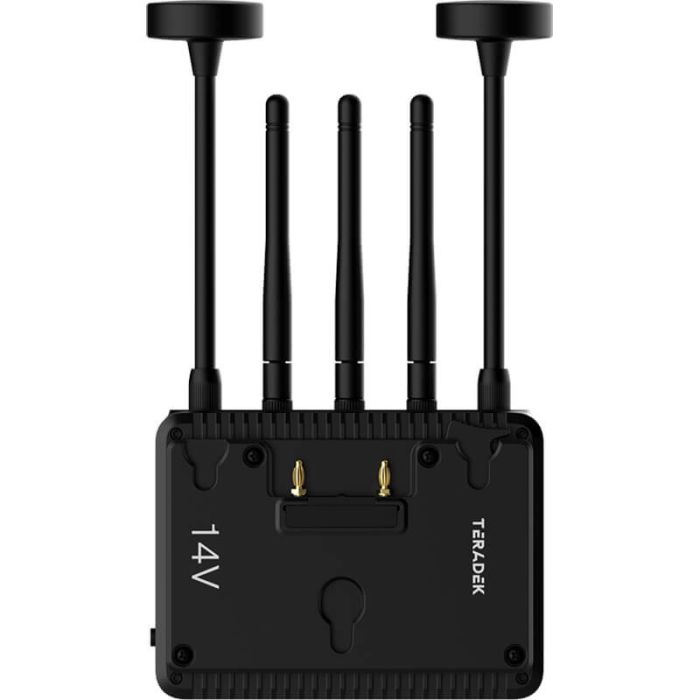

Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless Receiver
Transmit lossless HD video up to 5000' with the Ranger Micro 5000 3G-SDI/HDMI Wireless Receiver from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this receiver can receive up to 1080p60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum, and it can output up to 1080p60 video over HDMI or 3G-SDI with 10-bit HDR support. The receiver unit supports a powerful signal that can travel up to 5000' line of sight. It also features five external antennas.
When pairing with a Ranger transmitter, this unit can receive up to 1080p60 video alongside up to five other receivers, and it features built-in AES-256 encryption that protects your video from prying eyes. It can receive visually lossless video from any Ranger series receiver with zero delay. The receiver supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
The unit is powered using a 2-pin DC input, and there are 1/4"-20 and M3 mounting threads to mount onto a variety of cameras, cages, or rigs.
Key Features
Premium Wireless Hardware
State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission. This model boasts a maximum range of 5000', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.
Ranger Compatibility
Pair any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.
Zero Delay
When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 1080p60, providing a visually lossless and engaging experience for your viewers.
Configure Ranger from PC or Phone
- Install the Launchpad app on your macOS or Windows computer, or on an iOS/Android phone
- Bluetooth 5 LE connection support
- Pair transmitters and receivers with the touch of a button
- Measure and analyze the frequency and amplitude of a signal
- View live channel strength for licensed/unlicensed bands
- Monitor your live RF spectrum bandwidth
Wide Transmission Frequency Range
With the number of wireless devices on the rise and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.
Video I/O |
1 x HDMI 2.0 Output
|
1 x BNC (3G-SDI) Output
|
|
Embedded Audio |
HDMI: 2-Channel
|
SDI: 2-Channel | |
Latency | < 0.01 ms |
Video Format |
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
1080i: 60/59.94/50
|
|
720p: 60/59.94/50
|
|
576p: 50 | |
480p: 60/59.94 | |
576i: 60 | |
480i: 59.94 | |
SDI (10-Bit 4:2:2 YCC)
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
1080i: 60/59.94/50
|
|
720p: 60/59.94/50
|
|
576p: 50 | |
576i: 50 | |
480p: 60/59.94 | |
480i: 59.94 | |
Power Consumption | 11 W |
Mounting |
1 x 1/4"-20 Female
|
