Tilta Nucleus-M Wireless Lens Control System Partial Kit V

Tilta Nucleus-M Wireless Lens Control System Partial Kit V

by Tilta

Verfügbarkeit: 14-20 days delivery

SKU

T-WLC-T03-K5

Nucleus-M Right Handgrip
Nucleus-M Left Handgrip
ARRI-Standard Rosette Adapters

1.077,75 € 862,20 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Paket beinhaltet

Tilta Nucleus-M Handgrip (Left)
Tilta Nucleus-M Handgrip (Right)
2 x Tilta Nucleus-M FIZ Lens Control Motor
- 19mm Rod Adapter
- 19mm to 15mm Bushing
2 x Tilta DSLR Lens Follow Focus Adapter
Tilta Nucleus-M D-Tap to 7-Pin Motor Power Cable
Tilta Nucleus-M 7-Pin Motor-to-Motor Connection Cable (21.65")
2 x Tilta ARRI-Standard Rosette Adapters for Nucleus-M Handgrip (L&R)
- 2 x Mounting Screw
- 2 x Tightening Toggle
Tilta Nucleus-M Battery Charger
- AC Power Cable

Details

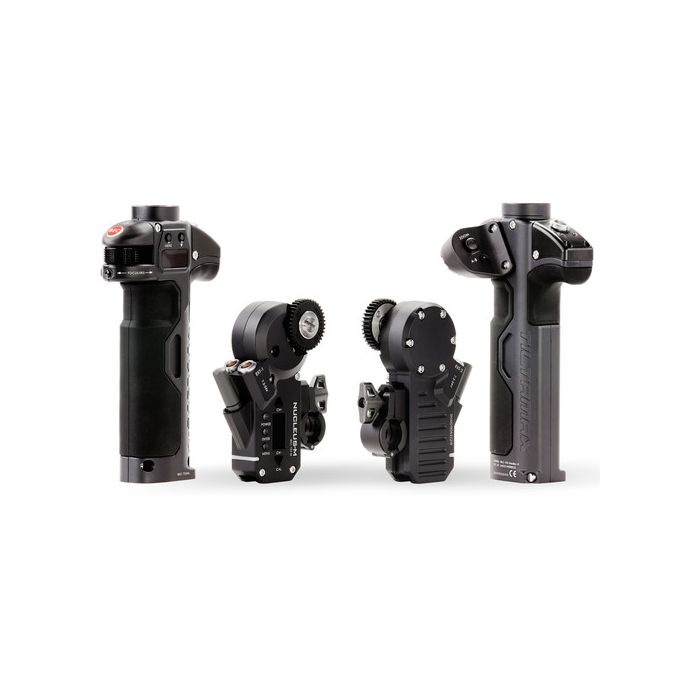

The Tilta Nucleus-M Wireless Lens Control System Partial Kit V enables a camera operator to hand-hold their camera and pull focus and iris wirelessly. The kit includes left and right handgrip controllers, ARRI rosette adapters, two Nucleus-M motors, two removable lens belts (DSLR Lens Follow Focus Adapters), two motor power cables, and a battery charger. If you are using a lens that does not have standard cine-style gears, then use the included lens belts to add gears to your lens.

This partial kit is a dual-axis system, typically controlling focus and iris, but the hand control units will allow you to control an additional motor (not included) for zoom control when using a zoom lens. The system can wirelessly pull focus from up to 1000' away, and available 18650 batteries (not included) can power each hand unit for approximately 10 hours on a single charge. The first motor is powered via the included D-Tap to 7-pin cable, the second motor daisy-chains to the fist via the 7-pin to 7-pin cable for power.

Tilta Nucleus-M Handgrip (Left)

The Tilta left-side Wireless Handgrip provides fingertip lens control while also functioning as a handgrip support for your camera rig. This component of the separately available Nucleus-M FIZ (focus/iris/zoom) system enables you to split control between the handgrip and the hand unit as you prefer.

With a wireless control range of up to 1000', the Wireless Handgrip can be used for drone or car-mounted shots in addition to handheld configurations. Mount the handgrip using its ARRI-style rosette or use an optional adapter to mount to your gimbal. Use this grip with a separately available right-side grip for full focus, iris, and zoom control of cine-style lenses.

Handgrip features include three knob-rotation settings, optional adapters for either bar- or ring-based gimbals, LED indicators, and an LCD display. An optional thumb joystick is available separately for the left handgrip. Powered by two 18650 lithium-ion batteries (not included), the handgrips can maintain a single charge for up to two days. As part of the Nucleus-M system, the Wireless Handgrip provides a run/stop function for select cameras.

Features

Customizable focus, iris, and zoom control
Run/stop control for select cameras
ARRI-style rosette mounting and optional gimbal adapter mounts
1000' wireless control range
85, 180, and 310° knob rotation settings
LCD display and LED indicators

Mehr Informationen

Tilta Nucleus-M Handgrip (Left) Specs

Current	0.1 A
Voltage	Battery: 7.2 V External: 7.2-14.8 V
Port	Power/Communication: 4-pin
Rotation	85, 180, 310°
Battery Type	18650
Operating Frequency	2.4 GHz
Emission Power	10-100 MW
Maximum Transmission Distance	33-328' / 10-100 m
Operating Temperature Range	-4 to 122°F / -20 to 50°C
Material of Construction	Aluminum alloy, stainless steel ABS plastic, rubber
Dimensions	With Thumb Unit: 6.9 x 3.3 x 2.3" / 17.6 x 8.5 x 6. cm Without Thumb Unit: 6.9 x 3.3 x 1.2" / 17.6 x 8.5 x 3.1 cm
Weight	With Thumb Unit: 12.5 oz / 355 g Without Thumb Unit: 12 oz / 340 g

Packaging Info

Package Weight	0.59 lb
Box Dimensions (LxWxH)	8.8 x 4.05 x 2"

Tilta Nucleus-M Handgrip (Right) Specs

Current	0.1 A
Voltage	Battery: 7.2 V External: 7.2-14.8 V
Port	Power/Communication: 4-pin
Rotation	85, 180, 310°
Battery Type	18650
Operating Frequency	2.4 GHz
Emission Power	10-100 MW
Maximum Transmission Distance	33-328' / 10-100 m
Operating Temperature Range	-4 to 122°F / -20 to 50°C
Material of Construction	Aluminum alloy, stainless steel ABS plastic, rubber
Dimensions	With Thumb Unit: 6.9 x 3.3 x 2.3" / 17.6 x 8.5 x 6. cm Without Thumb Unit: 6.9 x 3.3 x 1.2" / 17.6 x 8.5 x 3.1 cm
Weight	With Thumb Unit: 12.5 oz / 355 g Without Thumb Unit: 12 oz / 340 g

Packaging Info

Package Weight	0.65 lb
Box Dimensions (LxWxH)	9.5 x 4.15 x 2.7"

Tilta Nucleus-M FIZ Lens Control Motor Specs

Gear Mod	0.8
Gear Pitch	32
Number of Gear Teeth	35
Face Width	0.4" / 10 mm
Operating Frequency	2.4 GHz
Maximum Range	1640' / 500 m (unobstructed)
Emission Power	30-100 MW
Current	Quiescent: 0.10 A, 14.8 V Conventional: 0.5 A, 14.8 V
Voltage	7.2-24 V
Rod Compatibility	19, 15 mm
Noise	15 dB
Operating Temperature Range	-4 to 122°F / -20 to 50°C
Material of Construction	Aluminum alloy, stainless steel, ABS plastic
Dimensions	4.50 x 3.25 x 1.38" / 11.43 x 8.26 x 3.49 cm
Weight	6.7 oz / 190 g (motor only) 7.9 oz / 225 g (with 15mm rod adapter) 7.8 oz / 221 g (with 19mm rod adapter)

Packaging Info

Package Weight	0.495 lb
Box Dimensions (LxWxH)	6.45 x 4.65 x 1.4"

Tilta DSLR Lens Follow Focus Adapter Specs

Material of Construction	Silicone and plastic
Compatibility	Tilta Nucleus-M, Nucleus-Nano Most DSLR lenses
Dimensions	Not supplied by manufacturer
Weight	Not supplied by manufacturer

Packaging Info

Package Weight	0.05 lb
Box Dimensions (LxWxH)	3.9 x 3.75 x 0.5"

Tilta Nucleus-M D-Tap To 7-Pin Motor Power Cable Specs

Connectors	D-Tap, 7-pin LEMO-type
Length	23" / 58.4 cm
Weight	1.1 oz / 32 g

Packaging Info

Package Weight	0.13 lb
Box Dimensions (LxWxH)	6.25 x 5.75 x 1.15"

Tilta Nucleus-M 7-Pin Motor-To-Motor Connection Cable (21.65") Specs

Material of Construction	Aluminum Alloy, Copper, Rubber
Connectors	7-Pin
Length	21.65" / 55.0 cm

Packaging Info

Package Weight	0.095 lb
Box Dimensions (LxWxH)	4.85 x 2.8 x 0.6"

Tilta ARRI-Standard Rosette Adapters For Nucleus-M Handgrip (L&R) Specs

Material of Construction	Aluminum alloy, stainless steel
Dimensions	2.3 x 2 x 1.5" / 5.7 x 5.1 x 3.8 cm
Weight	2.5 oz / 72 g

Packaging Info

Package Weight	0.35 lb
Box Dimensions (LxWxH)	4.5 x 2.9 x 1.7"

Tilta Nucleus-M Battery Charger Specs

Power Input	100-240 VAC, 50/60 Hz, 0.15 A 5 VDC, 2 A
Power Output	4.2 VDC, 650 mAh
Material of Construction	Plastic

Packaging Info

Package Weight	0.6 lb
Box Dimensions (LxWxH)	7.5 x 5.8 x 1.7"
