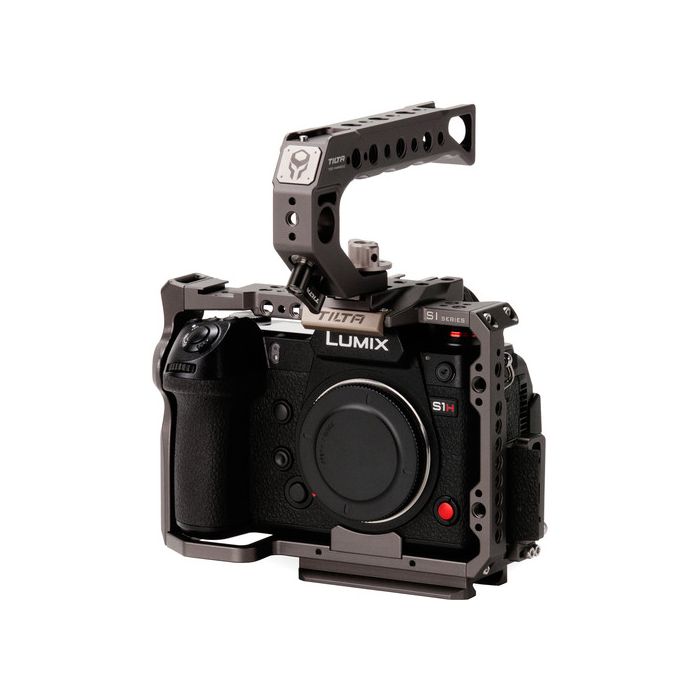

Tilta Tiltaing Panasonic S series Kit A-Tilta Grey
by Tilta- Full Cage for Panasonic S1/S1R/S1H
- QR Top Handle, HDMI Cable Clamp
- 1/4"-20 Threads, Shoe Mounts
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Tilta Full Camera Cage for Panasonic S1/S1R/S1H Series (Tilta Gray)
- Tiltaing Hand Strap for Sony a7 and a9 Camera Cage
- NATO-Style Rail
- Limited 2-Year Warranty
- Tilta Quick Release Top Handle for BMPCC 4K Cage (Tilta Gray)
- Cage Screw with Spring
- Rod-Locking Screw
- Limited 2-Year Warranty
- Tiltaing Manfrotto-Type Quick Release Plate
- Tiltaing Arca-Type Quick Release Plate
- HDMI Cable Clamp
- HDMI Male to Female Cable
Featuring a Tilta gray finish and a variety of mounting options, this Tiltaing Camera Cage Kit A from Tilta is designed to provide protection and accessory mounting for your Panasonic S1, S1R, or S1H series camera. The kit includes a full camera cage, a quick release top handle with multiple mounting options, an HDMI male to female cable, an HDMI cable clamp, an Arca-type quick release plate, and a Manfrotto-type quick release plate.
The cage features multiple 1/4"-20 threads and two shoe mounts for accessories. The top handle also features two additional shoe mounts, multiple 1/4"-20 and 3/8"-16 threads, and a 15mm rod port. The bottom plate features multiple mounting holes for attaching to a tripod, shoulder rig, or gimbal using the included Manfrotto- or Arca-type quick release plates. An HDMI cable clamp is also included to protect your camera cable from pulling. The hand strap provides an additional level of safety when handling your camera.
Tilta Full Camera Cage for Panasonic S1/S1R/S1H Series (Tilta Gray)
This Tilta Gray Full Camera Cage from Tilta is a formfitting aluminum cage that protects your Panasonic S1, S1R, or S1H camera during production without impeding access to your camera's functions, displays, ports, or battery. The camera is secured in the cage using a 1/4"-20 mounting screw.
Two integrated shoe mounts provide convenient attachment points for articulating arms, lights, external monitors, and other accessories. The cage also incorporates multiple 1/4"-20 and 3/8"-16 threads around the sides for attaching accessories. A removable NATO-style rail on the bottom of the cage allows you to quickly mount and unmount the cage onto NATO-style clamps and baseplates. When you remove the rail, multiple threads on the bottom of the cage allow you to attach a variety of baseplates, such as Tilta's Manfrotto- or Arca-type plates.
Key Features
- Compatible with the Panasonic S1, S1R, or S1H camera
- Retains access to ports, battery, and display
- Multiple 1/4"-20 and 3/8"-16 accessory threads
- 1/4"-20 camera mounting screw
- Removable NATO-style rail that fits Tilta baseplates
- 1/4"-20 mounting threads on bottom for tripod mounting
- Two integrated shoe mounts
- Hand strap included
- Aluminum and stainless steel construction
Tilta Quick Release Top Handle for BMPCC 4K Cage (Tilta Gray)
Carry and stabilize your Blackmagic Design Pocket Cinema Camera 4K with this lightweight Tilta gray Quick Release Top Handle from Tilta. The quick release handle's features include two shoe mounts, a 15mm rod port, multiple 1/4"-20 and 3/8"-16 threads, and a 3/8"-16 thread with locating pins.
The aluminum and stainless steel handle attaches to your camera cage using the included spring-loaded thumbscrew. The 15mm rod port features a rod locking screw to add a rod to the handle. There is one 3/8"-16 thread with locating pins on the front of the handle to mount a separately available Tilta cage rod mount.
Tilta Full Camera Cage For Panasonic S1/S1R/S1H Series (Tilta Gray) Specs
|
Support Type |
Cage |
|
Grip Type |
None |
|
Camera Compatibility |
Panasonic DC-S1, Panasonic DC-S1, Panasonic DC-S1H, Panasonic DC-S1R |
Mounting
|
Accessory Mounting |
Multiple x 1/4"-20 Thread, Multiple x 3/8"-16 Thread |
|
Tripod Mounting |
1/4"-20 Thread |
|
Shoe Mounting |
2 x Cold Shoe |
|
Rosettes |
None |
General
|
Materials |
Aluminum, Steel |
|
Dimensions |
Not Specified by Manufacturer |
|
Weight |
Not Specified by Manufacturer |
Packaging Info
|
Package Weight |
1.11 lb |
|
Box Dimensions (LxWxH) |
9.2 x 5.9 x 3.5" |
Tilta Quick Release Top Handle For BMPCC 4K Cage (Tilta Gray) Specs
|
Item Type |
Topside Handle with Cheeseplate-Style Handle |
|
Rotation |
No |
Mounting
|
Attachment Method |
Attaches via 1 x Built-In Screw (Unspecified Type) |
|
Compatibility |
Attaches onto Camcorder Support for: |
|
Rod Standard |
15 mm Single Rod |
|
Rod Ports |
1 x 15 mm Rod Port |
|
Accessory Mounting |
Multiple x 1/4"-20 Thread |
|
Shoe Mounting |
2 x Built-In Cold Shoe Slot |
|
Rosettes |
None |
|
Rail Mounting |
None |
General
|
Materials |
Aluminum, Steel |
|
Dimensions |
5.6 x 2.8 x 0.8" / 14.3 x 7.1 x 1.9 cm |
|
Weight |
6.1 oz / 172.8 g |
Packaging Info
|
Package Weight |
0.5 lb |
|
Box Dimensions (LxWxH) |
7.1 x 4.2 x 1.8" |
