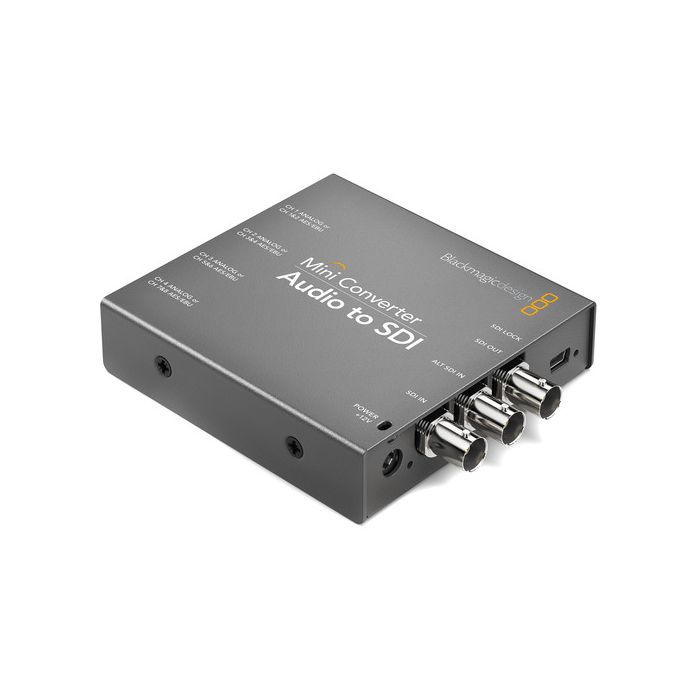

Blackmagic Design Mini Converter - Audio to SDI 2

Verfügbarkeit: Auf Lager
SKU
CONVMCAUDS2

Embed audio into 3G/HD/SD SDI sources in up to 1080p60 resolution with the Mini Converter Audio to SDI from Blackmagic Design

Normalpreis 1.850,00 HRK Sonderangebot 1.757,50 HRK 1.406,00 HRK

Paket beinhaltet

  • Blackmagic Design Mini Converter Audio to SDI
  • 12V Universal Power Supply
  • Set of International Socket Adapters (for All Countries)

Embed audio into 3G/HD/SD SDI sources in up to 1080p60 resolution with the Mini Converter Audio to SDI from Blackmagic Design. Connect up to four channels of balanced analog or eight channels of AES/EBU audio via four 1/4" jacks.

In addition to a dedicated SDI input the converter also features a redundant SDI input that allows you to run a back-up cable in case the first is lost in any way. This is useful in mission critical applications, especially outdoors or in crowded venues where there a higher chance of damage to the cable.

SDI Input 1 x SDI on BNC (switchable between 3G/HD/SD)
1 x 3G/HD/SD SDI redundant input (automatically switches over if main SDI input is lost)
Audio Input 4 x 1/4" jacks support 4 channels of balanced analog audio or 8 channels of balanced AES/EBU digital audio
SDI Output 1 x SDI on BNC (switchable between 3G/HD/SD)
SDI Auto Switching Auto-detection of 3G/2K/HD/SD SDI SDI
Updates and Configuration Via USB 2.0 high speed (480 Mbps)
Reclocking Yes
SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‐B, SMPTE 425M, ITU‐R BT.656, ITU-R BT.601
SDI Video Rates SDI video connections are switchable between HD and SD
SDI Video Sampling 4:2:2, 4:4:4
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit
SDI Color Precision 4:2:2, 4:4:4
SDI Color Space YUV, RGB
SDI Auto Switching Automatically selects between 3G/HD/SD
SDI Format Support 1080p/i at 60/59.94/50
1080p at 30/29.97/25/24/23.98
1080PsF30/29.97/25/24/23.98
720p60/59.94/50
525i59.94 NTSC
625i50 PAL
2K Format Support 2K DCI 25p/24p/23.98p
2K DCI 25PsF/24PsF/23.98PsF
Software Control Mac OS X and Windows software upgrade via USB
Internal Software Upgrade Via included updater application
Operating System Mac OS X 10.11 El Capitan, macOS Sierra or later
Windows 8.1 or Windows 10
Settings Control Mini Switches or USB software
Power Supply +12 V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption 8.4 W
Operational Voltage Range 12 VDC
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 113°F (-20 to 45°C)
Relative Humidity 0 to 90% non-condensing
Dimensions 4.5 x 3.6 x 0.9" (11.5 x 9.2 x 2.3 cm)
Weight 7.6 oz (215 g)
