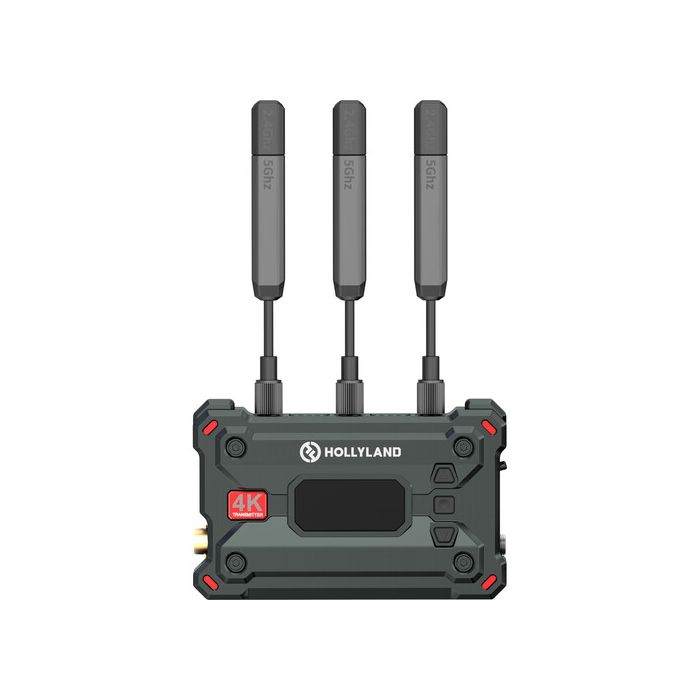

Hollyland Pyro S TX
by HollylandAdd 4K30 wireless video transmission to your production using the versatile Pyro S 4K HDMI/SDI Wireless Video Transmitter from Hollyland.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmitter
- 3 x Hollyland Paddle Antenna for Pyro Series (2.4/5 GHz)
- Hollyland Rotatable Cold Shoe Adapter Mount for Wireless Unit
- USB-C OTG Adapter
Add 4K30 wireless video transmission to your production using the versatile Pyro S 4K HDMI/SDI Wireless Video Transmitter from Hollyland. The transmitter provides HDMI and SDI inputs and features extremely low 50 ms latency that accepts line-of-sight transmission from up to 1300' away. When using broadcast mode using up to four receivers and two mobile devices, the system supports up to 650' away.
The Pyro H is equipped with a USB-C port that can power the unit and also supports plug-and-play UVC operation, so it can seamlessly plug into a computer and utilize the wireless video for streaming and conferencing applications. The built-in frequency scanner allows you to select the clearest frequency for your transmission and features a bright LCD screen for configuration. In addition to the multifunction USB-C port, the unit can be powered using a separately available locking DC power adapter or an L-series type battery using an optional battery plate.
Pyro S at a Glance
- 1 Transmitter & 4 Receivers
- 1,300ft (400m)
- LOS Range
- 0.06s Low Latency
- 2.4GHz & 5GHz Dual Band
- Auto Frequency
- Hopping
- HDMI & SDI
- Multiple Power Supply Options
- UVC & RTMP Streaming
- 4K30 Transmission
- Ready Out of the Box
Wifi Broadcast Technology
More Flexible. Meet More Monitoring Needs.
Pyro S's WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.
Broadcast Mode
Activated
650ft (200m)
When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers.
Deactivated
1,300ft (400m)
When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.
*Connection to the monitoring app may affect the transmission range.
New Solution
Faster. Longer. Stronger.
With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro S features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 50ms thanks to upgraded chips and optimized video encoding/decoding algorithms.
Dual Boosts. Less Latency and More Stability.
Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.
Smooth Mode
The bitrate dynamically adjusts in this mode to achieve the lowest 50ms latency for ultra-long-distance transmission.
HD Mode
Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m).
ADH
Auto Dual-Band Hopping
With our developed Auto Dual-Band Hopping (ADH) technology, Pyro S operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.
Dual Band
2.4GHz & 5GHz.
Pyro S offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro S, you won't have to worry about video drop issues any more.
Intelligent
Auto Frequency Hopping
Pyro S is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.
Seamless Connectivity
Both HDMI & SDI Input/Output.
Pyro S is the perfect solution for professional shooting and smaller commercial projects. The transmitter features one HDMI input and one SDI input, while the receiver provides one SDI output and one HDMI output.
High Definition
4K. Crisp and Sharp.
With 4k/30fps transmission capabilities, Pyro S presents images with superior clarity, detail, and realism, making it competent for professional applications, such as filmmaking.
Effortless Streaming
The Real-Time Shooting Scenes
USB Video Class.
UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring capture cards or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.
RTMP Streaming
With RTMP (Real-Time Messaging Protocol), just input your wireless key and connect your wireless network card to easily stream video to popular live broadcasting or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and others. Pyro S will offer you a straightforward and convenient live streaming experience.
* Some network card models may not be compatible.
Smooth Transmission
Smart Channel Scan.
Upon startup, Pyro S automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.
Preset Grouping & Pairing
Easy Setup. Ready to Go.
Pyro S supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time really matters to crew members.
Magnesium Alloy Shell
Lighter. Stronger. Stiffer.
The shell of Pyro S is made of aerospace-grade magnesium-aluminum alloy, which is more robust, rigid, 30% lighter, and better at heat dissipation than aluminum-only models.
Fan Control
Efficient Cooling System.
Pyro S offers a two-speed fan adjustment. The cooling system helps to regulate device temperature, preventing overheating and ensuring stable signal transmission.
Auto Mode
The device automatically adjusts the fan speed based on its temperature, ensuring effective heat dissipation.
Low-Speed Mode
The fan operates at the lowest speed, reducing noise generation. This mode is suitable for environments where low noise levels are required.
Full Color
LCD Display.
The LCD display on both units offers vibrant, vivid colors and an easy-to-read interface. With it, you can monitor the status and setting information, including battery level, current group, transmission resolution, frame rate, current channel, and more.
Say Goodbye to Low Battery Anxiety
Multiple Power Supply Options.
Each unit can support power input from an NP-F battery or a DC power source.
Item | Parameters |
Port | DC Input: 2.0mm Core Socket |
HDMI Input: HDMI 1.4b | |
SDI Input: 3G SDI | |
USB-C: USB 2.0 | |
OTG Antenna: SMA Male | |
Power Supply | Battery Voltage Range: 6.8 - 8.4V |
DC Voltage Range: 6 - 16V | |
Power Consumption | < 11W |
Net Weight | 207g |
Dimensions | L × W × H: 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.) |
Input/Output Format | HDMI Input |
720p50/59.94/60 | |
1080i50/59.94/60 | |
1080p23.98/24/25/29.97/30 | |
1080p50/59.94/60 | |
3840*2160 30/25/24/29.97/23.98 | |
SDI Input | |
1080p60/59.94/50 | |
1080i60/59.94/50 | |
1080p30/29.97/25/24/23.98 | |
720p60/59.94/50 | |
1080psf23.98/24 1080psf25/29.97/30 | |
Operating Frequency | 5 GHz Frequency Band |
5.150 - 5.250 GHz | |
5.250 - 5.350 GHz | |
5.470 - 5.725 GHz | |
5.725 - 5.850 GHz | |
2.4 GHz Frequency Band | |
2.412 - 2.484 GHz | |
Transmit Power | < 23 dBm |
Receiver Sensitivity | / |
Latency | as low as 50ms |
Bandwidth | 20 MHz (Broadcast: 40 MHz) |
Working Temperature | -10 - 45℃ (working) |
-40 - 60℃ (storage) |
