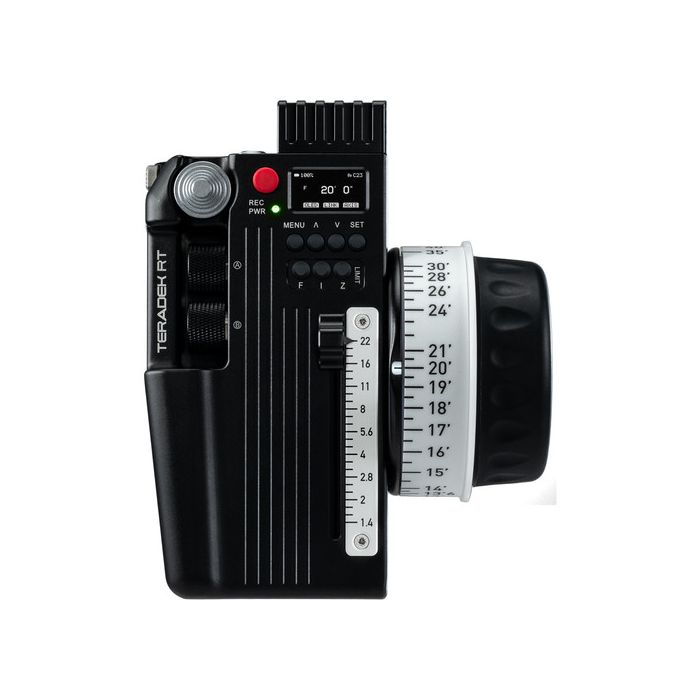

Teradek RT CTRL.3 - Three-Axis Wireless Lens Controller - Metric
by Teradek- Wireless Focus, Iris, and Zoom Control
- Compatible with RT Motors and Receivers
- Up to 5000' Wireless Range
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- 1 x CTRL.3 Three-Axis Handcontroller
- 5 x White Disc Type B [11-1459]
- 1 x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
- 1 x SmallHD Monitor Interface Cable 5pin conn to USB Micro_0.4m
- 1 x Teradek Case Large - Black with RT Motion 3 motor1 x Pre-Marked focus Ring - 10" minimum focus
- 1 x Pre-Marked focus Ring - 20" minimum focus
- 1 x Pre-Marked focus Ring - 3'6" minimum focus
- 1 x Pre-Marked focus Ring - 6' minimum focus
- 1 x Pre-Marked focus Ring - 10' minimum focus
- 1 x Pre-Marked Iris Ring - 1-32
- 1 x Iris Strip Slider 0 (1-22)
- 1 x Iris Strip Slider 10 (1.4-22)
- 1 x Iris Strip Slider 20 (2-22)
- 1 x Iris Strip Slider 30 (2.8-22)
Overview
CTRL.3 is a feature-rich, powerful 3-axis wireless controller with built-in lens mapping and data storage. Paired with any SmallHD monitor running OS3, CTRL.3 displays critical lens data as overlays directly on the monitor, allowing camera assistants to pull focus and keep eyes on the image.
Ergonomic Lightweight Design
The controller features a large focus knob, flexible mounting options and an OLED display for critical lens data. Its lightweight ergonomic design makes it extremely easy to take anywhere, and a removable Canon LP-E6 battery offers up to 36 hours of continuous use.
Lens Mapping
CTRL.3 includes built-in lens mapping, which allows for auto-calibrating lenses to pre-marked focus rings and accessing configurations at any time with the touch of a button. Pre-marked rings cover multiple lenses, saving time on set from manually calibrating after every lens swap.
Pre-marked rings come in Imperial or Metric units.
SmallHD Overlays
CTRL.3 includes the lens data overlays on SmallHD monitors running OS3. Get critical follow focus information directly on your monitor including lens focal distance, focal length, iris, zoom and more.
Teradek RT App
Manage, update and configure every piece of your Teradek RT system with the Teradek RT App for iOS. Create lens maps, configure FIZ settings, perform basic camera controls, update firmware and much more all from the convenience of your smartphone or tablet.
Power Input
- Controller includes slot for a Canon LP-E6 Battery: 6.2 to 8.4 V
- USB Port: 4.75 to 9 V (maximum)
Interfaces -
Connectors
- 1 x 5-pin locking connector for Wired Mode
- 5pin serial + usb for monitor interface, wired control, USB Mini
Run/ Stop Control
- RED (Epic, Scarlet, Weapon, Raven, etc.)
- ARRI (Alexa, Amira, etc.)
- Phantom
- Sony F55
- LANC (Blackmagic, Canon C100/300/500
- Sony FS7)
Axes
- 6 total:
- knob
- slider
- zoom x/y
- rollers: a + b
Bluetooth Compatibility
- X, MDR.ACI, RT iOS App
Network -
Wireless
- Teradek RT FHSS 2.4GHz
- Bluetooth 2.4GHz
Wireless Range
- Up to 5000 ft (1500 m) line-of-sight (in
- USA/FCC mode)
- Up to 500 ft (150 m) indoors
Latency
- 2ms
Environmental -
Operating Temperature
- -4 to 122ºF (-10 to 50ºC)
Storage Temperature Range
- -40 to 185°F (-40 to 85ºC)
Certifications -
Certifications
- FCC/IC/CE
Physical -
Dimensions
- Excluding Knob & Antenna: 3 x 1.5 x 5.5" (76 x 38 x 127 mm)
- Including Knob & Antenna: 5.1 x 3.3 x 6.2" (130 x 84 x 157mm)
Weight
- 1lb 11oz (754g)
Construction
- Aerospace-grade aluminum billet
Mountability
- 4x 1/4-20 threads, 1x Arri rossette w/ M6 thread, lanyard mount
