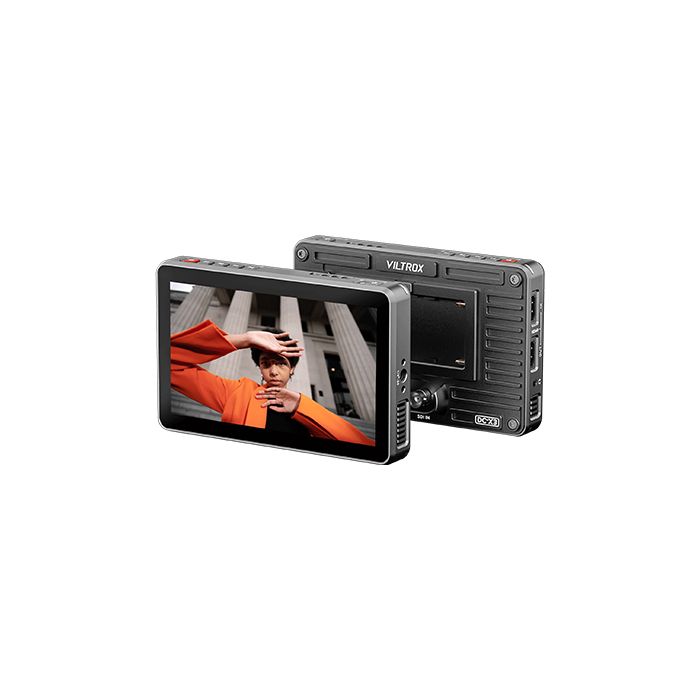

Viltrox DC-X3 6" Portable SDI / HDMI FHD Camera Monitor

The lightweight DC-X3 6" Touchscreen HDMI/SDI Monitor from Viltrox lets you view your camera's image on a bright, sharp 6" display. The DC-X3 supports up to DCI/UHD 4K30 via the HDMI and 3G-SDI video input and can send the signal to other displays through HDMI and SDI loop-through outputs. This model features multiple image tools such as histogram and waveform, and its 2000 cd/m² brightness makes it suitable for indoor or outdoor use.

The DC-X3 features a 1920 x 1080 display that supports live view from your camera, and you can monitor the audio via its built-in speaker or 3.5mm headphone port. The SD card slot or the USB port can be used to upgrade the firmware or to add custom 3D LUT files to apply to your view. At the rear of the monitor, a built-in L-series battery plate enables you to power the monitor with the L-series battery, or you can power it with a separately available DC barrel or USB-C adapter. The camera mounts onto a cage, camera, or rig using the included shoe adapter mount, and a sun hood is available to protect the monitor from glare.

Features

• Daylight-viewable, 6" on-camera LCD monitor with 1920 x 1080 resolution
• The DC-X3 features 2000 cd/m² brightness for indoor and outdoor use
• Full-size HDMI and 3G-SDI inputs, full-size HDMI and 3G-SDI loop-through outputs
• Supports up to DCI/UHD 4K30 video input and output
• Power the monitor with a separately available DC barrel or USB-C power adapter or via Sony L-series type batteries in the built-in battery plate
• Import custom 3D LUTs via a separately available SD card using the built-in slot or via USB, which can also be used for firmware updates
