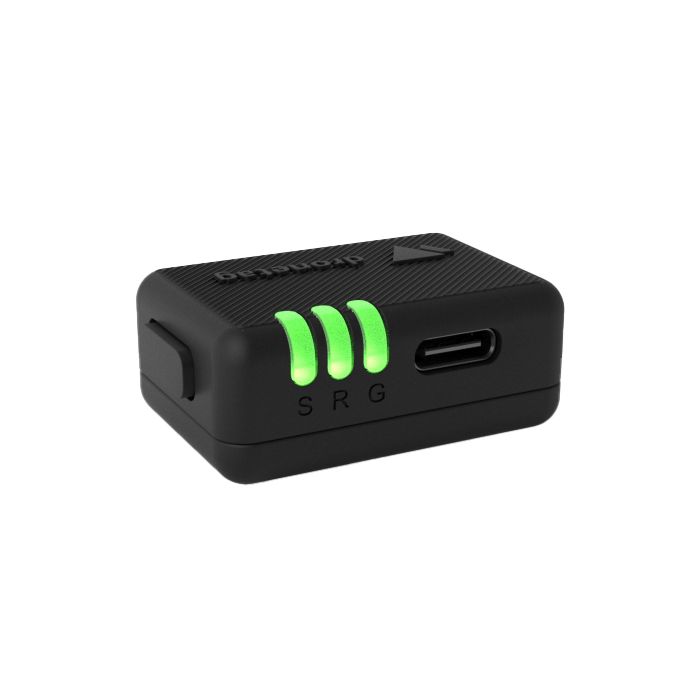

Dronetag Beacon
by DronetagEffortless way to let your drone fly safe & compliant in EU and US regions. Direct / Broadcast Remote Identification device compatible with any drone.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- 1 × Dronetag Beacon
- 1 × Micro USB cable
- 1 × Firmware recovery dongle (do not use Recovery Dongle unless we specifically ask you to do so).
- 2 × Dual Lock counterpart for drone
- 1 × Alcohol cleaning pad
- 1 × Quick start guide
Dronetag Beacon makes your drone visible for nearby air traffic participants and allows you to track it in real-time. You can attach it to any drone regardless of its manufacturer. Beacon broadcasts the position & identification data locally to comply with Direct (Broadcast) Remote ID (DRI) rules. Its transmission is standardized according to the prEN 4709-002 for EU and ASTM F3411 for the US. Dronetag Beacon was accepted by FAA as one of the first Remote ID modules - see Declaration of Compliance here.
Beacon is equipped with internal antennas, a battery that can power the device for a whole flying day, and it comes in a plastic enclosure with a reclosable 3M Dual Lock fastening mechanism. Thus it can work standalone and be quickly rotated around different drones in your fleet. An integral part of the Beacon is the Dronetag Web and Mobile app.

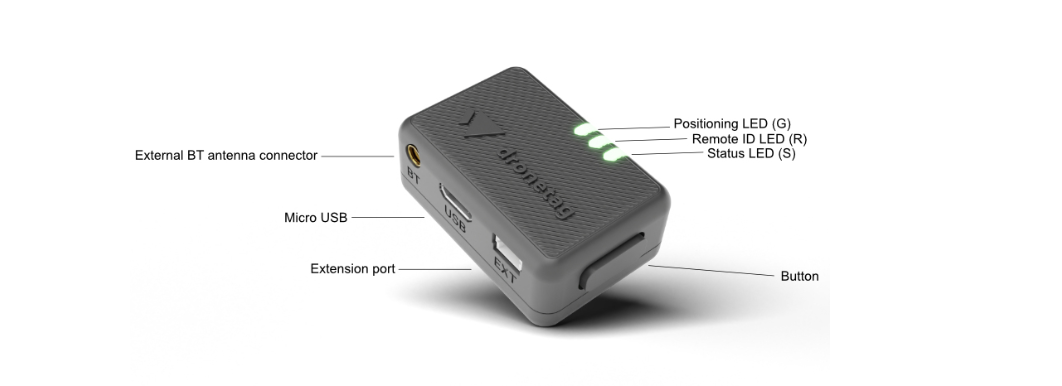

Controls
Direct / Broadcast Remote Identification
New regulations are forcing professional pilots in EU & US regions to make their drones digitally visible. We created Beacon, the add-on that makes drones instantly compliant with the latest DRI standards. Upgrade your existing drone, without the need to purchase new aircraft.
Slap the Dronetag Beacon on and instantly enhance your drone with DRI capability. The tiny device transmits the drone location via Bluetooth to up to a 3 km (1.86 miles) range.
16 Grams Packed with Technology
Dronetag Beacon is the bare minimum to fly your drone safe & compliant.
With the size of 2 chocolate bar squares (16 g / 0.56 oz) Beacon swing opens the door to the digital experience for drones of all sizes.
Everywhere, Everytime, Ever
Fit the Beacon to nanoweight drone or large UAV. Unparalleled up to 16 hours of battery life gives you enough time to accomplish the wildest missions. Reclosable dual lock fastener so strong that you can lift an average drone by it. Worldwide supported Bluetooth technology and the finest geolocation standards.
Slap on this tiny beauty and let your drone fly safe & compliant.
The sturdy 3D printed box packed with technology instantly enhances any drone with a DRI feature.
Features
All Data Snug and Secured
With over-the-air firmware updates and data encryption, your information will be safe and neatly organized in the mobile app.
Multiple geolocation standards
Receiving signals from GPS, GLONASS, Galileo and SBAS for robust and reliable positioning.
Instant Direct Remote ID upgrade
Compliant with Direct / Broadcast Remote ID according to the prEN 4709-002 and ASTM F3411 standards.
Internal Bluetooth & GNSS antennas
With an option to add external Bluetooth antennas for better signal reception.
Unparalleled up to 16 hours of battery life
Or use your drone as the power source for carefree flying without hustling to charge several devices.
Worry-free flight from take-off to landing
Beacon warns other closed-by pilots about potential dangers during take-off, landing, or when free-fall is detected.
Precise sensors onboard
GNSS position estimation, pressure altitude measurement, and motion detection via accelerometer.
MAVlink & DJI A3 support
Professional DJI and Pixhawk flight controllers integration via our EXT port to connect to drone’s flight data.
Parameter | |
Short-range radio | Bluetooth 2.4 GHz |
Sensors | GNSS, barometer, accelerometer |
Positioning | GPS L1, GLONASS L1, Galileo E1, SBAS |
Built-in antennas | Bluetooth and GNSS |
Bluetooth output power | 8dbm |
External ports | Via USB-C |
Battery | Li-Po 3.7V 200 mAh |
Battery life | 10-18 hours (depending on the configuration) |
Charging | 5V USB-C |
Charging time | 2 hours from a discharged state |
Average current consumption | 15mA |
Maximum current consumption | 100mA |
Enclosure | plastic |
Fastening mechanism | 3M Dual-lock SJ4570 |
IP rating | IP43 |
Operating temperature | -20°C to +60°C (-4°F to 140°F) |
Dimensions | 37 x 26 x 16 mm (1.4 x 1.02 x 0.6 in) |
Weight | 17 grams (0.59 oz) |
