Feelworld FW278 HDMI monitor

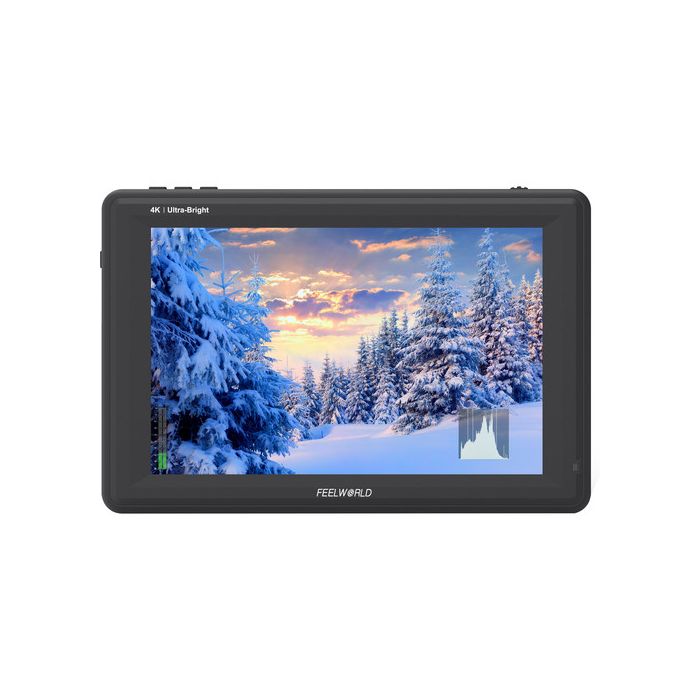

Featuring a bright 1200 cd/m² IPS LCD panel, the 7" Bright HDMI On-Camera Monitor from FeelWorld displays up to DCI 4K video. The LCD panel boasts a 1920 x 1200 resolution, 16:10 aspect ratio, 1200:1 contrast ratio, and 1200 cd/m² measured brightness for easy viewing outdoors as well as indoors. The touchscreen allows you to quickly access your settings, and the IPS LCD provides good off-axis viewing, allowing you to see the image without being directly in front of the monitor and not experiencing distorted colors or contrast. The monitor's chassis is both thin and light at about an inch thick and weighing only 1 lb.

On the side of the monitor, you'll find HDMI input and output connectors, and on the other side there is a 3.5mm headphone output, a 12 VDC 2.1mm barrel power input (with optional power adapter), and an 8.4 VDC 2.1mm barrel power output to power an optional accessory or your camera using a separately available cable or dummy battery. Along the bottom edge is the 1/4"-20 mounting thread, and the control buttons reside along the top edge of the monitor. The back of the monitor features an L-series/NP-F dual-battery plate to provide ample power.

A variety of image-evaluating tools are built into the monitor, including a histogram, false color, and zebras for checking exposure, peaking and magnification for checking focus, and markers for ensuring correct framing.

Imaging Tools

• Histogram
• Peaking focus assist (red, green, or blue highlight over parts of the image in focus)
• False color
• Zebra exposure
• Nine-grid
• Embedded audio
• Scan mode (underscan, overscan)
• Zoom (4x, 9x, 16x)
• Anamorphic mode (1.3x, 2x, 2x mag)
• Pixel-to-pixel
• Center marker
• Safe area (80, 85, 90, 93, 96%, 2.35:1)
• Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
• Marker color (red, green, blue, white, black)
• Check field (red, green, blue, mono)
• Image flip (H, V, H/V)
• Image freeze
• Color temperature adjustment

Key Features

High-resolution 1920 x 1200

High contrast of 1200:1

Ultrabright 1200 cd/m²

160° wide-view-angle IPS Panel

The dual rear battery mount is compatible with Sony L-series/NP batteries: F-970, F-960, F-950, F-930, F-770, F-750, F-730, F-570, F-550, F-530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, F-M71, F-M70 series.

Alternate power options include a 12 VDC 2.1mm barrel input (with a separately available adapter) and an 8.4 VDC 2.1mm barrel output to power your camera or accessories using an optional cable or dummy battery.

Feelworld uses the professional Rec. 709 HD color standard and is calibrated at the factory. It can achieve monitor calibration efficiently and get accurate color reproductions easily, showing the image when you shoot without distorting the color.

The menu controls are intuitive and easy to use with its touchscreen design. Two different feature buttons are programmable to the various features that you use the most.

The compact design includes 4K HDMI input/output so you can connect to 4K cameras and DSLRs, supporting resolutions up to 4K24.

The histogram is a quantitative tool to check the picture brightness.

The audio level meters provide numerical indicators and headroom levels.

The peaking filter displays a colored highlight on the screen where sharp edges appear.

Built-in selection of no-squeeze, 1.3x, or 2x allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not desqueeze in-camera.
