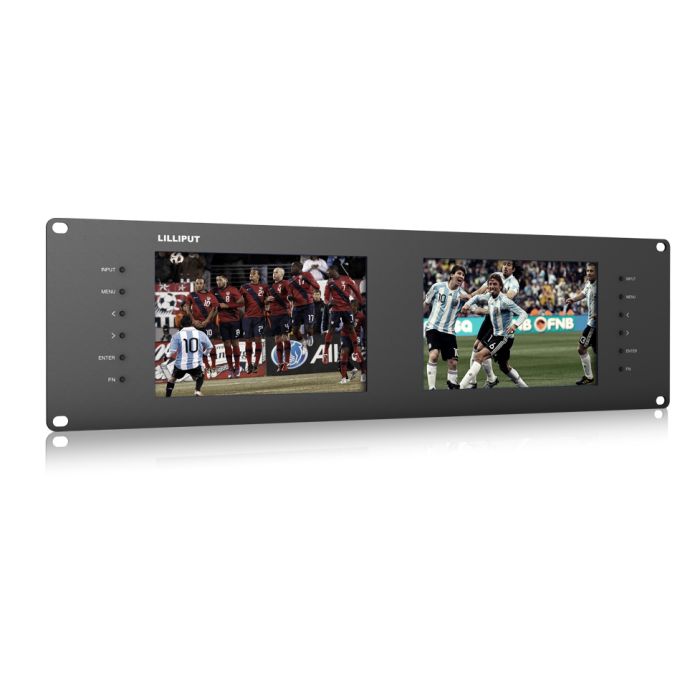

Lilliput RM-7028S Monitor
by LilliputDual 7" 3RU Rack Monitors With dual 7” IPS screens, viewing SD, HD and 3G-SDI video on 3RU rack monitor.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Dual 7" 3RU Rack Monitors With dual 7” IPS screens, viewing SD, HD and 3G-SDI video on 3RU rack monitor.
Perfect 3G-SDI Monitoring with Broadcast Quality for Live Events & Shows
Intelligent SDI Monitoring
Lilliput 7" 3RU rack monitors are the best solution for high quality SDI monitoring! They have a various of use for broadcast, on-site monitoring and live broadcast van, etc! As well as setup a video wall of rack monitors in control room and see all the scenes.
A rack for a customized monitoring solution also can be supported for viewing images displays from different angles.
Perfect Dual Monitoring
Because of better filtering and scaling advantages, Lilliput's 3RU rack monitors are really suitable for broadcast quality monitoring system. With high quality SD, HD & 3G-SDI inputs, make sure that precise color can be controlled under multiple displays conveniently. Highly integrated Tally port and Tally description, which are ideal for large broadcast systems.
Smart Ethernet Control
Using laptop, Mac or PC to set and adjust each monitor easily with relevant softwares via Ethernet network.
Excellent Display & Design
Lilliput's dual 7" rack monitors feature two attractive IPS panels, which with 1280x800 high resolution, 178° wide viewing angles, high brightness & contrast, and faster response time; that providing excellent viewing experience. Metal & thin housing design is also welcomed by live events and shows.
DISPLAY
|
Panel | Dual 7" IPS |
---|---|---|
Physical Resolution | 1280×800, support up to 1920×1080 | |
Aspect Ratio | 16:10 | |
Brightness | 400cd/㎡ | |
Contrast | 800:1 | |
Viewing Angle | 178°/178°(H/V) | |
INPUT
|
3G-SDI | 1×2 |
HDMI | 1×2 | |
YPbPr | 3(BNC)×2 | |
Composite | 1×2 | |
TALLY | 1×2 | |
LAN | 1 | |
USB 2.0 | 1(mini) | |
OUTPUT
|
3G-SDI | 1×2 |
HDMI | 1×2 | |
YPbPr | 3(BNC)×2 | |
Composite | 1×2 | |
POWER
|
Current | 1500mA |
Input Voltage | DC 7-24V | |
Power Consumption | ≤18W | |
ENVIRONMENT
|
Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ | |
DIMENSION
|
Dimension(LWD) | 482.5×133.5×25.3mm |
Weight | 2885g |
